GMX200 Wind Speed & Direction Sensor with Compass

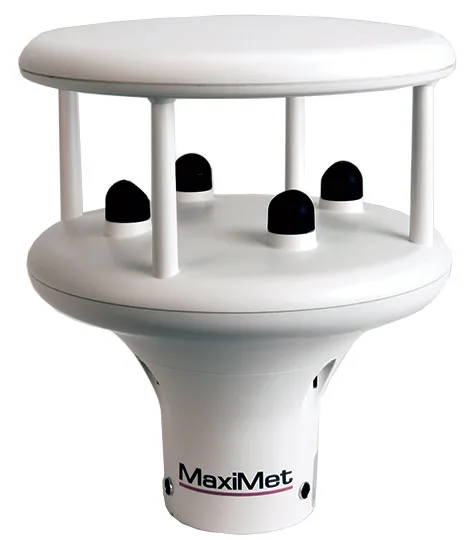

The MaxiMet GMX200 is an ultrasonic wind speed and direction sensor with an electronic compass. This enables the unit to provide apparent wind measurements, average speed and direction together with WMO averages and gust data is also provided. The optional GPS also provide compensated wind speed and direction readings, making the instrument ideal for wind monitoring on vehicle and vessels. The data is output in serial formats – RS232, RS485. SDI12, NMEA and MODBUS.

Need help finding the right product?

Downloads

GMX200 Weather Station

Maximet Accessories

Description

Description

Wind

Relative Wind Speed & Direction. Relative to the North Marker
Average Wind Speed & Direction. Short and Long Term Averages
Corrected Wind. Corrected to Magnetic North
True Wind & Direction. Corrected by GPS (Option)
Gust Speed & Direction (WMO)
Corrected Gust Speed & Direction (WMO) (Requires GPS)

GPS (Option)

GPS Location (Longitude, Latitude)
GPS Height
Real Time Clock
GPS Heading
GPS Speed
GPS Status

Inclinometer/Compass

Compass Reading (0-359° Magnetic North)
X -Tilt. +ve East, -ve West
Y -Tilt. +ve North, -ve South
Z Orientation, +1 Normal Upright, -1 Inverted Position
X & Y Can Provide 2 Decimal Points for Easy Installation.

Additional Parameters

Twilight. (Civil, Nautical and Astronomical)
Time of Sunrise, Solar Noon, Sunset (Location Required)
Position of the Sun
Supply Voltage
System Status
System Time and Date (RTC with GPS Option)
Custom User Information (up to 16 character)

Parameter Specifications

Parameter	Range	Resolution	Accuracy	Units of Measure
Wind Speed	0-60m/s	0.01m/s	0.3m/s (0-10m/s) 3% (10-40m/s) 5% (40/60m/s)	m/s, Km/h, mph, kts, ft/min
Wind Direction	0-360°	1°	±3° (0.5-40m/s) ±5° (40-60m/s)	Degrees
Compass	0-360°	1°	±3°	Degrees

GMX200 Specifications

Output Rate:	1Hz, 1 reading per minute, 1 Reading per hour, or Polled Mode
Digital Comms:	RS232, RS485, RS422, SDI-12, NMEA, Modbus, ASCII
Power Supply:	5-30vDC
Consumption:	22mA (GPS +10mA)
IP Rating:	IP66
Operational Temperature Range:	-35 to +70°C
CE Marking:	Yes

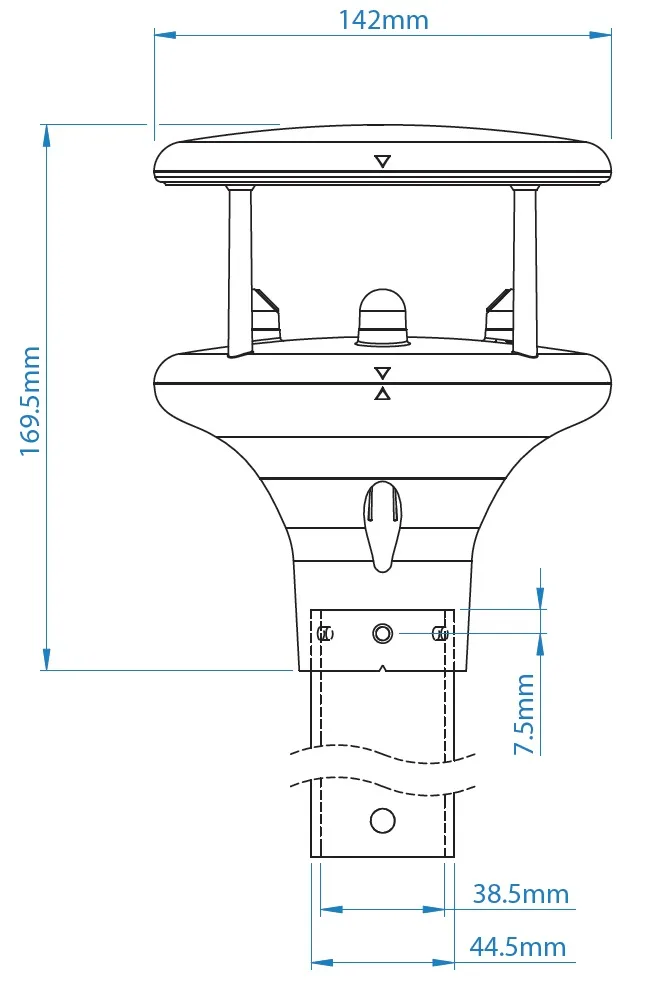

Dimensions:	169.5 x 142 x 142mm
Weight:	0.5Kg
Origin:	UK
Warranty:	24 Months

Associated Research Paper

The University of Texas, USA - Predicting the downwind concentration of a pollutant

Product

Ref

Price

Product Description

1957-0200-60-000

£1,262.00

MaxiMet GMX200 ultrasonic wind speed and direction sensor with an electronic compass. Measures wind speed and direction WMO wind averages and gusts. Serial data output – RS232, RS485. SDI12, NMEA and MODBUS.

1957-0200-60-100

£1,468.00

MaxiMet GMX200 ultrasonic wind speed and direction sensor with an electronic compass and GPS Measures wind speed and direction WMO wind averages and gusts. True and apparent wind. Height above sea level . Sunrise/sunset. Position of the sun. Twilight. MSL pressure. Serial data output – RS232, RS485. SDI12, NMEA and MODBUS.

1957-10-065

£130.00

MaxiMet 1.8 Metre RS232 to USB converter including 5vDC power and communication configuration cable (9 way MaxiMet connector fitted one end and USB connector at the other end). Simplifies the connection of the MaxiMet units to a PC

1771-PK-115

£286.00

Anodized Aluminium Bracket for mounting to pole and wall. Includes an aluminium sensor adaptor for WindSonic or MaxiMet, fully anodised to reduce corrosion. The Bracket uses a mounting clamp suitable for attaching to a vertical pipe with a diameter of 30-58mm. When mounting the MaxiMet, consider the position, orientation and alignment of the unit. Mount at the top of a pipe to ensure a clear unobstructed measurement view. Kit includes stainless steel mounting bolts, multiple earth points and wall / pole mounting kit

M-TPB

£155.82

Weather station tripod mounting kit with 2m pole. The legs on this tripod are not adjustable for uneven surfaces and ground should be levelled prior to installation. ¼” stake kit (M-SKB), ½” Stake kit (M-SKA), Guy wire kit (M-GWA) and Grounding kit (M-GKA) are available separately.

M-GWA

£114.16

M-GWA Guy Wire Kit for the M-TPA or M-TPB tripods. Can be secured to Stakes spaced around the 2m tripod at a distance of 3 or 4 m, or to the tripod legs of the 3m tripod. This helps secure the tripod in place and reduces any movement due to wind.

M-SKA

£70.81

M-SKA Stake Kit for the M-TPB tripod. Allows the Guy Wires to be secured to Stakes spaced evenly around the tripod at a distanced of 3 to 4m. Stake Kit includes 3 x ½” Stakes and S-Hooks.

WINDSONIC-MOUNT

£41.50

Mounting adaptor for connecting the WindSonic wind sensors or MaxiMet compact weather stations to the M-TPB tripod. Provides a direct mounting to the top of the tripod for an unobstructed placement of the mounted sensors.
