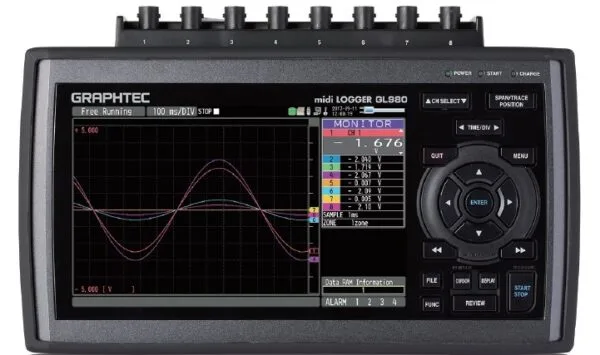

GL980 data logger with 7″ wide TFT colour LCD with waveform or digital options. 8 channel, isolated input channels for voltage (Ranges: 0-20mV up to 0-500V), thermocouple (Type: K, J, E, T, R, S, B, N or W), humidity (via B-513), logic and pulse inputs using BNC or screw terminals. Power Supply: 100-240vAC, 8.5-24vDC or internal battery pack (B-569 x 2, 7,2vDC @ 2900mAh). Internal built-in RAM (4 million samples/channel), 4GB Flash memory and SDHC memory ports suitable for up to 32GB. Operating environment: 0 to 40°C, 5 to 85%RH. Includes software and cables. Web server access, FTP backup and NTP clock synchronisation.
£4,295.00
| Number of Analog Inputs | 8 Channels |
|
Measurement Ranges
|
mV: 20, 50, 100, 250, 500mV. (RMS: 10, 25, 50, 100, 250, 500mV RMS) V: 1, 2, 5, 10, 20, 50, 100, 200, 500V and 1-5V FS. (RMS: 1, 2.5, 5, 10, 25, 50, 100, 250V RMS) Temperature: Thermocouples K, J, E, T, R, S, B, N, W Humidity: 0-100%RH, (using optional sensor, B-530). |
| Input Terminals | Isolated BNC connector and Screw Terminals (M3, 5 screw) |
| Sampling Interval | 1, 2, 5, 10, 20, 50, 100, 200, 500µs. 1, 2, 5, 10, 20, 50, 100, 200, 500ms. 1, 2, 5, 10, 20, 30 Sec, 1 Min. 1µs to 1 min with internal RAM, 1ms to 1 min using other storage. |
| PC Interface | USB 2.0 Type B Connector, Ethernet, web server, FTP, NTP or DHCP Client functions. |
| Scaling Functions | Measured value can be converted to the specified engineering unit • Analog voltage: Converts using four reference points (gain, offset) • Temperature: Converts using two reference points (offset) • Pulse count: Converts using two reference points (gain) |
| Display | 7″ wide TFT colour LCD.
Waveform in Y-T with digital values, Waveform only, Digital value, Digital values |
| External Dimensions | 260 x 161 x 83mm (with the cover) |
| Weight | 1.7Kg (with cover but excluding AC adapter and battery) |
