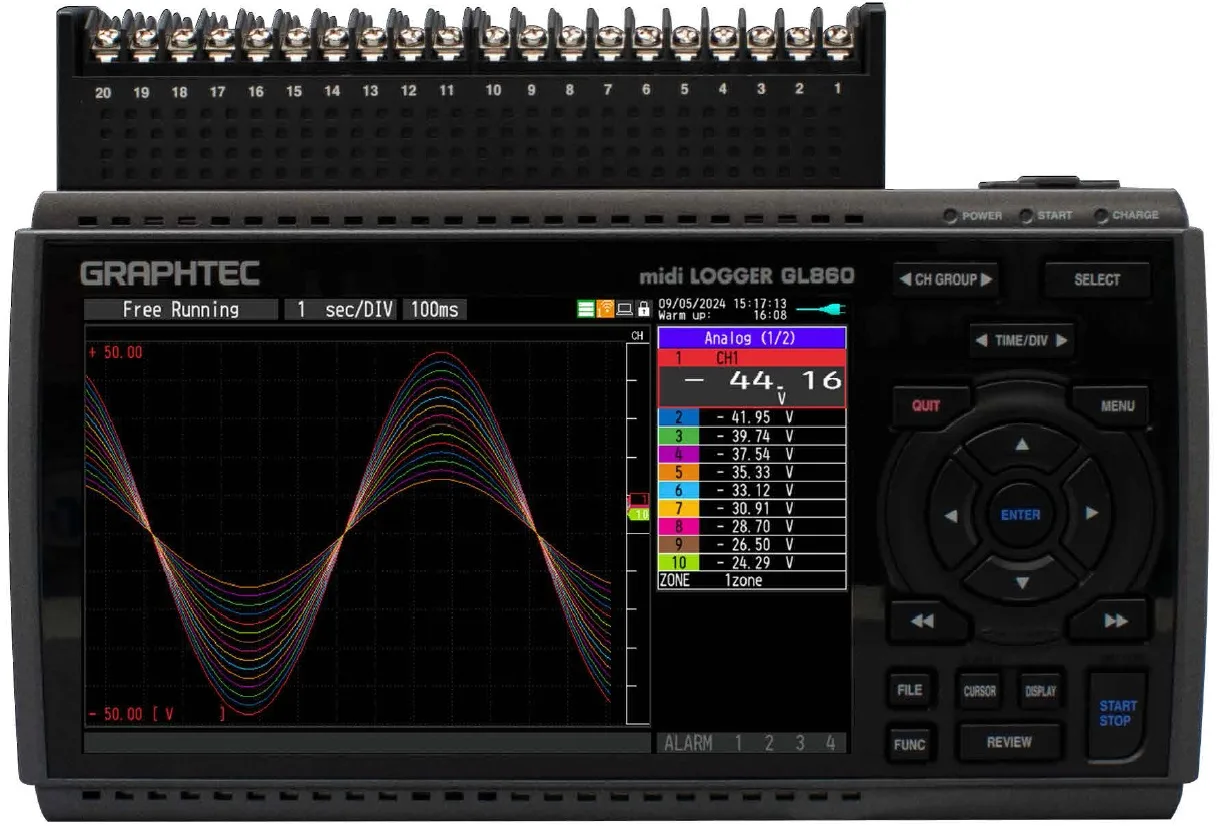

GL860 Data Logger

Description

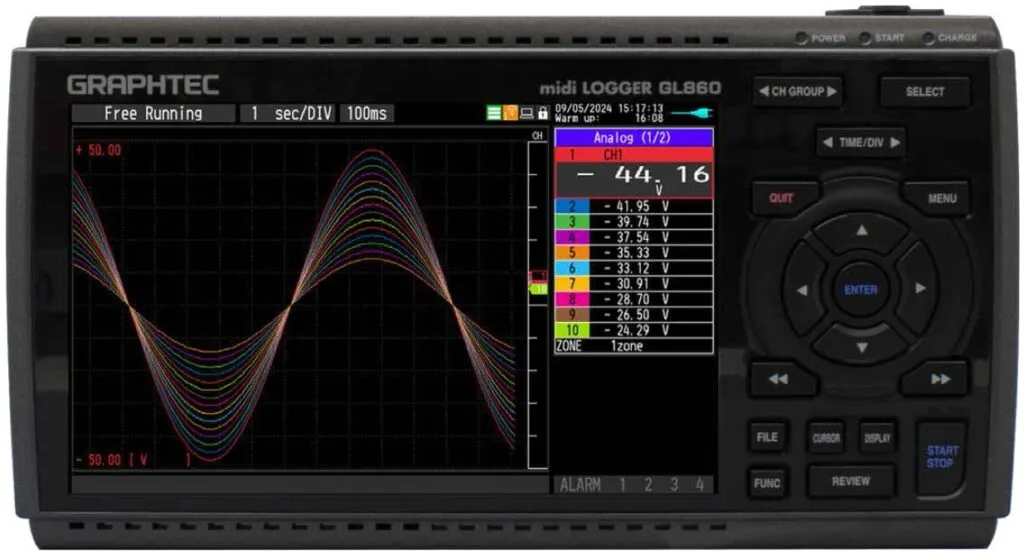

The Graphtec GL860 is a versatile, high-capacity isolated multi-channel data logger designed for high-precision monitoring of voltage, temperature, and humidity. Serving as the advanced successor to the GL840 series, the GL860 features a vibrant 7-inch wide colour display and an upgraded 8GB internal flash memory, doubling the storage of previous models. Its unique modular architecture allows users to expand from 20 channels up to 200 channels, with four interchangeable terminal options including the B-565 high-voltage terminal for CAT II 300V environments and RTD support. With a maximum sampling rate of 5ms and integrated G-REMOTE cloud connectivity, the GL860 is the premier choice for complex R&D projects, Electric Vehicle (EV) battery testing, and large-scale industrial process validation.

Features

  • Expandable Channels: Start with 20 or 30 channels and expand up to 200 using additional terminals.
  • High-Voltage High-Precision Terminal (B-565)

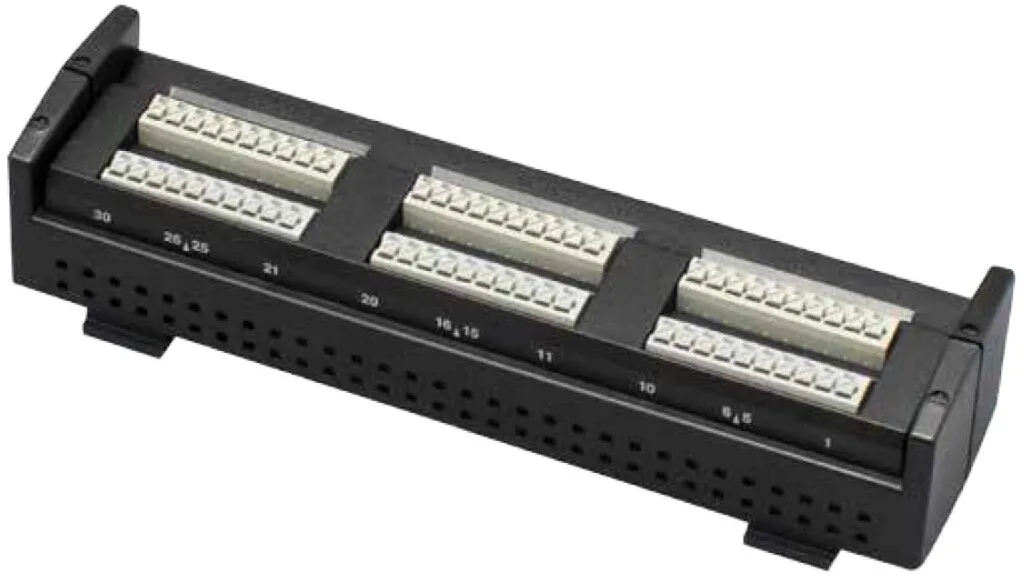

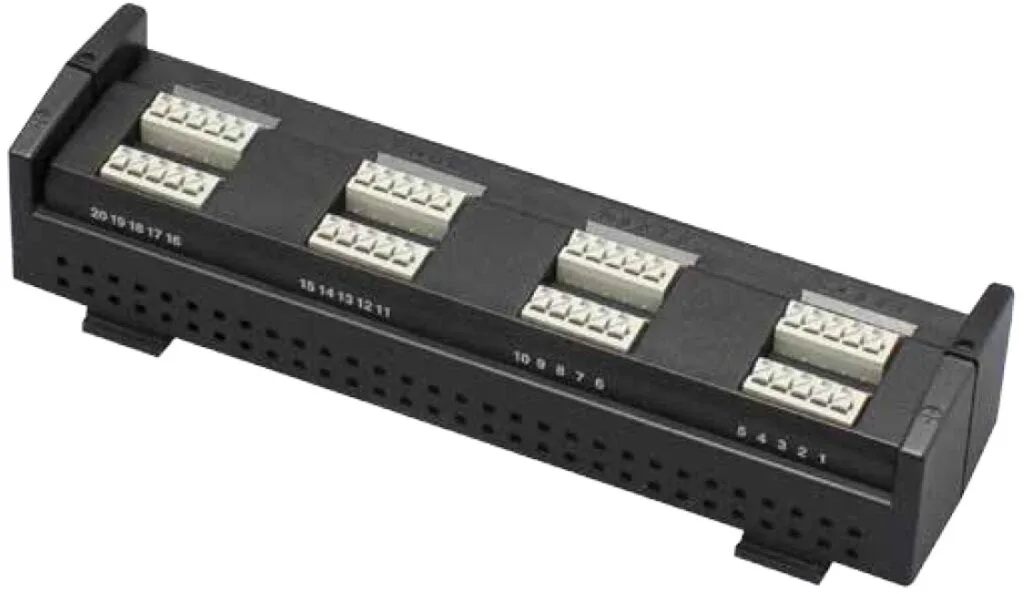

  • Screwless Input Terminals (B-563SL) for quicker connections.
  • Improved Sampling Speed: Record data at intervals as fast as 5ms, doubling the speed of previous models.
  • G-REMOTE Service: Enables remote control and monitoring through a web browser, with cloud storage options available.
  • Memory Loop Function: Automatically deletes the oldest data when memory capacity is reached, ensuring continuous recording.
  • Channel Copy Function: Easily replicate settings across channels to reduce setup time.
  • Inter-Channel Operations: Perform calculations between channels without occupying analog inputs.

Specifications

Number of Analog Inputs 20 Channels, expandable up to 200 channels
Measurement Ranges 20mV up to 100V.
Thermocouples K, J, E, T, R, S, B, N and C (old: W(WRe5-26))
3-Wire PT100 or PT1000 RTD Sensors
Humidity: 0-100%, with optional sensor, B-530).
Scan Speed 5ms to 1 hour (10ms to 50ms: voltage only). Minimum interval per channel.
PC Interface USB 2.0, WLAN (using B-568 option)
Scaling Functions Measured value can be converted to the specified engineering unit
• Analog voltage: Converts using four reference points (gain, offset)
• Temperature: Converts using two reference points (offset)
• Pulse count: Converts using two reference points (gain)
Display 7″ wide TFT colour LCD.
Waveform in Y-T with digital values, Waveform only, Digital value, Digital values and statistics values
Display Language English, French, German, Chinese, Korean, Russian, Spanish, Japanese.
Operating Environment 0-45°C, 5-85%RH. (0 to 40°C with battery pack, 15 to 35°C when charging)
Power Consumption Max 38VA



The Graphtec GL860 is supplied as a high-performance “Main Body” logger to provide maximum flexibility for diverse engineering requirements. Unlike fixed-channel units, the GL860 requires the separate purchase of at least one input terminal block to function. This modular approach allows you to tailor the logger specifically to your data acquisition needs—whether you require the standard B-563 terminal for general purpose logging, the B-563SL screwless terminal for rapid high-density wiring, or the high-voltage B-565 terminal for CAT II 300V safety and RTD (Pt100/1000) support. By selecting the terminal that matches your sensor types, you ensure a cost-effective and precise measurement solution without paying for redundant hardware.
