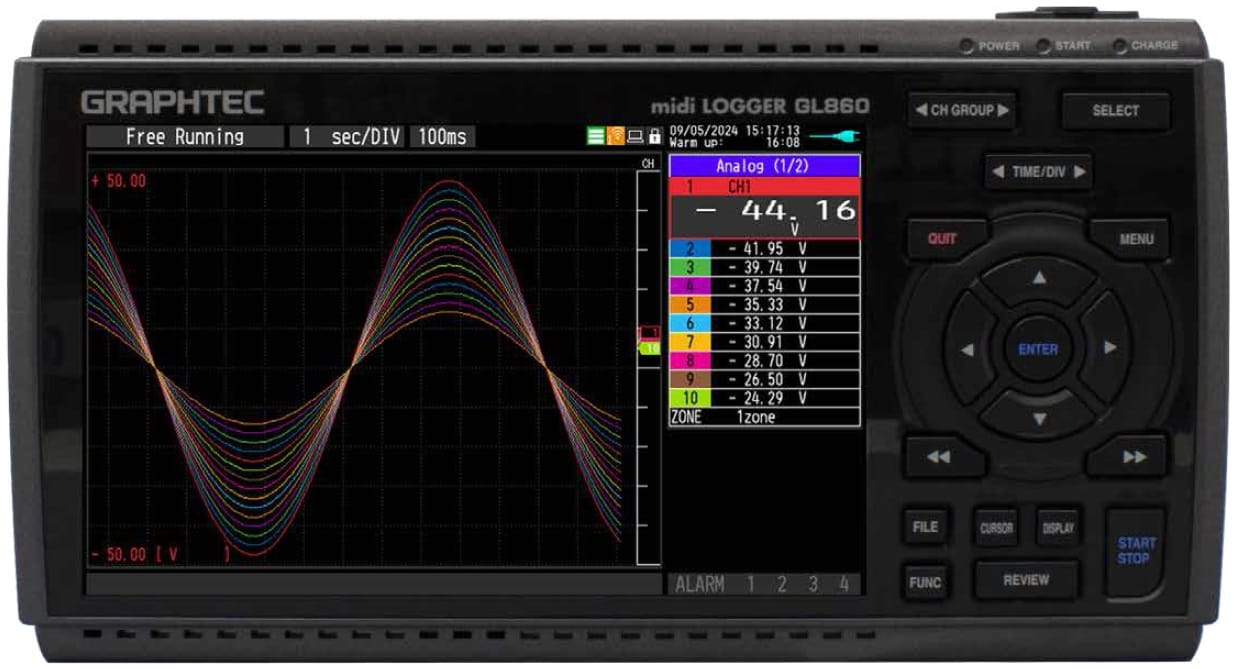

GL860 Data Logger

Description

The GL860 Data Logger is a versatile, isolated multi-channel data logger designed for high-precision measurements across various applications. It supports up to 200 channels and features advanced capabilities for monitoring voltage, temperature, and humidity.

Key Features

  • Expandable Channels: Start with 20 or 30 channels and expand up to 200 using additional terminals.
  • High-Voltage High-Precision Terminal (B-565)
  • Screwless Input Terminals (B-563SL) for quicker connections.
  • Improved Sampling Speed: Record data at intervals as fast as 5ms, doubling the speed of previous models.
  • G-REMOTE Service: Enables remote control and monitoring through a web browser, with cloud storage options available.
  • Memory Loop Function: Automatically deletes the oldest data when memory capacity is reached, ensuring continuous recording.
  • Channel Copy Function: Easily replicate settings across channels to reduce setup time.
  • Inter-Channel Operations: Perform calculations between channels without occupying analog inputs.

Specifications

Number of Analog Inputs 20 Channels, expandable up to 200 channels
Measurement Ranges 20mV up to 100V.
Thermocouples K, J, E, T, R, S, B, N and C (old: W(WRe5-26))
3-Wire PT100 or PT1000 RTD Sensors
Humidity: 0-100%, with optional sensor, B-530).
Scan Speed 5ms to 1 hour (10ms to 50ms: voltage only). Minimum interval per channel.
PC Interface USB 2.0, WLAN (using B-568 option)
Scaling Functions Measured value can be converted to the specified engineering unit
• Analog voltage: Converts using four reference points (gain, offset)
• Temperature: Converts using two reference points (offset)
• Pulse count: Converts using two reference points (gain)
Display 7″ wide TFT colour LCD.
Waveform in Y-T with digital values, Waveform only, Digital value, Digital values and statistics values
Display Language English, French, German, Chinese, Korean, Russian, Spanish, Japanese.

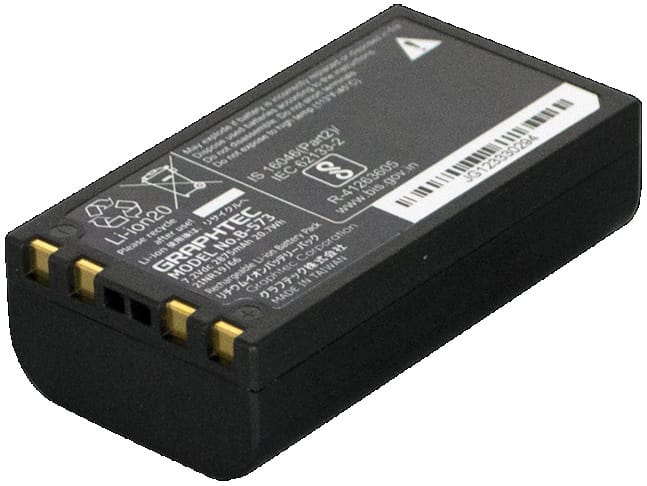

Operating Environment 0-45°C, 5-85%RH. (0 to 40°C with battery pack, 15 to 35°C when charging)
Power Consumption Max 38VA

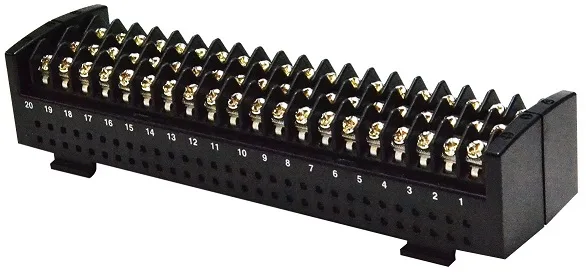

Choosing the Right Input Terminal for Your GL860

Because the GL860 is a modular system, the input terminal you select defines the accuracy, safety, and sensor compatibility of your logger. Use the table below to identify which terminal meets your specific technical requirements:

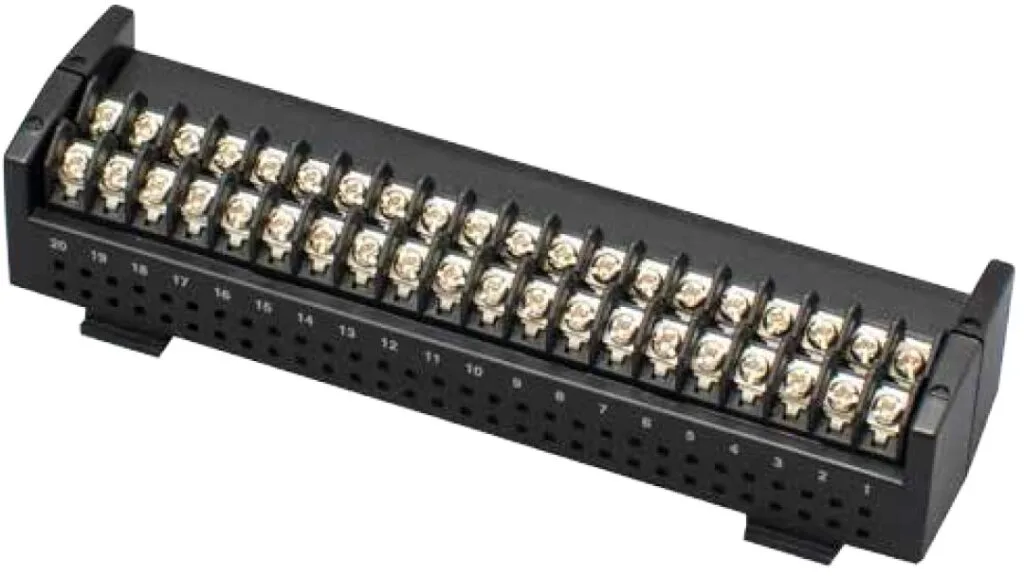

Feature B-563 (Standard) B-563SL (Screwless) B-563SL-30 (30CH) B-565 (High Withstand)
Channel Count 20 Channels 20 Channels 30 Channels 20 Channels
Terminal Type M3 Screw Push-in Screwless Push-in Screwless M3 Screw
Voltage Range 20mV to 100V 20mV to 100V 20mV to 100V 20mV to 100V
Thermocouples K, J, E, T, R, S, B, N, C K, J, E, T, R, S, B, N, C K, J, E, T, R, S, B, N, C K, J, E, T, R, S, B, N, C
RTD Support No No No Yes (PT100/1000)
Max Voltage (GND) 60Vp-p 60Vp-p 60Vp-p 300Vp-p (CAT II)
Best For: General Purpose Fast Setup / Wiring High-Density Logging EV Battery / RTDs
