Description

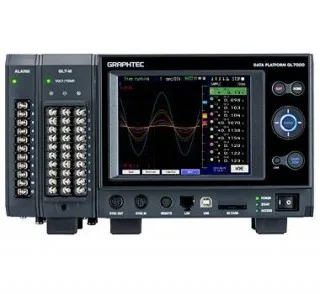

The GL7000 Data Logger is a modular system, which allows for expansion of input channels and for synchronizing several machine back to a single control. Additional modules fit onto your existing unit to provide additional inputs that will suit different applications. It is also possible to mix measurements by adding different types of modules. Modules currently available allow for Voltage, High Voltage Voltage/Temperature, High Speed Voltage, Strain Gauge, Piezoelectric devices module and Logic/Pulse inputs, plus additional modules will be released in the future to allow for other inputs. A Voltage Output module is also currently available.

Up to 10 amplifier modules can be attached for multi-channel measurements, with up to 112 channels on one GL7000.

Each amplifier module contains a 2GB RAM that allows the GL7000 to maintain the sampling speed, even when additional modules are added (high-speed voltage and logic/pulse modules are limited by the recording medium).

Features

• Modular system allows expansion of measurements, channels and internal memory
• 10 channel alarm module included with each GL7000
• Suitable for a variety of measurements by different type of amplifier

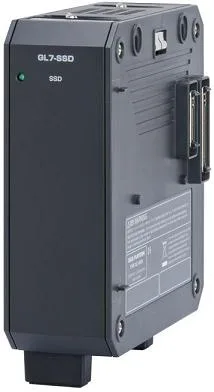

• Multiple storage options for reliable long term measurement

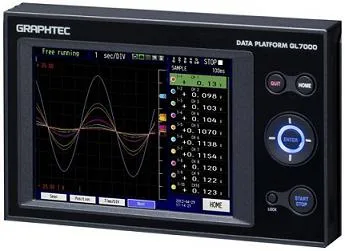

• Easy operation via optional 5.7″ HD touchscreen display
• Display is detachable and can be remotely mounted via LAN cable (max 5m direct connection)
• Supports stand-alone operation and embedding into a system
• High performance GL-Connection software included with each GL7000

Available Modules

Additional modules will be added once available.

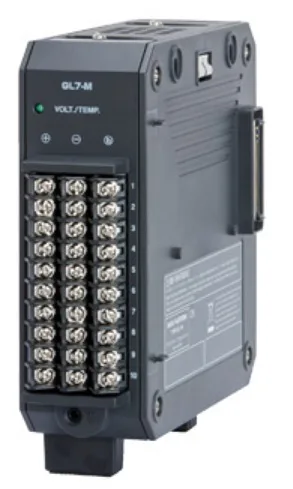

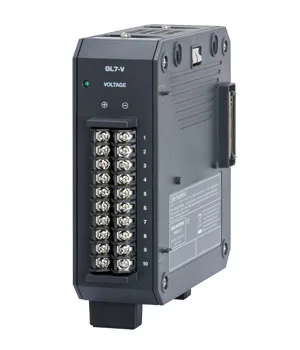

	Voltage Module – GL7-V The output of various sensors such as displacement, pressure, wind speed, etc. Cell voltage of the battery.		Voltage/Temperature Module – GL7-M Measuring temperature and voltage simultaneously. For environmental tests, etc.

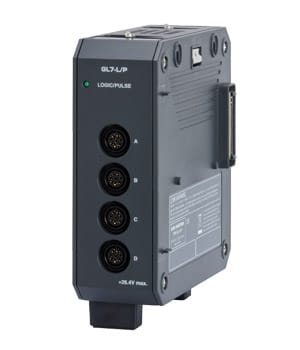

	High Speed Voltage Module – GL7-HSV Measurement of parameters in the inverter system, vibration test, drop test, etc.		Logic/Pulse Module – GL7-LP Timing of system control signal, encoder output, rotational speed, flow rate, etc.

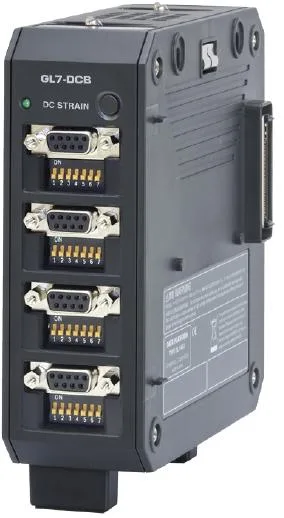

	High Voltage Module – GL7-HV Measurement of the high voltage in the power line of equipment, Electric or Hybrid Vehicle testing, etc.		Strain Gauge Module – GL7-DCB Measuring the output of sensor using the strain gauge. Measurement of the load, displacement, vibration, acceleration, torque, pressure, etc

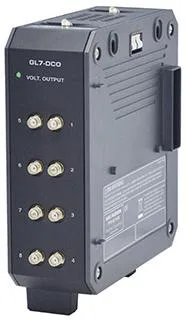

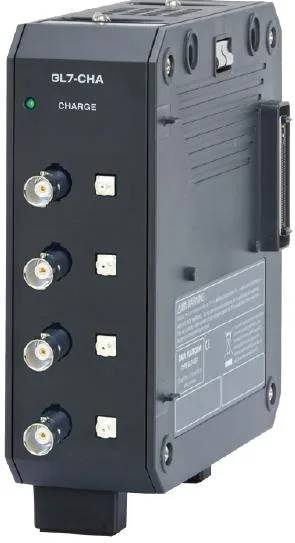

	Charge Module – GL7-CHA Measuring the output of sensor using the Piezoelectric device. Measurement of the vibration, acceleration, pressure, force, etc.		Voltage Output Module – GL7-DCO An analog voltage corresponding to the captured data is output. Simulation testing by the actual measured data, the vibration test, etc.

System Design

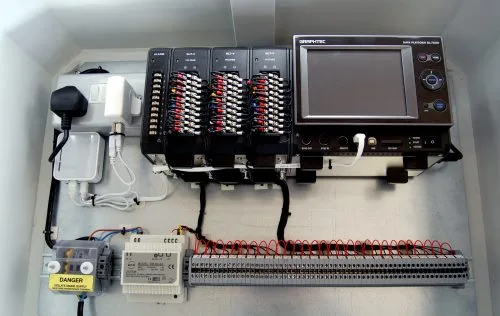

Our experienced engineers can work with you from the start of your project, right to the end by supplying you a pre-wired, out of the box and ready to use system.  We have extensive experience in supplying Graphtec data loggers in small to large enclosures, fixed or portable, with pre-wired connectors, terminals and labelling.
