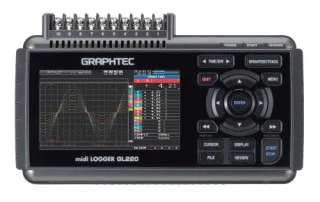

The GL220 is the next generation midi logger following on from the success of the GL200 & GL200A models. With 10 fully isolated multi-function inputs, large internal 2GB Flash memory and a port for an external USB stick memory, this logger has significantly more memory than it predecessors. The USB memory stick can also be exchanged during logging without any lost of data.
Features
Â
GL220 data logger fitted in a Peli case
with mains and battery power supply and
connectors for external sensors etc.
| Number of analog inputs | 10 Channels |
|
Measurement ranges
|
mV: 20, 50, 100, 200, 500mV.
V: 1, 2, 5, 10, 20, 50V Temperature: Thermocouples K, J, E, T, R, S, B, N, W Humidity: 0-100%, with optional sensor. |
| Filter | Off, 2, 5, 10, 20, 40
Filter operation is on a moving average basis |
| Scan Speed | 10ms (1 Channel max) to 1s (10 Channels max) |
| Pulse/Logic input | Pulse input:1 channel / Logic input: 1 channel |
| PC Interface | USB 2.0 |
| Internal Memory | 2GB non volatile. |
| Search Functions | Search the captured data for the required number of points |
| Scaling Functions | 4 points can be set for each channel |
| Display | Waveform + Digital Screen. 4.3″ WQVGA TFT colour LCD. |
| A/D Converter | 16 bits (effective resolution; about 1/40,000 of range) |
| Maximum input voltage | Between +/- terminals: 60Vp-p, between input terminals & casing 60Vp-p |
| Input Resistance | 1MΩ +/-5% |
| Withstand Voltage | Between each input channel & main unit chassis, also between each CH’s: 1 minute at 350Vp-p |
| Operating Environment | 0-40°C, 5-85%RH with battery operation. |
| Power Consumption | 28VA or lower (AC drive) |
| External Dimensions | 194 x 117 x 42mm |
| Weight | 520g (excluding AC adapter and battery) |
If you are interested in hiring this unit, please contact us to discuss your requirements.
