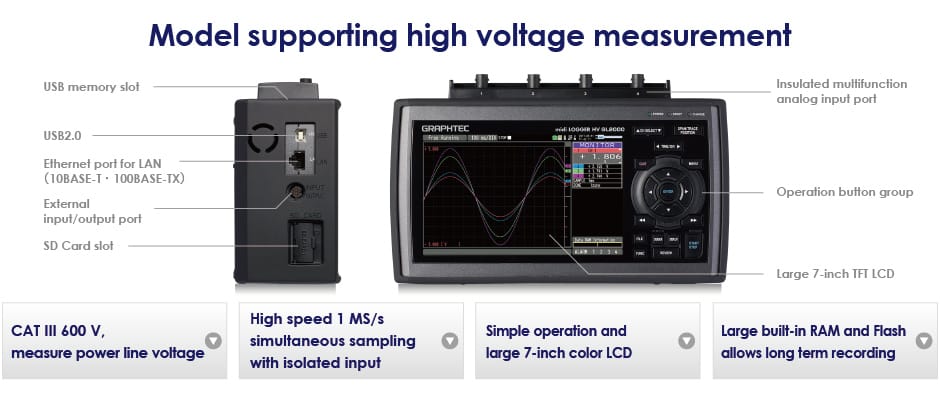

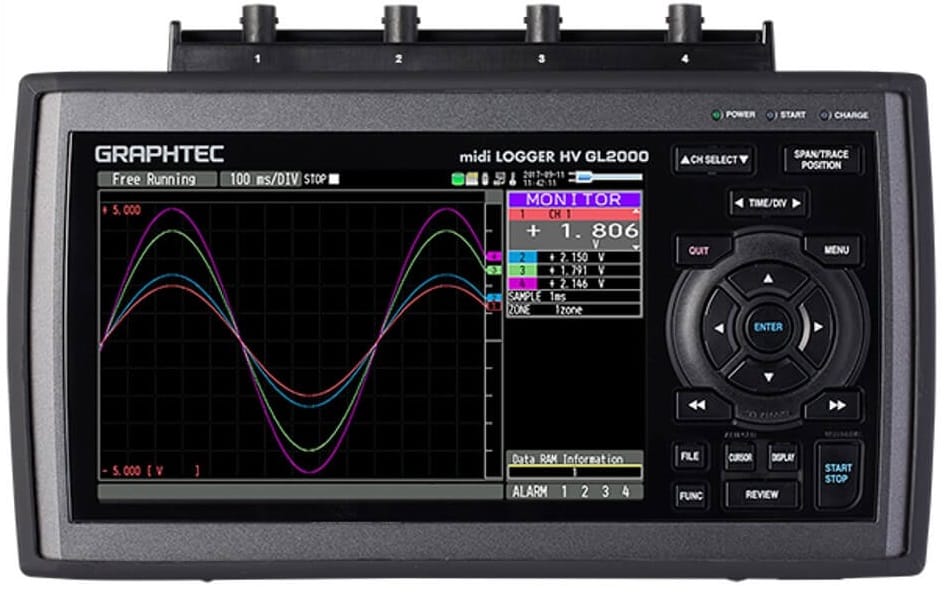

The GL2000 is a 4 channel standalone data logger suitable for high voltage and true RMS monitoring. The logger has 4 channels capable of logging AC voltages up to 1000V (CAT III up to 600vAC). Analogue inputs are also suitable for use with K, J, E, T, R, S, B, N and W Type Thermocouples. The GL2000 comes with a wide 7″ wide TFT colour LCD with waveform or digital options. The SD card slot allows for up to 32GB SDHC memory cards with the built-in USB port allows data transfer to a PC or laptop and Ethernet port allows for connection to a LAN. The GL2000 also allows FTP server functions and NTP synchronization with the Ethernet or WLAN ports. Emails may also be sent to send information when alarms occur, or alerts for power, comms or memory issues.
| Number of Analog Inputs | 4 Channels |
|
Measurement Ranges
|
mV: 20, 50, 100, 250, 500mV. (RMS: 10, 25, 50, 100, 250, 500mV RMS) V: 1, 2, 5, 10, 20, 50, 100, 200, 500 and 1,000V and 1-5V FS. (RMS: 1, 2.5, 5, 10, 25, 50, 100, 250, 500V RMS) Temperature: Thermocouples K, J, E, T, R, S, B, N, W Humidity: 0-100%RH, (using optional sensor, B-530). |
| Input Terminals | Isolated BNC connector and Screw Terminals (M3, 5 screw) |
| Sampling Interval | 1, 2, 5, 10, 20, 50, 100, 200, 500µs. 1, 2, 5, 10, 20, 50, 100, 200, 500ms. 1, 2, 5, 10, 20, 30 Sec, 1 Min. 1µs to 1 min with internal RAM, 1ms to 1 min using other storage. |
| PC Interface | USB 2.0 Type B Connector |
| Scaling Functions | Measured value can be converted to the specified engineering unit • Analog voltage: Converts using four reference points (gain, offset) • Temperature: Converts using two reference points (offset) • Pulse count: Converts using two reference points (gain) |
| Display | 7″ wide TFT colour LCD.
Waveform in Y-T with digital values, Waveform only, Digital value, Digital values |
| External Dimensions | 260 x 161 x 83mm (with the cover) |
| Weight | 1.7Kg (with cover but excluding AC adapter and battery) |
GL2000
£2,995.00
B-569
£185.50
B-530
£450.00
B-514
£65.00

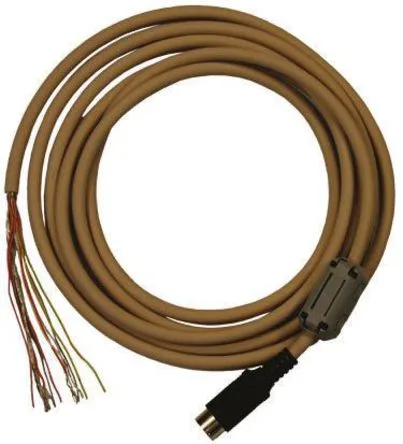

B-513
£110.00
