GL2000 Data Logger

Description

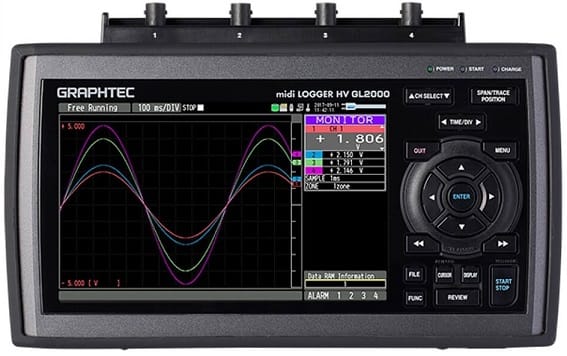

GL2000 Data Logger

Features

  • 4 channel high speed simultaneous sampling
  • CAT III 600V compatible
  • Measures AC 600V Measurement with True RMS
  • 7″ wide TFT colour LCD display with waveform or digital form option
  • Easy to use keypad menu system
  • SD Memory Card Slots (Suitable for up to 32GB SDHC Type memory cards
  • 4GB Internal Memory
  • Optional battery for measurement in remote areas.
  • Record data directly to USB data stick
  • Free software to review / analyse data.



Specifications

Number of Analog Inputs 4 Channels


Measurement Ranges



 mV: 20, 50, 100, 250, 500mV. (RMS: 10, 25, 50, 100, 250, 500mV RMS)
V: 1, 2, 5, 10, 20, 50, 100, 200, 500 and 1,000V and 1-5V FS.
(RMS: 1, 2.5, 5, 10, 25, 50, 100, 250, 500, 1,000V RMS)
Temperature: Thermocouples K, J, E, T, R, S, B, N, W

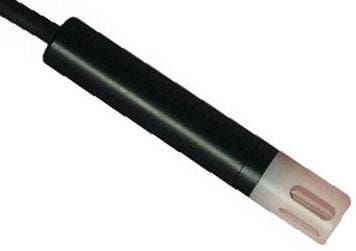

Humidity: 0-100%RH, (using optional sensor, B-530).
Input Terminals Isolated BNC connector and Screw Terminals (M3, 5 screw)
Sampling Interval 1, 2, 5, 10, 20, 50, 100, 200, 500µs. 1, 2, 5, 10, 20, 50, 100, 200, 500ms. 1, 2, 5, 10, 20, 30 Sec, 1 Min.
1µs to 1 min with internal RAM, 1ms to 1 min using other storage.
PC Interface USB 2.0 Type B Connector
Scaling Functions Measured value can be converted to the specified engineering unit
• Analog voltage: Converts using four reference points (gain, offset)
• Temperature: Converts using two reference points (offset)
• Pulse count: Converts using two reference points (gain)
Display 7″ wide TFT colour LCD.

Waveform in Y-T with digital values, Waveform only, Digital value, Digital values
and statistics values
External Dimensions 260 x 161 x 83mm (with the cover)
Weight 1.7Kg (with cover but excluding AC adapter and battery)
