Diaphragm Gas Meter

G4 Diaphragm Gas Flow Meter – MID Approved

VuGas G1.6 / G2.5 / G4 diaphragm gas meters are suitable for a variety of applications including secondary metering of natural gas, town gas, propane/butane – available in sizes 3/4ƒ? to 1 1/4ƒ?. All meter s are EN1359, MID and OIML approved

View Options

Need help finding the right product?

CONTACT US

Downloads

Datasheet

G4 Gas Meter

Description

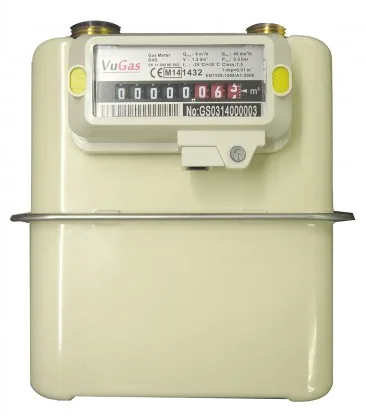

1″ G4 Diaphragm gas meter, complete with 3/4″ unions, pulse output option

  • Qmax 6 m³/h
  • BS746 Connections
  • Suitable for natural gas, town gas, LPG
  • Tamper evident seal
  • Rugged aluminium housing
  • Mechanical accumulated total in m3
  • 8 digit counter with reading capacity up to 99999.999
  • Fireproof to EN1359
  • Minimum flow rate 40dm³/h
  • Maximum pressure 0.5bar
  • Suitable for natural gas, town gas, propane, butane, LPG



Please note that the pipe centres are 110mm

3/4″ BSP male unions (as pictured) supplied as standard with the meter. Reed switch pulse output available from the options above, frequency of 1 pulse per 0.001m³. If this option is selected you will receive the 1.5 metre pulse lead fitted to the meter.
