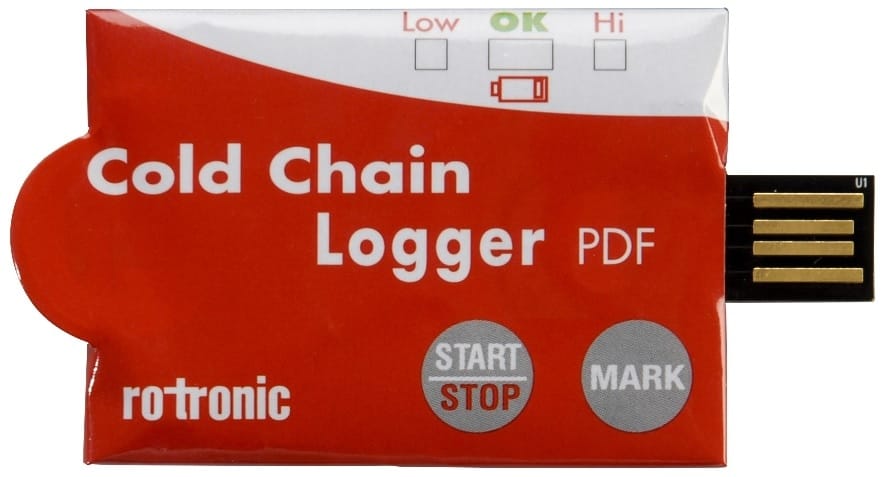

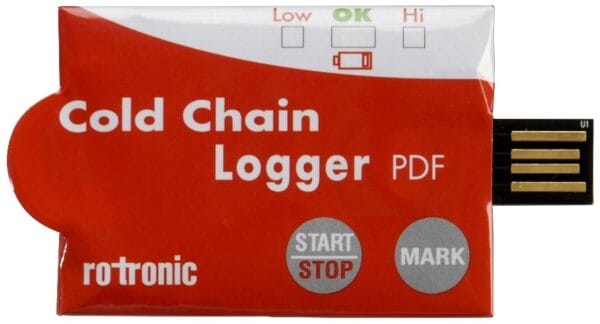

The TL-CC1 is a fully configurable cold chain temperature logger, including a flexible programming function allowing user selectable sample rate, start delay, °C or F, cumulative, breached or no alarms. Program also allows for password protection and setting a company name. No special software required and each logger functions as a self contained unit with calibration certificate, PDF measurement report via integrated USB port.
The TL-CC1 cold chain logger is an ideal choice for monitoring and recording the temperature of sensitive goods during transportation and at exchange points. The TL-CC1 is perfect for pharmaceuticals, food and technical products. The logger is designed for single use only.
Monitoring of the cold chain during transport of sensitive freight such as pharmaceuticals, foods and technical products.
| Accuracy: | ±0.5 °C (-30 to +70°C) |
| Parameter: | Temperature |
| Temperature Range: | -30 to 70°C (-22 to 158F) |
| Accuracy: | ±0.5°C |
| Resolution: | 0.1 °C |
| Logging Interval: | 30 secs, 5, 10, 30, 60, 90 or 120 Mins |
| Start Delay: | 30 secs, 5, 10, 30, 60, 90 or 120 Mins |
| Alarm Ranges: | -20 to -10°C, -10 to 0°C, 2 to 8°C, 0 to 15°C, 0 to 25°C, 15 to 25°C, freely selectable values |
| Alarm Type: | Deactivated, Single or Cumulative |
| Storage Period: | 12 months |
| Storage Capacity: | 8192 data points |
| Mark Function: | Marking of up to 8 points during transport |
| Operation: | START/STOP button, MARK button |
| LED Indicators: | LED “Low” flashes red when value below alarm point LED “Hi” flashes red when value above alarm point LED “OK” flashes green during data logging LED “Battery” flashes red when low battery |
| Battery: | CR2032 (not replaceable) |
| Interface: | USB |
| IP Rating: | IP65 (when placed in plastic bag) |
| Dimensions: | Without bag: 80(L) x 43(W) x 2.5(D) mm with bag: 105(L) x 55(W) x 2.5(D) mm |
| Weight: | ≈ 10g |

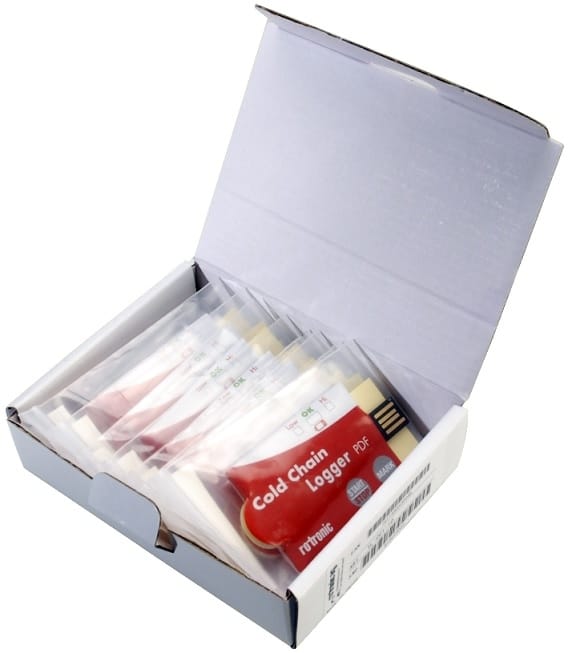

TL-CC1-10
£278.00
