Description

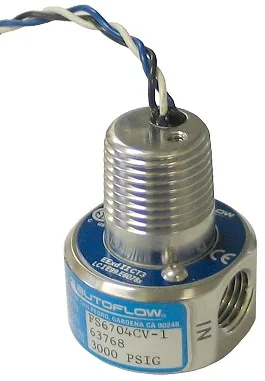

The Autoflow FS6700 Series is an ultra-sensitive, field-adjustable micro flow switch designed specifically for liquid applications where process integrity depends on the smallest fluid movements. Featuring a rugged 316 Stainless Steel poppet design, the FS6700 offers industry-leading sensitivity, detecting liquid flow rates as low as 0.1 ml/min. With a high-pressure rating of 3,000 psig and optional CSA-certified explosion-proof configurations, it is the premier choice for chemical injection monitoring, laboratory fluidics, and micro-coolant protection. Its field-adjustable logic ensures that trip points can be perfectly tuned to the specific viscosity and density of your media, providing a reliable ‘set-it-and-forget-it’ safety solution for high-stakes industrial environments.
Features
- 1/8″ or 1/4″ NPT Process Connection
- Fully Field Adjustable Flow Ranges: 0.5ml/min to 800 ml/min
- 316 Stainless Steel Construction
- Operating Pressure 3,000psig (207 Bar)
- Operating Temperature -40 to + 105°C
- Shock, Vibration and Contamination Resistant
- CSA Certified
Field Configuration Logic
These units are Field Adjustable, allowing the user to set the switching point:
- Clockwise Rotation: Decreases the flow set point (compresses the spring less).
- Counter-Clockwise Rotation: Increases the flow set point (increases spring resistance).
CSA Certification
Class I, Division 1 and 2, Groups ABCD; Class II, Division 1 and 2, Groups E, F, G; Class III.
Class I, Zone 1, IIC; Ex d IIC T3.
Model Series FS6202 and FS6204 Flow Switches; rated 0.25 Amps maximum, @ 120 Vac maximum, 3.0 Watt Resistive or 2.46 VA and @ 100 Vdc maximum 3.0 Watt Resistive, Ambient temperature -40° C to 105° C, Temperature Code T3 and a maximum operating pressure of 3000 PSI.
