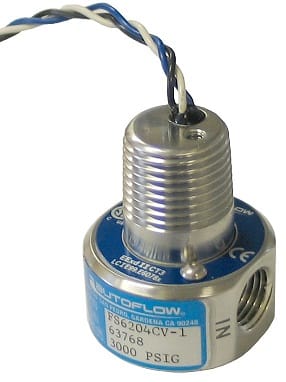

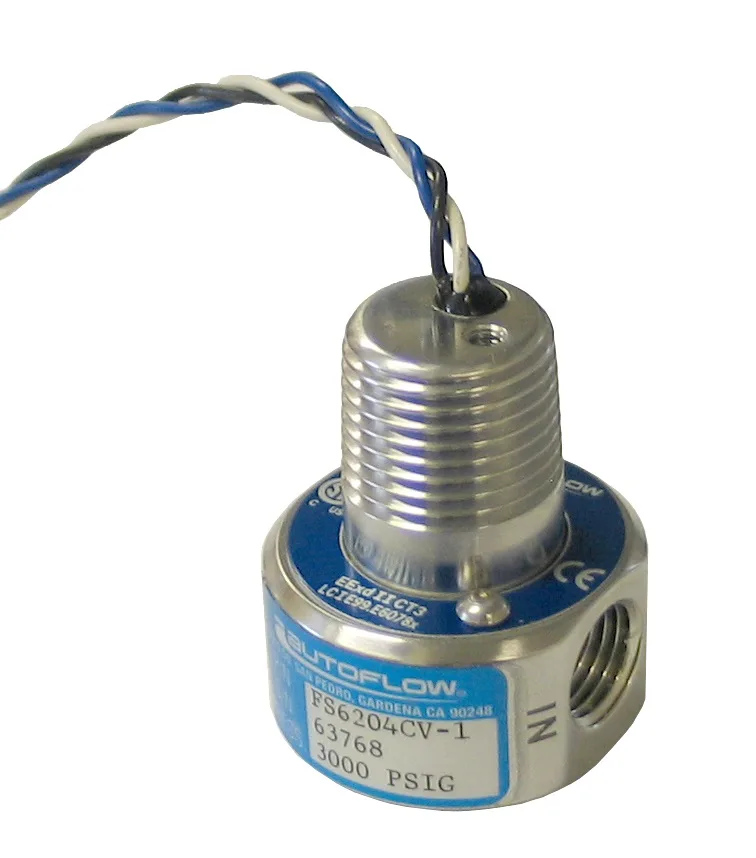

The Autoflow FS6200 Series is a high-performance, field-adjustable micro flow switch designed for the most demanding gas monitoring applications. Engineered with a rugged 316 Stainless Steel poppet-and-spring mechanism, the FS6200 offers a high-resolution adjustment screw that allows operators to precisely set trip points from 30 sccm to 30 slpm. With a 3,000 psig pressure rating and optional CSA certification for hazardous locations (Class I, Div 1), it is the industry benchmark for safety-critical purge monitoring, analyzer protection, and flammable gas systems. Whether installed in a high-density semiconductor tool or an offshore refinery, the FS6200 delivers the mechanical reliability and field-configurability required when process integrity is non-negotiable.
Features
- 1/8″ or 1/4″ NPT Process Connection
- Fully Field Adjustable Flow Ranges: 30 sccm to 20slpm.
- 316 Stainless Steel Construction
- Operating Pressure 3,000psig (207 Bar)
- Operating Temperature -40 to + 105°C
- Shock, Vibration and Contamination Resistant
- CSA Certified
Specifications

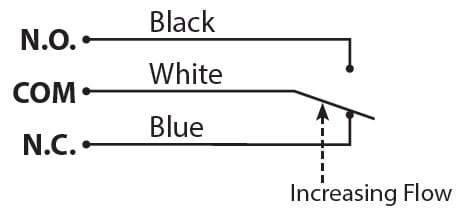

| Switch Assembly: | SPDT UL 61760 |
| Voltage: | 100vDC, 120vAC Max |
| Contact Rating: | 3 Watts resistive max continuous |
| Current Switching: | 0.25 Amp max continuous |
| Power: | 330VA Max – 110vDC2.46VA max -120vAC |
| Contact Resistance: | 0.20 Ohm Max |
| Fluid Media: | Gases (including corrosive) |
| Body & Wetted Parts: | 316 Stainless Steel, Hastelloy, Monel or Titanium |
| Spring Material: | Inconel X750 |
| Max Pressure: | 207 Bar (3,000 psig) |
| Max Ambient Temperature: | +104°C (220F) |
| Filter: | 40 micron |
| Weight: | 205g |

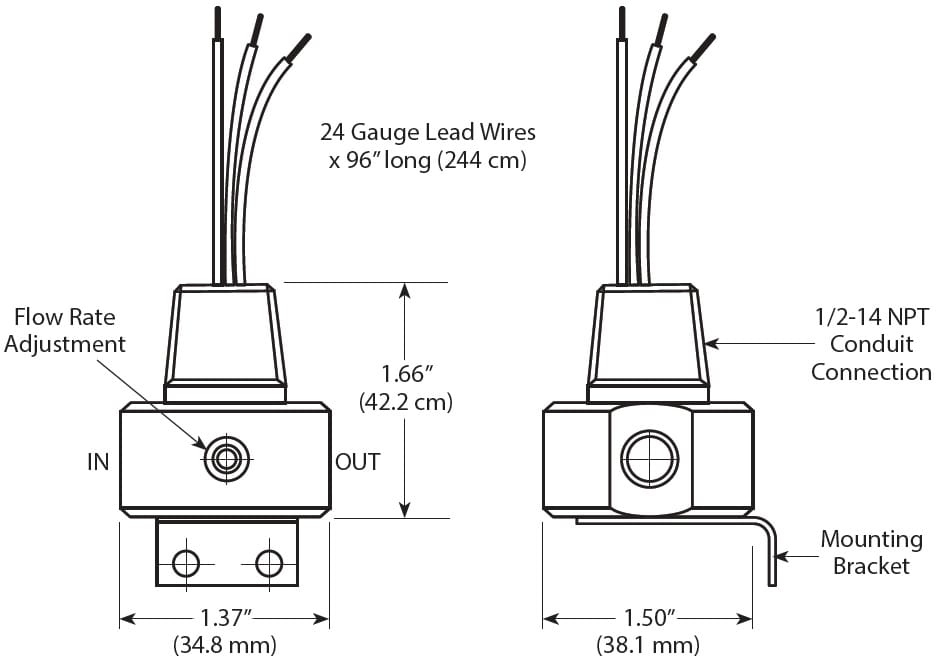

Dimensional Drawing
Field Configuration Logic
These units are Field Adjustable, allowing the user to set the switching point:
-
Clockwise Rotation: Decreases the flow set point (compresses the spring less).
-
Counter-Clockwise Rotation: Increases the flow set point (increases spring resistance).
CSA Certification
Class I, Division 1 and 2, Groups ABCD; Class II, Division 1 and 2, Groups E, F, G; Class III.
Class I, Zone 1, IIC; Ex d IIC T3.
Model Series FS6202 and FS6204 Flow Switches; rated 0.25 Amps maximum, @ 120 Vac maximum, 3.0 Watt Resistive or 2.46 VA and @ 100 Vdc maximum 3.0 Watt Resistive, Ambient temperature -40° C to 105° C, Temperature Code T3 and a maximum operating pressure of 3000 PSI.
