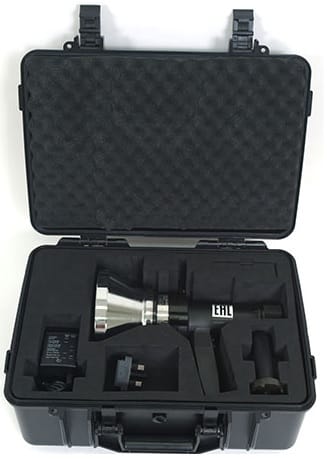

Hire of a Spectrex Sharpeye FS-1400 Multi IR4 (H2) Flame Simulator. Operating Temperature Range 0 to 50°C. Power Supply: 14.8V (4 x 3.7V Rechargeable Lithium-ion Batteries. The unit is ATEX and IECEx approved. Ex II 2 G, Ex db ib op is IIB + H2 T5 Gb. Heavy duty Aluminium, black painting. Dimensions 230 x 185 x 136mm, weight 2.5Kg. The Flame Simulator Kit includes the FS-1400 Flame Simulator, battery, charger, tool kit and user guide in a carrying case and available to hire.

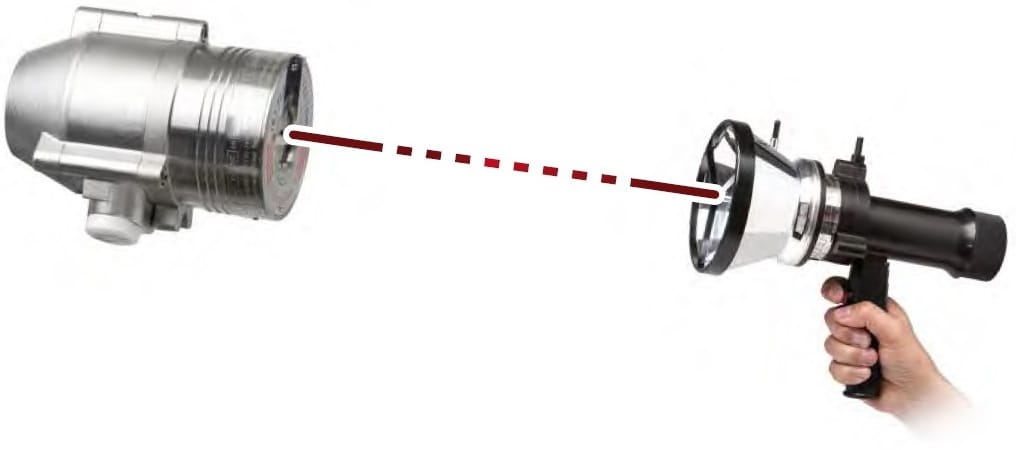

The Spectrex Flame Simulator emits an IR radiation in a unique pattern corresponding to, and recognizable as fire by your SharpEye Flame Detector. This allows the detector to be tested under “real” fire conditions without the associated risks of an open flame.

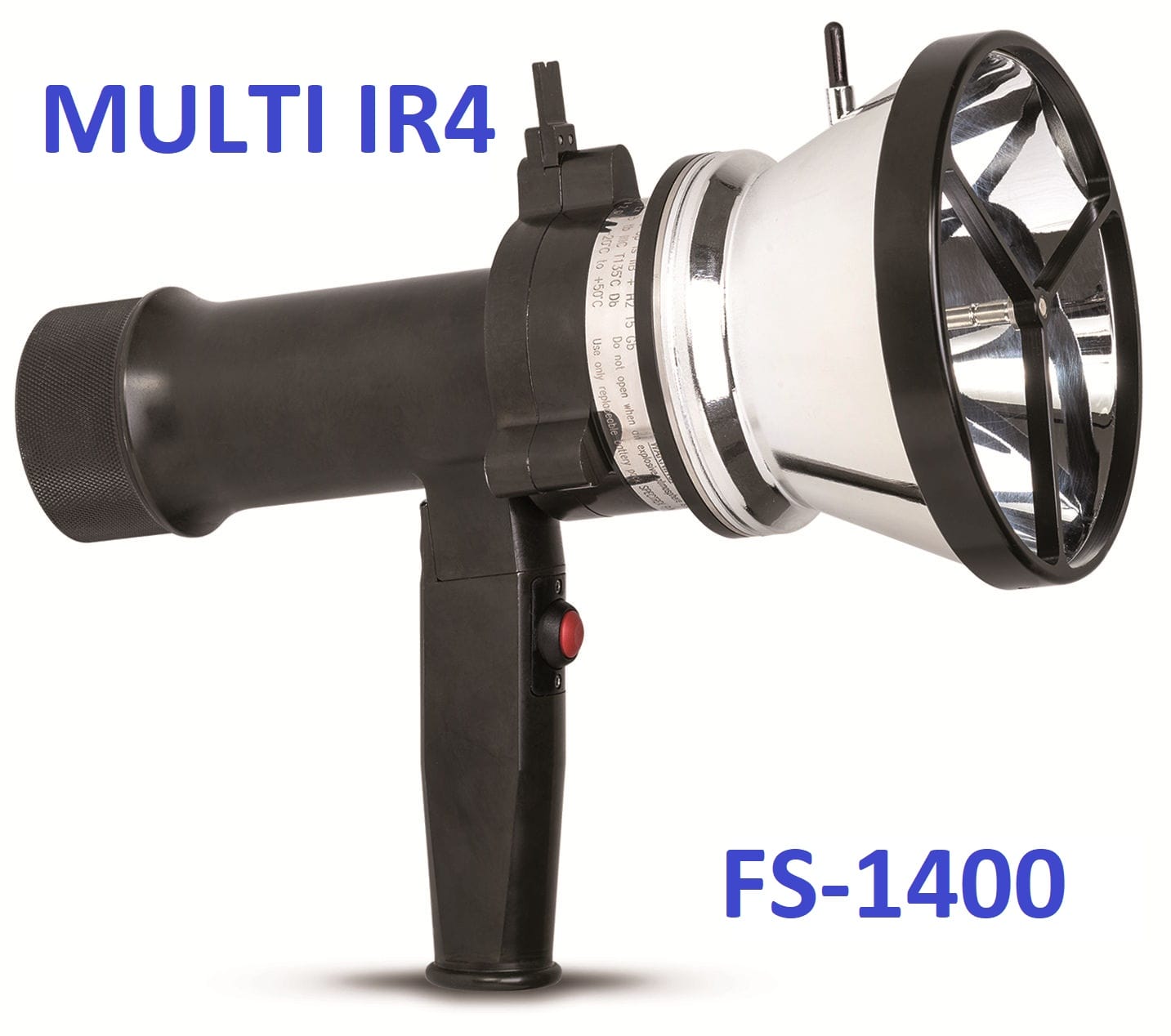

The FS-1400 flame simulator, Product Code 380114-4, replaces the previous generation 20/20-313 model Sharpeye flame simulator and is suitable to use with the flame detectors listed below.
| Detector Type | Sensitivity Setting | Testing Distance Min. | Testing Distance Max |
| 40/40D-M, 40/40C-M
Legacy 40/40M |
50ft (15m) | 2.5ft (0.75m) | 6.6ft (2m) |
| 100ft (30m) | 2.5ft (0.75m) | 19.6ft (6m) | |
| 150ft (45m) | 2.5ft (0.75m) | 29.5ft (9m) | |
| 215ft (65m) | 2.5ft (0.75m) | 39.3ft (12m) |
Limited availability, so contact us to discuss your requirements and find out if the FS-1400 is available for your hire. New units are also available to purchase on the unit below.
