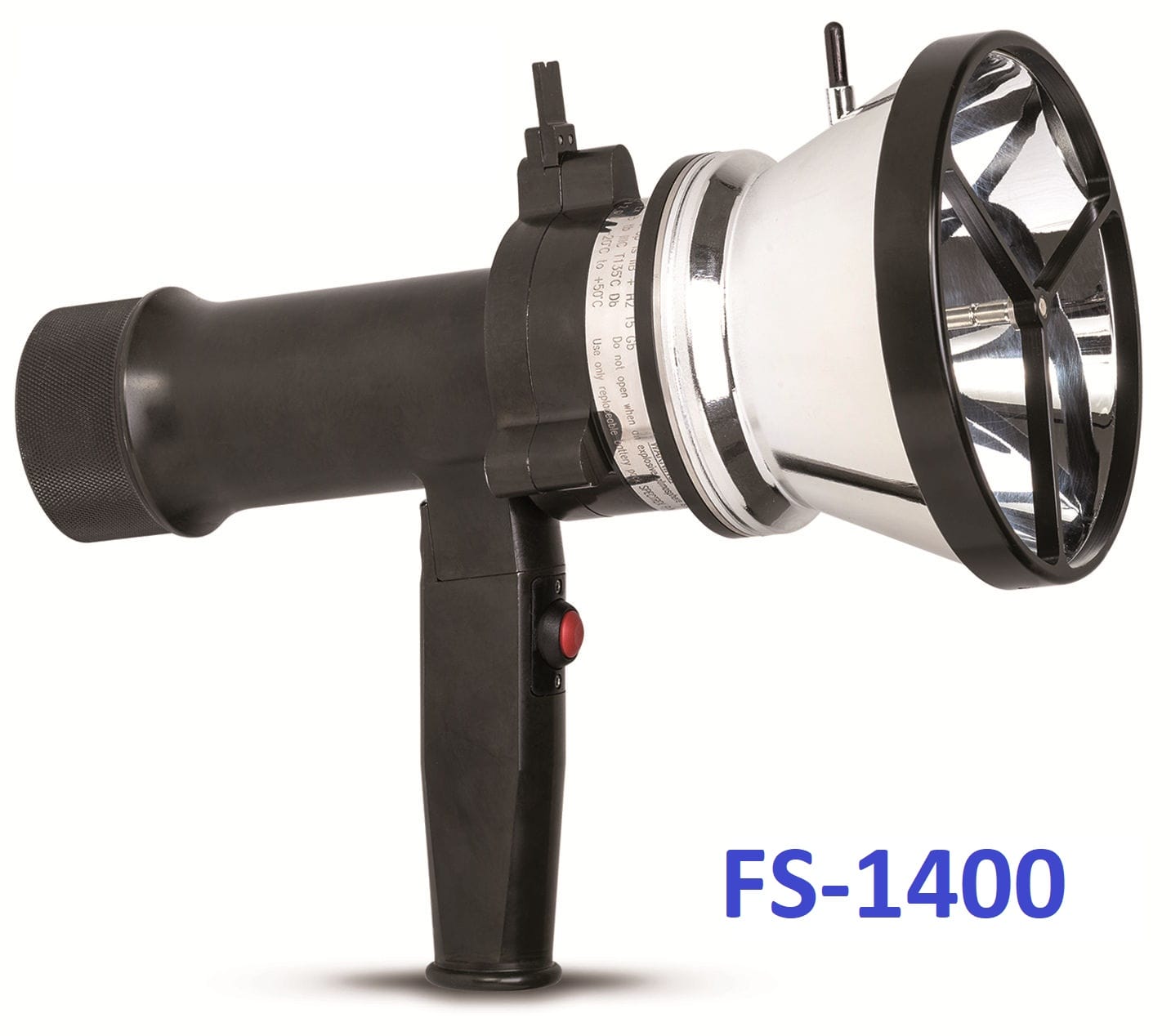

FS-1400 Flame Simulator

Description

Features

  • Long-range flame detection activation from up to 39.3ft (12m).
  • Reduced maintenance costs with easy access for testing detectors
  • Allows full system integrity of all system components
  • Allows clear line of sight testing and lens cleanliness
  • Highly portable for handheld operation by a single operator
  • ATEX/IECEx approved for use in Zone 1, 2, Zones 21 & 22 hazardous areas
  • Single charge is sufficient to test up to 1,000 detectors

The FS-1400 flame simulator, Product Code 380114-4, replaces the previous generation 20/20-313 model Sharpeye flame simulator and is suitable to use with the flame detectors listed below.

Detector Type Sensitivity Setting Testing Distance Min. Testing Distance Max
 40/40M 50ft (15m) 2.5ft (0.75m) 6.6ft (2m)
100ft (30m) 2.5ft (0.75m) 19.6ft (6m)
150ft (45m) 2.5ft (0.75m) 29.5ft (9m)
215ft (65m) 2.5ft (0.75m) 39.3ft (12m)
