FS-1100-Hire

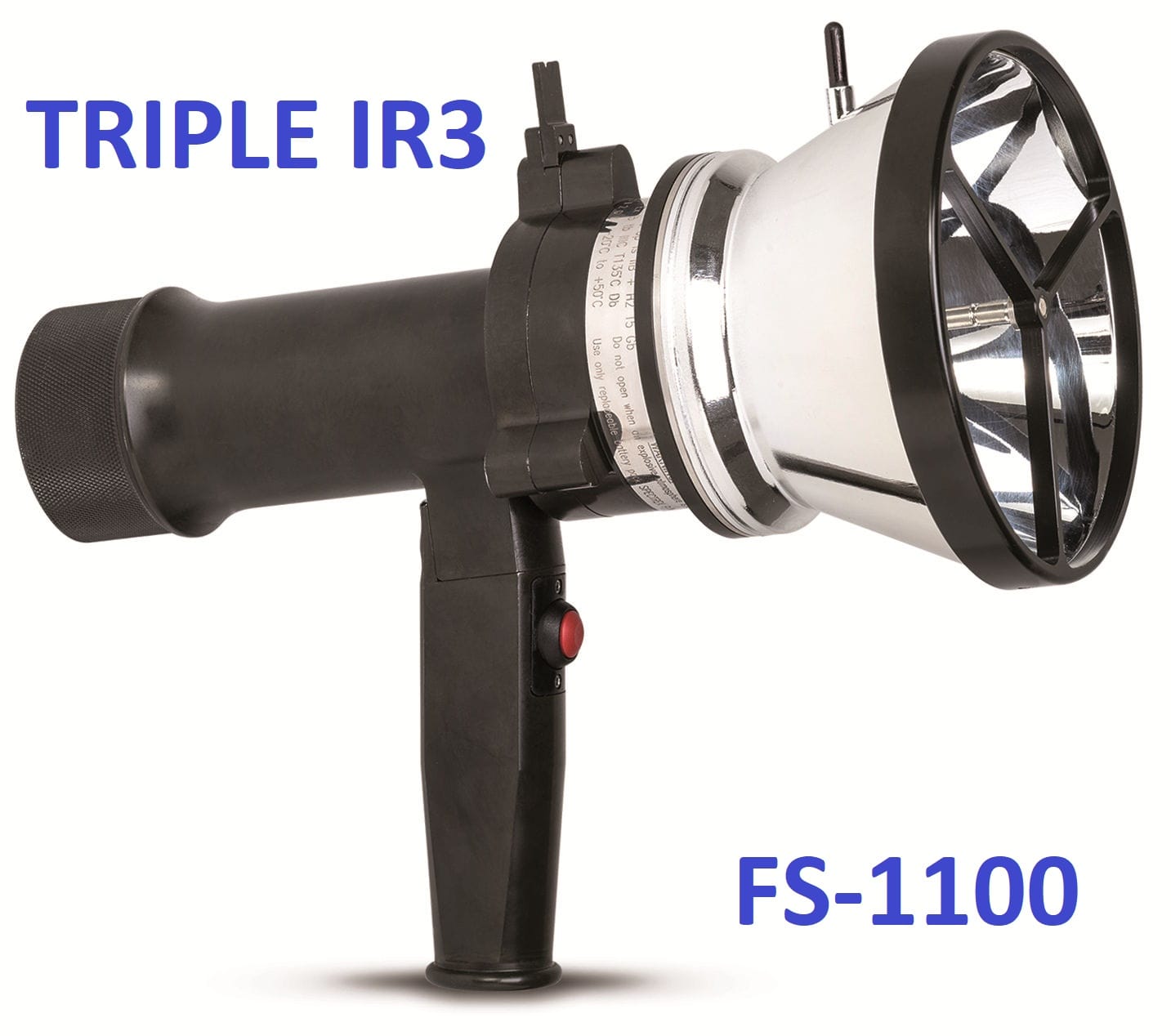

The Spectrex Sharpeye IR3 Flame Simulator is available for hire. Operating Temperature Range 0 to 50°C. Power Supply: 14.8V (4 x 3.7V Rechargeable Lithium-ion Batteries. The unit is ATEX and IECEx approved. Ex II 2 G, Ex db ib op is IIB + H2 T5 Gb. Heavy duty Aluminium, black painting. Dimensions 230 x 185 x 136mm, weight 2.5Kg. The FS-1100-HIRE Flame Simulator Hire Kit includes the FS-1100 Flame Simulator, battery, charger, tool kit and user guide in a carrying case.

Description

The Spectrex IR3 Flame Simulator Hire unit emits an IR radiation in a unique pattern corresponding to, and recognizable as fire by your SharpEye IR3 Flame Detectors. This allows the detector to be tested under “real” fire conditions without the associated risks of an open flame.

Features

  • Long-range flame detection activation from up to 40ft (12m).
  • Reduced maintenance costs with easy access for testing detectors
  • Allows full system integrity of all system components
  • Allows clear line of sight testing and lens cleanliness
  • Easy aiming using laser diode
  • Highly portable for handheld operation by a single operator
  • ATEX/IECEx approved for use in Zone 1 and 21 hazardous areas
  • Single charge is sufficient to test up to 1,000 detectors
  • FS-1100-HIRE is available for weekly hire



The FS-1100 Multi-Spectrum Infrared flame simulator, Product Code 380114-1, is suitable to use with the flame detectors listed below.

Detector Type Sensitivity Setting Testing Distance Min. Testing Distance Max
40/40D-I, 40/40C-I

Legacy 40/40I, 40/40UFI,

50ft (15m)
100ft (30m)
150ft (45m)
200ft (60m)
2.5ft (0.75m) 6.6ft (2m)
19.6ft (6m)
29.5ft (9m)
40ft (12m)
20/20MPI, 20/20MI-1 33ft (10m)
65ft (20m)
100ft (30m)
132ft (40m)
2.5ft (0.75m) 6.6ft (2m)
8.2ft (2.5m)
19.6ft (6m)
26.2ft (8m)



Limited availability, so contact us to discuss your requirements and find out if the FS-1100 is available when you need to hire.
