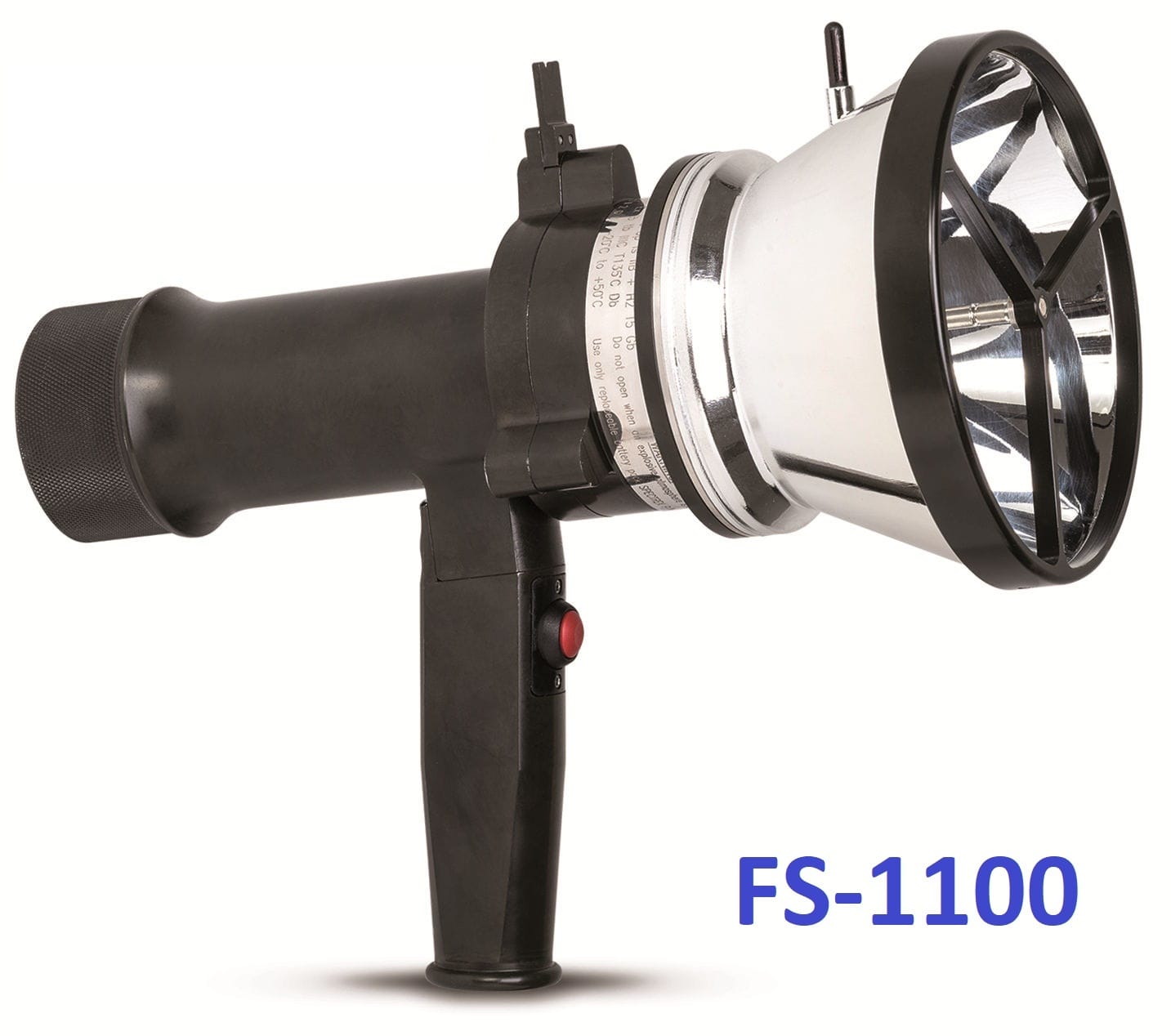

FS-1100 Flame Simulator

Description

Features

  • Long-range flame detection activation from up to 40ft (12m).
  • Reduced maintenance costs with easy access for testing detectors
  • Allows full system integrity of all system components
  • Allows clear line of sight testing and lens cleanliness
  • Easy aiming using laser diode
  • Highly portable for handheld operation by a single operator
  • ATEX/IECEx approved for use in Zone 1 and 21 hazardous areas
  • Single charge is sufficient to test up to 1,000 detectors



The FS-1100 flame simulator, Product Code 380114-1, is suitable to use with the flame detectors listed below.

Detector Type Sensitivity Setting Testing Distance Min. Testing Distance Max
40/40I, 40/40M, 40/40UFI, 20/20CTIx,
Other models 20/20I, SI and XI		 50ft (15m)
100ft (30m)
150ft (45m)
200ft (60m)		 2.5ft (0.75m) 6.6ft (2m)
19.6ft (6m)
29.5ft (9m)
40ft (12m)
20/20MPI, 20/20MI-1 33ft (10m)
65ft (20m)
100ft (30m)
132ft (40m)		 2.5ft (0.75m) 6.6ft (2m)
8.2ft (2.5m)
19.6ft (6m)
26.2ft (8m)
