Description

Features

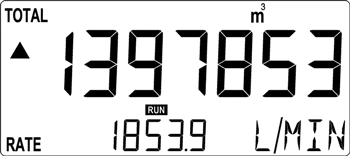

• Displays total and flow rate simultaneously.
• Large digit selection for flow rate or total.
• Flow rate: seven 17mm (0.67″) or 8mm (0.31″) digits.
• Total – resettable: seven 17mm (0.67″) digits.
• Accumulated total – not resettable: eleven 8mm (0.31″) digits.
• Separate engineering units for flow rate and total.
• Selectable on-screen engineering units for flow rate:
  mL, L, m³, mg, g, kg, ton, GAL, bbl, lb, cf, REV, scf, Nm³, NL, P or no unit.
• Selectable on-screen time units for flow rate:
  /sec, /min, /hour or /day.
• Selectable on-screen engineering units for totalizer:
  ml, L, m³, GAL, USGAL, kg, lb, bbl or no unit.
• Green or amber LED backlight with adjustable intensity.
• Auto backup of settings and running totals in EEPROM memory.
• Operational temperature: -40°C to +80°C (-40°F to 178°F).
• Easy configuration with clear alphanumerical display.
• Very compact design for panel mount, wall mount or field mount applications.
• Rugged aluminum or GRP field mount enclosure IP67 / NEMA4X.
