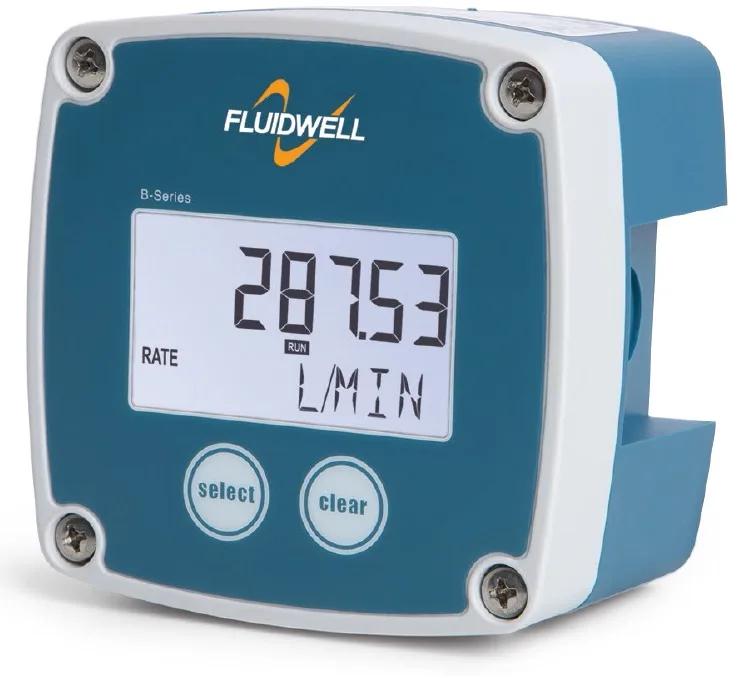

Fluidwell B-Basic Flow Rate Display

Basic flow measurement where a local flow rate indication and totaliser function is required without re-transmission functionality.  The Fluidwell B-series offers you an economical solution for common industrial applications. The B-Series were designed and constructed for measurement purposes in industrial processes in safe areas for various flow meter signals.

Need help finding the right product?

Downloads

Fluidwell B-Basic Display

Fluidwell B-Basic Display

Description

The Fluidwell B-Basic is a cost-effective display designed for straightforward flow monitoring, providing clear readouts of instantaneous flow rate, totalised flow, and accumulated totals. It features a robust IP65 enclosure suitable for industrial environments, and prioritizes ease of use with a simple configuration structure. Primarily, it is built to provide reliable flow information in a clear and concise way.

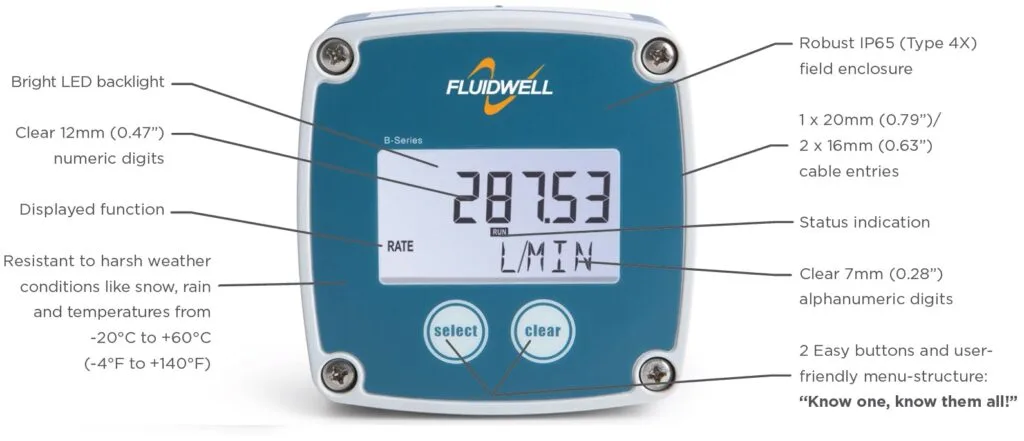

Features

  • Displays total, accumulated total and flow rate instantaneously
  • Clear 12mm numeric and 7mm alphanumeric digits
  • Bright LED backlight
  • Accepts Reed-switch, Namur, NPN, PNP and Sine Wave inputs
  • Power options of 10-30vDC or Lithium AA Battery
  • Auto backup of settings and running totals
  • One 20mm and two 16mm knock-out hole cable entries
  • Easy configurable via PC with free downloadable remote configuration tool.







B-Basic

£320.00

B-Basic Flow Rate Indicator. Power Supply: 10-30vDC  @ 15mA (Max), or 3.6V Lithium AA Battery. Suitable for reading Coil/Sine Wave, NPN, PNP, Reed Switch or Namur Flow Meters.
