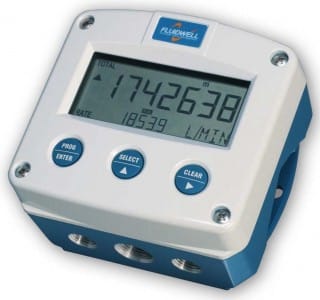

Fluidwell F116 Display

Fluidwell F116 Flow Computer

The Fluidwell F116 Differential/Sum flow computer is Ideal for calculations of two separate flows. The F116 has been developed to calculate differential or total volumes and is suitable for fuel consumption or totalising separate flows. The F116 includes a large display showing flow rate and totals and will accept pulse and analogue 4-20mA and 0-10v signals. The controller is available as a mains, battery or loop powered unit with option suitable for hazardous area installations.

Need help finding the right product?

CONTACT US

Downloads

Datasheet

Fluidwell F116 Flow Computer

Description

Applications

  • Fuel consumption calculations for diesel engines on board of ships, locomotives or other vehicles.
  • Process flows with split flows or flow returns

Features

  • Calculates differential flow rate (consumption) total and accumulated total of flow A and B or the combined total of both.
  • Precautions for pulsating flows and very low consumption readings.
  • 7 digit resettable total.
  • 11 digit accumulated total.
  • Large 17mm digital selection for flow rate or total.
  • Analog and pulse signal outputs.
  • Very compact design for panel mount, wall mount or field mount applications.
  • Operational temperature -30 up to +80°C
  • Intrinsically Safe and Explosion/Flameproof options
  • Full Modbus communications RS232/485/TTL
  • Mains, loop or battery powered
  • Sensor supply 3.2, 8.2, 12 or 24 vDC
