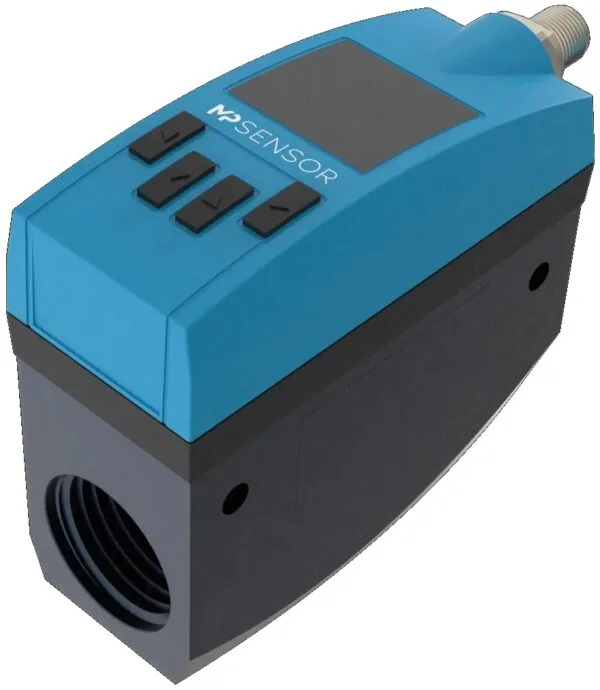

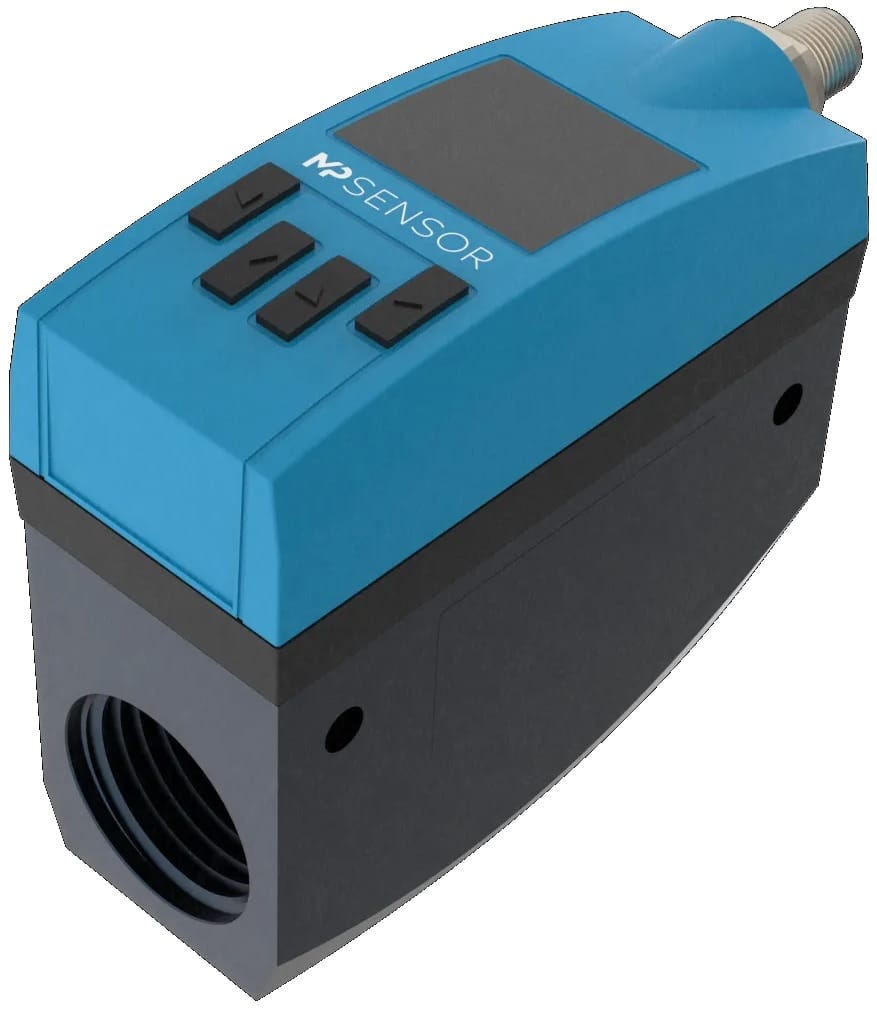

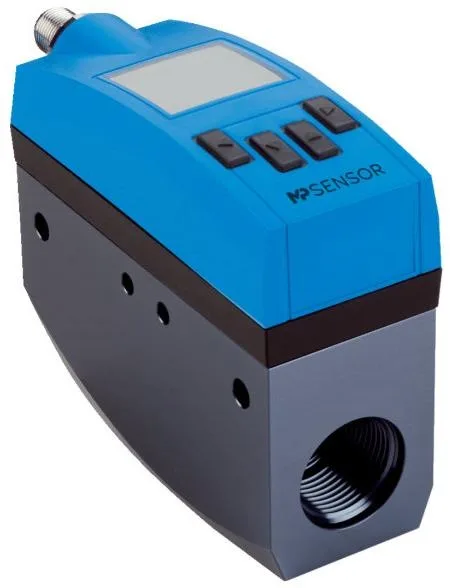

F.Core Flow Sensor

Description

The F.Core Flow Sensor uses a combination of calorimetric and piezoresistive measurement principles to precisely measure flow, pressure, and temperature. With a standard measurement accuracy of ±3% of the measured value, it is perfectly suited for a wide range of industrial applications.

Features

  • Flexible application with switchable outputs: Digital (PNP/NPN/Push-Pull), analog, and via IO-Link or Ethernet.
  • Wide range of fluid pressure compatibility: From 0…16 Bar / 0…232 psi.
  • Rotatable OLED display: For easy readability in different installation scenarios.
  • ½”, ¾” or 1″ BSP female threaded ports for inline connection.
  • Standard flow ranges: Between 5.3…2,945 l/min, extendable up to 4,418 l/min.
  • Compatible with various operating media: Such as compressed air, Helium, Argon, Nitrogen, or Carbon Dioxide

Specifications



Accuracy: ±3% of measured value
Medias: Compressed air, Helium, Argon, Nitrogen, or Carbon Dioxide.
Operating Pressure: 16 Bar maximum
Power Supply: 17-30vDC (12W @ 24vDC)
Wetted Parts: 1.4305, PA6, Viton®, Aluminium
Display: OLED-Display 128×128 px, rotary (4x 90°)
Analogue Output: 4-20mA
Digital Output: PNP, NPN, push-pull → switchable
IO Link: IO-Link v1.1 (COM3 /230K4 baud)
