Description
Features

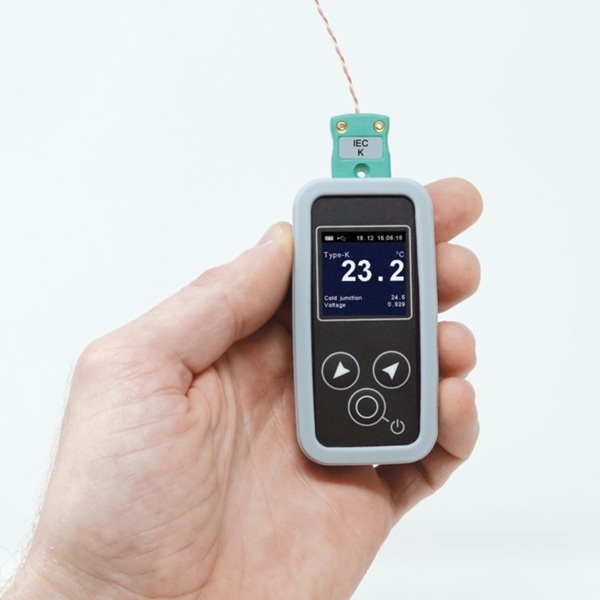

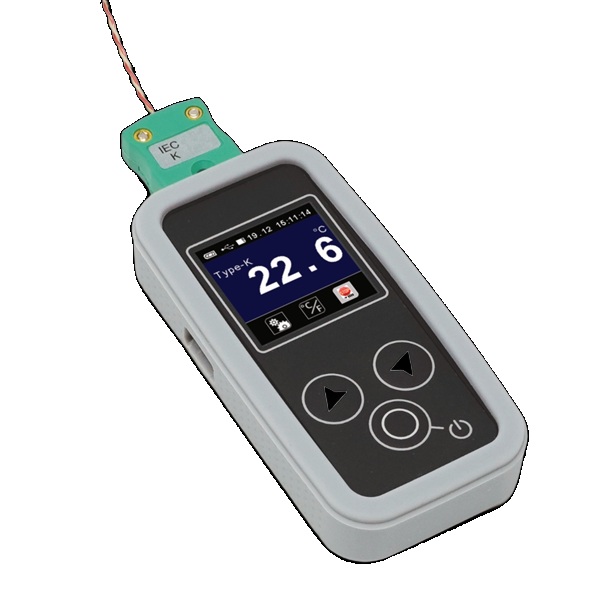

- Single-channel, dual-function data logger and thermocouple simulator
- Universal thermocouple input
- Simulate a thermocouple voltage for a chosen temperature
- Built-in USB-rechargeable battery
- Backlit colour display
- Push button controls and intuitive menu
- English, Spanish, French, German, Italian, Chinese and Japanese languages
- Fully configurable interface
Specifications
General
| Input: | 1 x Thermocouples (Type J, K, T, R, S, N, E) | ||
| Output: | 1 x Simulated Thermocouple Voltage Output (Type J, K, T, R, S, N, E) | ||
| Thermocouple Type: | Thermocouple Type J Type K Type T Type R Type S Type N Type E |
Measured Range -200 to 1200°C -200 to 1372°C -200 to 400°C 0 to 1768°C 0 to 1768°C 0 to 1300°C -200 to 1000°C |
Simulated Range -50 to +1200°C -50 to +1372°C -50 to +400°C +300 to +1768°C +300 to +1768°C +200 to +1300°C -50 to +1000°C |
| Input Accuracy: | ± 0.1% or 0.8°C, whichever is greater | ||
| Output Accuracy: | At 23°C ± 5°C: ± 0.1% or 0.8°C, whichever is greater At 0°C to 50°C: ± 0.25% or 0.8°C, whichever is greater |
||
| Temperature Resolution: | 0.1° for temperatures below 1000°, 1° for temperatures above 1000° | ||
| Display: | 27 x 27 mm Colour LCD, backlit | ||
| Configurable Parameters: | Temperature units, mode (measure/simulate), thermocouple type, cold junction settings, signal processing, date and time, data logging, power options and languages | ||
| Display Language: | English, Spanish, French, German, Italian, Chinese (Simplified) and Japanese. | ||
| Display Response Time: | Temperatures update every 1 second | ||
| Power Supply: | Built-in rechargeable Li-ion battery, or USB | ||
| Battery Life (typical): | Logging Mode: 10 hours while logging with full display brightness, up to 35 hours in power saving mode Simulation Mode: 32 hours in power saving mode |
||
| Charge Time: | 3.5 hours | ||
| Dimensions: | 78 x 38 x 15 mm | ||
| Weight: | 60g | ||
| Operating Temperature: | 0 to 50°C | ||
Data Logger
| Data Logging Interval: | 1 to 86,400 seconds (1 day) |
| Memory Capacity: | 1.5MB (2 Days, Logging every second) |
| Variables Logged: | Measured temperature, cold junction temperature, voltage |
| File Format: | .csv (can be imported to Excel) |
| Configurable Parameters: | Sample period, number of samples, scheduled start date/time (or manual start/stop) |
