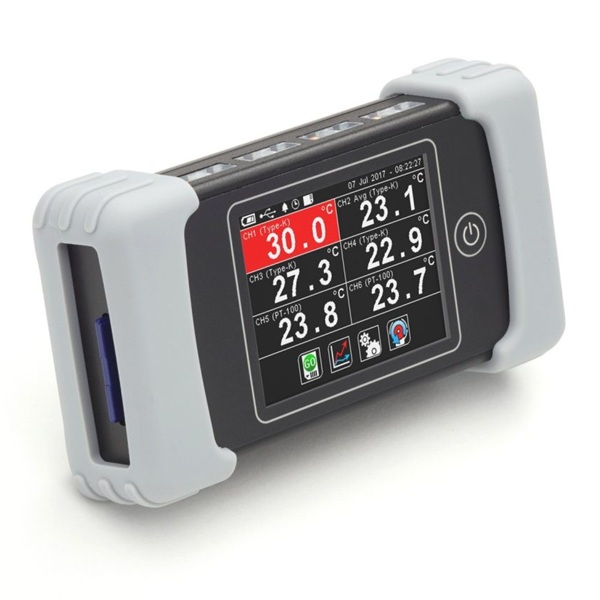

Excelog 6 Temperature Data Logger

Description

Features

  • 4 x thermocouple inputs and 2 x RTD inputs
  • Display and log all 6 channels simultaneously or individually
  • Data logging to SD Card, or PC via USB interface
  • Powered by built-in battery, USB or mains adapter (included)
  • Touch screen with backlight
  • Built-in stand
  • Free software available; Modbus protocol allows use with third-party software
  • 2-channel scrolling temperature chart
  • Alarm indication for each channel
  • Intuitive touch screen interface
  • English, Spanish, French, German, Italian, Chinese and Japanese languages
  • Fully configurable; no additional hardware is required for configuration
  • Each channel is configurable separately for input type, maths, alarms and display options
  • Firmware updates via USB



Specifications

General

Inputs: 4 x Thermocouples (Type J, K, T, R, S, N, E) and 2 RTD’s (PT100, PT200, PT500, PT1000)
Temperature Resolution: 0.1° for temperatures below 1000°, 1° for temperatures above 1000°
Display:
 2.83” (72 mm) resistive touch TFT, 320 x 240 pixels, backlit
Configurable Parameters: Temperature units, alarms, signal processing, date and time, data logging, power options, graph channels
Alarm Configuration: 12 x visual alarms (2 per channel) with adjustable level, individually configurable as HI or LO.
Signal Processing: Average, minimum, maximum, standard deviation, temperature difference between 2 channels
Display Response Time: Temperatures update every 1 second
Power Supply: Built-in rechargeable Li-ion battery, or USB, or 5 V DC mains adapter (included)
Battery Life (typical): 32 hours while logging with full display brightness, up to 96 hours while logging in power saving mode
Charge Time: 6 hours (with supplied mains adapter)
Dimensions: 136 x 71 x 32 mm
Weight: 200g
Operating Temperature: 0 to 50°C



Data Logger

Data Logging Interval: 1 to 86,400 seconds (1 day)
Max SD Card Capacity: 32GB SD or SDHC (4GB SD Card included – approx 2 years of data)
Variables Logged: Measured temperature, cold junction temperature, alarm events
File Format: .csv (can be imported to Excel)
Configurable Parameters: Sample period, number of samples, scheduled start date/time (or manual start/stop)
