Description

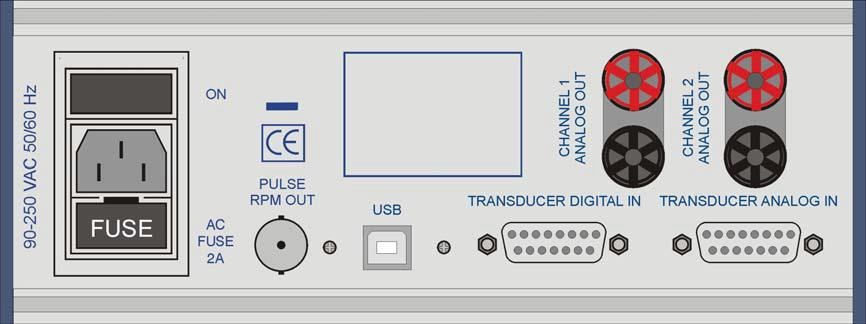

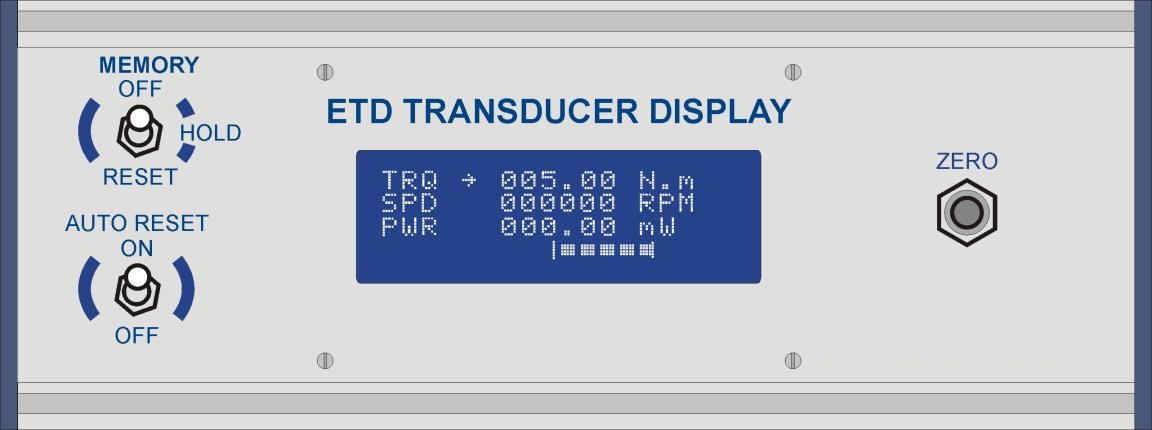

The Transducer Display (ETD) is a versatile digital readout unit designed for seamless integration with all SGR, ORT, and RWT transducers. The unit serves as a central interface, providing access to the transducer’s analogue outputs and enabling connection to a PC for configuration and data logging using the TorqView and Transducer Control Program software. To operate, the ETD requires a digital lead (ACC4) connection to the transducer and a standard IEC power lead for activation via the rear panel ‘ON/OFF’ switch.

Features

• Displays torque, peak torque, speed or power, depending on the transducer connected
• Automatically detects and displays the model, range, serial no. and calibration due date of the transducer
• Provides auto reset of peak torque values
• Provides power to the transducer in place of the standard power supply unit
• Provides access to analogue torque outputs and pulse/speed output
• Provides USB output, if used with SGR520/540, ORT240 or RWT420/440 series with USB option fitted
• Displays warnings and high temperature, if appropriate
