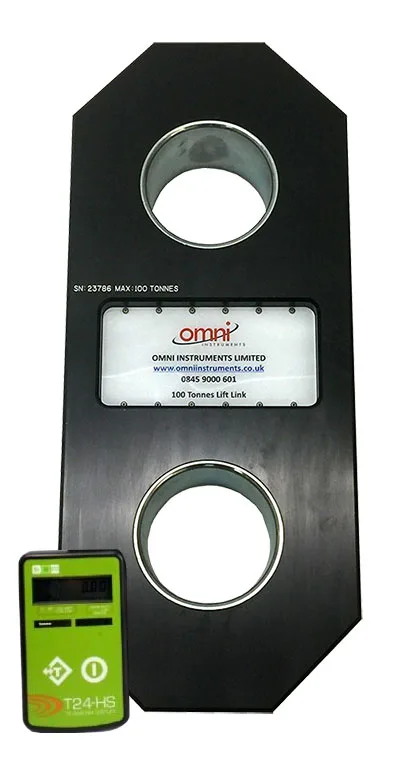

ET24 Lift Link Load Cell System

Description

Features

  • Capacities 1 Tonne to 500 Tonnes
  • Wireless range up to 700 metres
  • Internal antenna
  • Accuracy <±0.3% of rated capacity
  • High resolution T24-HS display
  • Extreme battery life: Load cell 600 hours, Display 40 hours
  • Remote Power on/Off
  • Ability to use multiple link load cells and sum their readings to monitor total load (optional)
  • Includes carry case (75 Tonnes and below) / Storage crate (100tonnes and above)
  • IP65 environmental protection

Options

  • USB base station for PC-based monitoring and data logging
  • Analogue output module
  • Multi-channel logging software
  • Remote printer
  • Lifting shackles

Applications

  • Lifting Gear Weighing
  • Cable Tension Measurement
  • In-line Weighing Applications
  • Crane Monitoring
  • Under-Hook Crane Weighing
  • Towing Force Monitoring
  • In-Line Tension Measurement

Specifications

Available Ranges (Tonnes): 0-1, 0-2.5, 0-6.5, 0-12, 0-25, 0-35, 0-55, 0-75, 0-100, 0-150, 0-200, 0-250, 0-300, 0-500
Accuracy: <±0.3% /Applied load
Power Requirements: Loadcell, 4 x AA battery. Display, 2 x AA battery
Display Type: 7 Digit 8.8mm LCD
Data Rate: 3 updates per second
System Range: 700m (line of sight)
Safe Overload: 150% of rated capacity
Ultimate Overload: 500% of rated capacity (up to 75 tonnes), 400% (100 to 300 Tonnes)
Construction: Aluminium Alloy
Operating Temp: -10 to +50°C
Environmental Protection: IP65

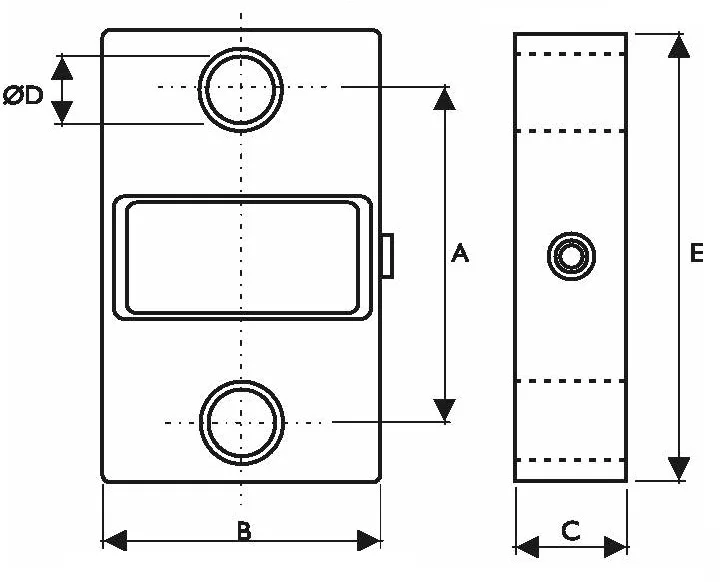

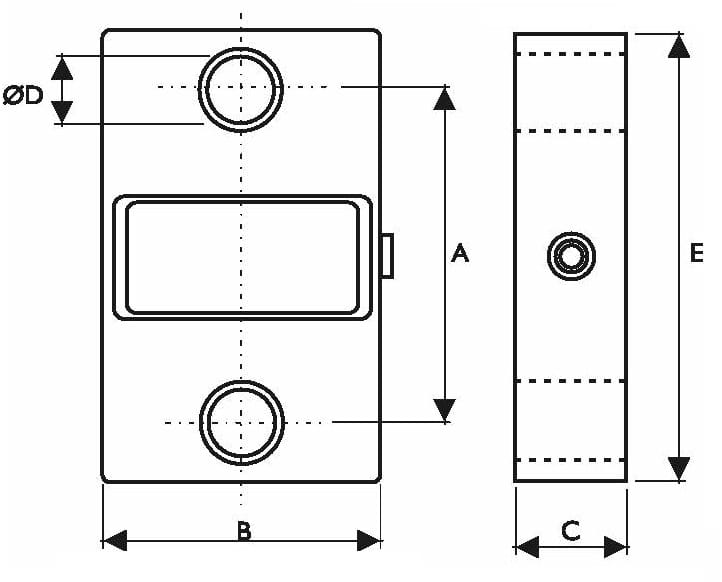

Dimensions





Capacity (Tonnes)
 A B
 C

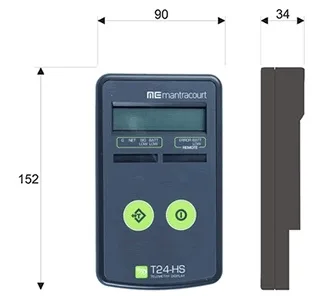

 ØD E Weight   Specifications T24-HS
0-1 146 104 43 24.5 204 1.5Kg Display: 8-digit LCD (8.8 mm high)
0-2.5 146 104 43 24.5 204 1.5Kg Frequency Range:
 2.4 – 2.4835GHz.
0-6.5 165 113 43 38 249 2.4Kg RF Power:
 10mW
0-12 193 113 47 47.5 305 3.7Kg Range: 700m Line of sight
0-25 215 115 60 55 340 5.0Kg Internal Battery: 2 x AA 1.5V Alkaline
0-35 225 126 75 60 393 8.6Kg Battery Life: 35 Hours (Max 40 Hours)
0-55 230 180 75 76 424 13Kg Keypad: Tactile with rim embossed keys
0-75 260 202 75 76 470 16Kg IP Rating: IP67
0-100 320 255 99 109 608 34Kg Operating Temperature: -10 to +50°C
0-150 360 303 99 109 670 46Kg
0-200 350 350 144 145 700 82Kg
0-250 350 350 144 145 700 82Kg
0-300 350 426 150 160 806 118Kg
0-500 450 570 150 200 930 248Kg

Additional information

Weight N/A
Load Capacity

0-1 Tonne, 0-2.5 Tonnes, 0-6.5 Tonnes, 0-12 Tonnes, 0-25 Tonnes, 0-35 Tonnes, 0-55 Tonnes, 0-75 Tonnes, 0-100 Tonnes, 0-150 Tonnes, 0-200 Tonnes, 0-250 Tonnes, 0-300 Tonnes
