EL-WiFi Glycol Temperature Logger

EL-WiFi Vaccine Monitoring Kits

These data loggers were specifically designed to measure temperature in vaccine fridges and freezers. Each logger has a thermistor temperature probe with 3m of cable mounted into a small bottle filled with Glycol. This provides a temperature reading of the vaccines, instead of the air temperature. The built-in LCD display can show current readings and the max/min readings of the logged data to provide immediate readings and clear indication of the vaccine temperature. The unit has a button which allows the operator to cycle through each of the available readings.Units can connect to a local WiFi network to allow readings to be available on the EasyLog Cloud, The EL-WiFi-VACX kit can be configured for email alarm notifications. The logger can also be simply plugged into a USB port to download the collected data. Data can then be graphed, printed and exported to other applications for additional documentation and record keeping. The internal battery is a replaceable long-life lithium battery which will last up to 6 months. A mains power packis also available to provide a constant power supply.

Need help finding the right product?

CONTACT US

Description

Features

  • WiFi data loggers with external thermistor probe in a glycol bottle to mimic a vaccine
  • EL-WiFi-VAC2 has two external thermistor probes
  • Temperature measurement range -40 to +60°C (-40 to +140°F)
  • Traceable calibration certificate supplied at 2°C and 8°C
  • Continuous logging with rates from 10 sec up to 12 hour
  • Easy device setup using free PC software or mobile app
  • Wirelessly stream and view temperature data on the EasyLog Cloud, App or on a PC
  • Device memory stores all data even if Wi-Fi is temporarily disconnected
  • EL-WiFi-VACX allows for alarm email notifications
  • No need to remove from service for recalibration, just replace the probe
  • Supplied with rechargeable Lithium battery, recharged via USB port, mains power pack available



The EL-WiFi data loggers allow data to be streamed wirelessly over any WiFi network and can be viewed on a PC using the free software package. During configuration, the sensor will search for an existing wireless network whilst physically connected to the PC. It can then be placed anywhere within range of the network and will maintain the WiFi connection. The software installed on the PC will allow set-up, data logging and data review. Set-up features will include sensor name, °C/°F, sample rate, and high/low alarms. Once configured, historic data can be viewed via the graphing tool or exported into an Excel spreadsheet.

The El-WiFi data loggers require your wireless network to be IEEE 802.11bgn* (2.4GHz) compliant, supports WEP, WPA/WPA2 encryption and enterprise networks (PEAP, TTLS, FAST).

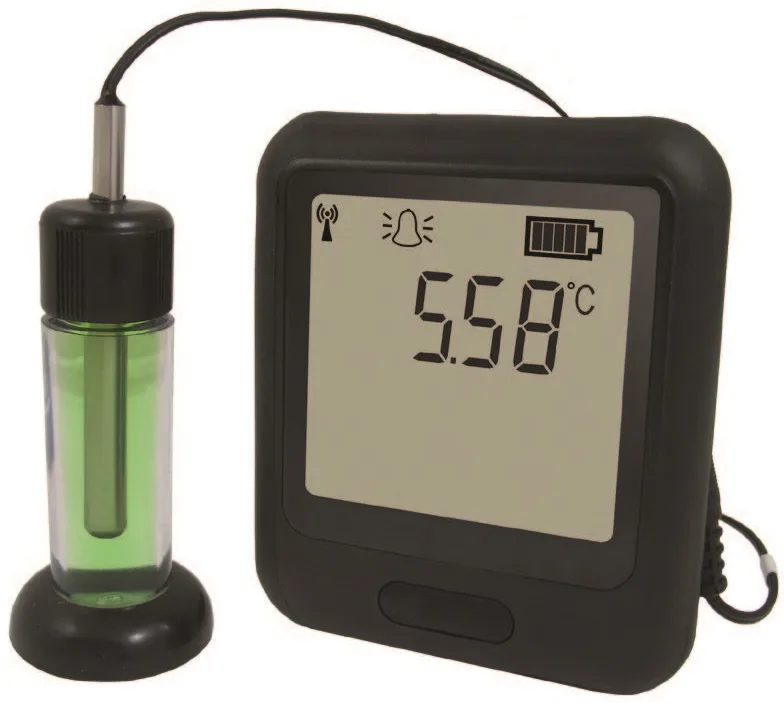

EL-WiFi-VAC WiFi Vaccine Monitoring Kit.

EL-WiFi-VAC

£184.99

EL-WiFi-VAC Wireless Vaccine Monitoring Kit. The 3m thermistor temperature probe is immersed in a Glycol filled bottle to provide a temperature reading representative of the vaccine temperature. Temperature range is -20 to +60°C with a ±0.1°C accuracy and a resolution of 0.01°C. The data loggers include a built-in LCD display and WiFi connectivity to stream data to a PC or EasyCloud server. The button allows the operator to cycle through the current temperature plus the max and min logged temperatures. A USB port can also be used to download the data and allow for recharging the internal battery. Battery life is up to 6 months, USB mains power adaptors are available for constant power. Units are supplied with wall bracket, micro USB lead and Calibrated Thermistor Glycol Probe.
MORE INFO
Add to basket

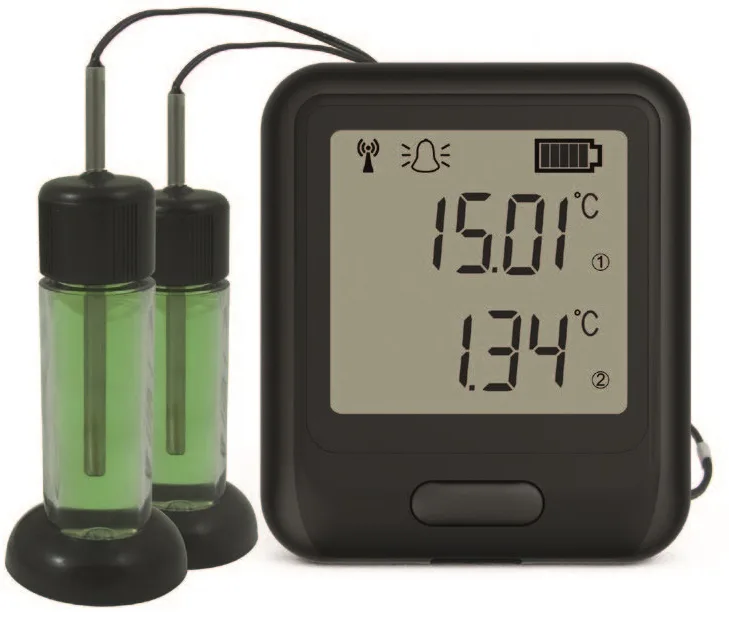

EL-WiFi-VAC2 Dual Channel Vaccine Monitoring Kit with 2 Temperature Probes

EL-WIFI-VAC2

£299.99

EL-WiFi-VAC2 Dual Channel Vaccine Monitoring Kit with 2 Temperature Probes. Two 3m thermistor temperature probe are immersed in Glycol filled bottles to provide two temperature reading representative of the vaccine temperature. Temperature range is -20 to +60°C with a ±0.1°C accuracy and a resolution of 0.01°C. The data loggers include a built-in LCD display and WiFi connectivity to stream data to a PC or EasyCloud server. The button allows the operator to cycle through the current temperature plus the max and min logged temperatures. A USB port can also be used to download the data and allow for recharging the internal battery. Battery life is up to 6 months, USB mains power adaptors are available for constant power. Units are supplied with wall bracket, micro USB lead and two Calibrated Thermistor Glycol Probes with 160mm Y splitter cable.
MORE INFO
Add to basket

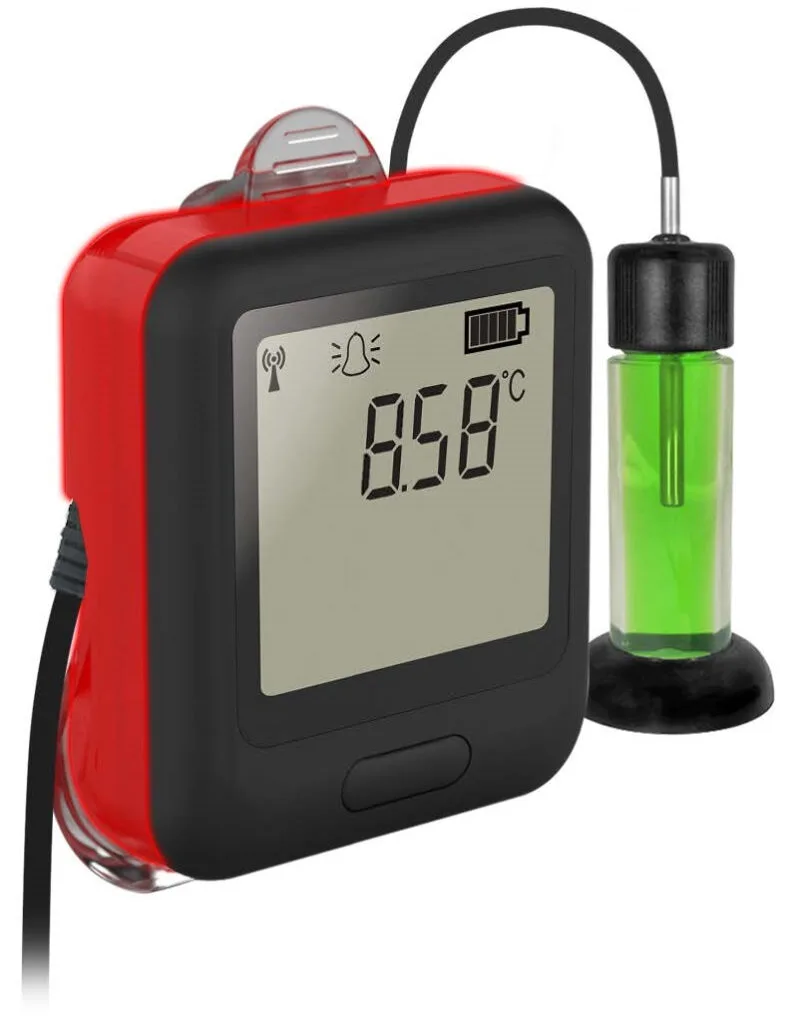

EL-WiFi-VACX WiFi Vaccine Monitoring Kit with Alarm

EL-WIFI-VACX

£209.99

EL-WiFi-VACX Wireless Vaccine Monitoring Kit with Alarm Warning Light, Sounder and email Alarms. The 3m thermistor temperature probe are immersed in Glycol filled bottles to provide a temperature reading representative of the vaccine temperature. Temperature range is -20 to +60°C with a ±0.1°C accuracy and a resolution of 0.01°C. The data loggers include a built-in LCD display and WiFi connectivity to stream data to a PC or EasyCloud server and allow email alarms to be sent. The button allows the operator to cycle through the current temperature plus the max and min logged temperatures. A USB port can also be used to download the data and allow for recharging the internal battery. Battery life is up to 6 months, USB mains power adaptors are available for constant power. Units are supplied with wall bracket, micro USB lead and a Calibrated Thermistor Glycol Probe.
MORE INFO
Add to basket

EL-PROBE-EXTENDER-1.5M

£9.68

1.5m Thermistor Probe Extension Cable. Male 3.5mm Jack to Female 3.5m Socket with Gold Plated Connections to limit signal loss. Suitable for use with EL-P-TP, EL-P-TP+ and EL-P-VAC Thermistor Probes
MORE INFO
Add to basket

EL-PROBE-EXTENDER-3M

£12.45

3m Thermistor Probe Extension Cable. Male 3.5mm Jack to Female 3.5m Socket with Gold Plated Connections to limit signal loss. Suitable for use with EL-P-TP, EL-P-TP+ and EL-P-VAC Thermistor Probes
MORE INFO
Add to basket
