EL-WiFi-TH Wireless Temp & RH Data Logger

This data logger is a wireless data logger that will measure temperature and relative humidity and send the collected information via a WiFi network back to a PC for monitoring. The internal memory can retain up to 500,000 data set entries between downloads. Measurement ranges are 0 to 100% RH and -20 to +60°C (-4 to +140F). The logger has a rechargeable lithium polymer battery that can be recharged via the USB port. Units are supplied with wall bracket and micro USB lead. The EL-WiFi-TH+ has an improved accuracy and resolution display.

Need help finding the right product?

Description

The EL-WiFi-TH is a wireless data logger that can provide remote monitoring of temperature and relative humidity, which can be accessed via a WiFi network. A single network of 256 loggers can be built with each unit sending data back to the PC at pre-defined intervals or to a PC remotely connecting to the loggers via WiFi to download the logged data as required. The data logger will retain up to 500,000 data set entries between downloads and the internal rechargeable battery can last up to 1 year between recharging.

Features

  • Temperature and humidity data logging sensor
  • Temperature -20 to +60°C and Humidity 0-100%RH
  • Wireless connectivity to PC via WiFi
  • Integrated display
  • Easy set up using the PC software
  • View and analyse multiple sensors via software, including graphing and historical data
  • Internal memory forup to 500,000 readings.
  • Rechargeable internal Lithium polymer battery
  • Low battery indicator
  • Configurable high and low alarms with indicator
  • WiFi connection indicator
  • USB port used for recharging
  • Supplied with wall bracket and micro USB lead
  • IP55

EL-WiFi-TH

£109.99

The EL-WiFi-TH is a data logger for monitoring temperature and humidity with a wireless connection back to a PC via a WiFi network. Internal memory for up to 500,000 readings and internal rechargeable Lithium battery for up to 1 years logging. The logger can be recharged by simply connecting to a USB port on a PC. Units are supplied with wall bracket and micro USB lead.

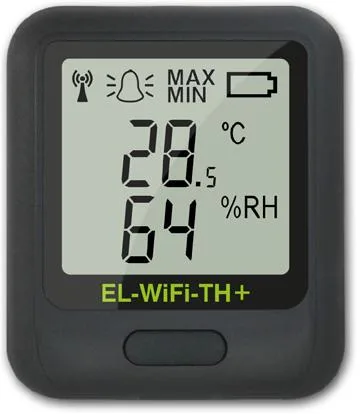

EL-WIFI-TH+

£139.98

The EL-WiFi-TH+ is a high accuracy datalogger for monitoring temperature and humidity with a wireless connection back to a PC via a WiFi network. Units are supplied with wall bracket, micro USB lead and a rechargeable Lithium polymer battery. Temperature range is -40 to +125 C with a 0.2 C (in the range 0 to +60 C) and a display resolution of 0.5 C (measurement resolution of 0.01 C). Humidity range is 0-100%RH with a 1.8%RH accuracy and a display resolution of 1%RH (measurement resolution of 0.1%RH).
