Description

Features

• Glycol filled bottle with 3m thermistor probe
• USB interface for set-up and data download
• Continuous logging with rates from 2 sec up to 1 hour
• User-programmable alarm thresholds for %RH & Temperature
• Status Indication via red and green LEDs
• High contrast LCD, with two and a half digit temperature and humidity display function
• Temperature Range -40 to +60°C
• Immediate, delayed and push to start logging.
• Supplied with replaceable internal lithium battery and Windows control software.
• Units are also supplied with a calibration certificate

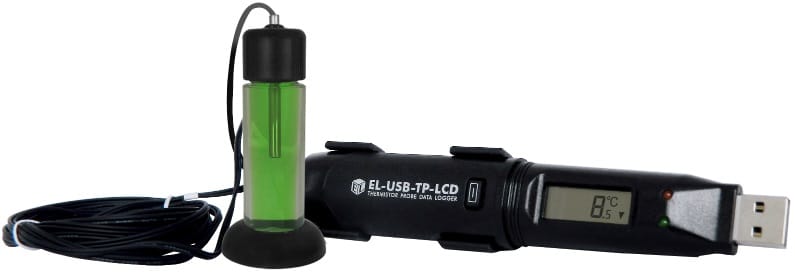

Exceeding CDC guidelines for data loggers used in vaccination storage, these units come with external thermistor glycol bottles – allowing for discrete and continuous temperature monitoring of vaccines. EL-USB-TP-LCD-PROBE-G also includes a traceable calibration certificate.

The EL-USB-TP-LCD data logger measures and stores up to 32,510 temperature readings from the supplied thermistor probe which is attached via the socket at the base of the unit. The user can easily set up the logging rate and start-time, and download the stored data by plugging the data logger into a PC’s USB port and running the purpose designed software under Windows XP, Vista, 7 & 8. Data can then be graphed, printed and exported to other applications.

The EL-USB-TP-LCD features an LCD and push-button which allows the user to cycle through the most recent, highest and lowest stored temperature readings. The data logger is supplied complete with a long-life lithium battery, which can typically allow logging for over a year.
