EL-USB Data Loggers with LCD Displays

EL-USB Data Loggers with LCD Displays

These data loggers include a built in LCD display to display measured temperature and humidity, allowing current, min and maximum readings to be shown from the logged data. The loggers cover internal temperature, internal temperature and humidity or an external thermocouple/thermistor probe. All the logger can be simply plugged into a USB port to download the data. Data can then be graphed, printed and exported to other applications. The unit has a button which allows the operator to cycle through each of the available readings. The internal battery is a replaceable long-life lithium battery which will last for between 6 months and a year.

View Options

Need help finding the right product?

CONTACT US

Description

Features

  • USB interface for set-up and data download
  • User-programmable alarm thresholds for %RH & Temperature
  • Status Indication via red and green LEDs
  • High contrast LCD, with two and a half digit temperature and humidity display function
  • Immediate, delayed and push to start logging.
  • Supplied with replaceable internal lithium battery and Windows control software.



Specification

Part No Function Measurement Range Accuracy (Typ) Readings
EL-USB-1-LCD Temperature Measurement -35 to +80°C ±0.5ºC 16,378 Temp
EL-USB-2-LCD Temp & RH Measurement -35 to +80°C
0-100% RH		 ±0.5ºC
±3%RH		 16,379 Temp
16,379 RH
EL-USB-2-LCD+ Temp & RH Measurement -35 to +80°C
0-100% RH		 ±0.3ºC
±3%RH		 16,379 Temp
16,379 RH
EL-USB-TC-LCD Thermocouple Measurement -200 to +1350°C (Type K)
-200 to +1190°C (Type J)
-200 to +390°C (Type T)		 ±1ºC 32,510 Temp
EL-USB-TP-LCD Thermistor Measurement -40 to +125°C ±0.1ºC 32,510 Temp
EL-USB-TP-LCD-PROBE-G Thermistor Measurement -40 to +100°C ±0.1ºC 32,510 Temp

Product

Ref

Price

Product Description

EL-USB-1-LCD Temperature Data Logger with Display

EL-USB-1-LCD

£56.99

The EL-USB-1-LCD is a USB Temperature Data Logger with a built-in LCD display. Temperature range -35 to +80°C (-31 to +176F). Memory for 16,378 temperature readings with configurable start time and high & low alarms. Logging intervals of 10 secs, 1 mins , 5 mins, 30 mins, 1 Hr, 6 Hr or 12 Hr. An integrated USB port that can be connected into a PC for configuration and downloading the logged data. The button allows the operator to cycle through the current temperature plus the max and min logged temperatures. The replaceable long-life Lithium battery will allow for up to 1 years operation. The housing provides environmental protection up to IP67 with the cap closed.
MORE INFO
Add to basket

EL-USB-2-LCD

£74.98

EL-USB-2-LCD. Temperature and relative humidity datalogger with built in LCD display and USB port for downloading the data. Measurement range -35 to +80 C (-31 to +176 F) and 0 to 100%RH, memory for 16,379 relative humidity and 16,379 temperature readings. The button allows the operator to cycle through the current temperature and humidity plus the max and min logged readings. The replaceable internal battery is a long-life lithium battery which will last for at least 1 year.
MORE INFO
Add to basket

EL-USB-2-LCD+

£89.98

EL-USB-2-LCD+. High Accuracy Temperature and relative humidity datalogger with built in LCD display and USB port for downloading the data. Measurement range -35 to +80 C (-31 to +176 F) and 0 to 100%RH, memory for 16,379 relative humidity and 16,379 temperature readings. The button allows the operator to cycle through the current temperature and humidity plus the max and min logged readings. The replaceable internal battery is a long-life lithium battery which will last for at least 1 year.
MORE INFO
Add to basket

EL-USB-TP-LCD

£85.99

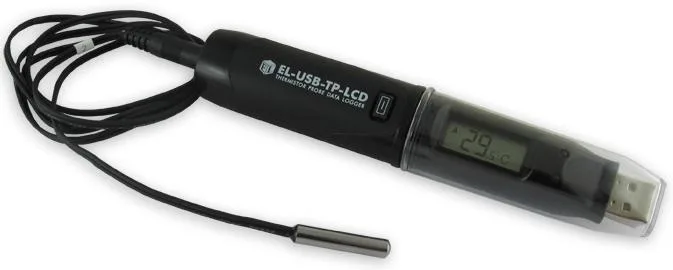

EL-USB-TP-LCD. Thermistor Temperature data logger with built in LCD display and USB port for downloading the data. Each logger is supplied with a 1.0m type 2 thermistor probe for a measurement range of -40 to +125°C. Logger is only suitable for use with thermistor probes using a 3.5mm jacket socket/plug connection, memory for 32,510 temperature readings. The button allows the operator to cycle through the current temperature plus the max and min logged temperatures. The replaceable internal battery is a long-life lithium battery which will last for up to 6 months.
MORE INFO
Add to basket

EL-USB-VAC

£133.25

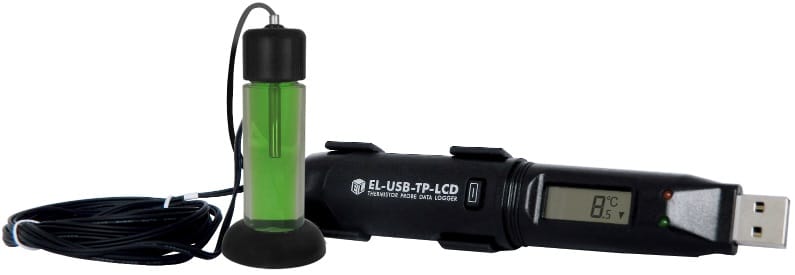

EL-USB-VAC Data Logger for Vaccines with a thermistor temperature probe immersed in a Glycol solution. The data loggers include a built-in LCD display and USB port for downloading the data. Each logger is supplied with a 3m thermistor probe and Glycol filled bottle. Temperature range -40 to +100°C. The button allows the operator to cycle through the current temperature plus the max and min logged temperatures. The replaceable internal battery is a long-life lithium battery which will last for up to 6 months. These loggers are supplied with a calibration certificate.
MORE INFO
Add to basket
