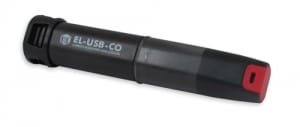

The EL-USB-CO is a USB data logger that measures and stores up to 32,510 Carbon Monoxide (CO) readings over a 0 to 1000 ppm (EL-USB-CO300 0 to 300ppm) measurement range. Loggers have an integrated USB port that can be plugged directly into a PC for configuration and downloading the logged data. Each logger is supplied with a battery and EasyLog USB control software, which allows logged data to be graphed, printed and exported to other applications. The internal battery is a replaceable long-life lithium battery which will last for a maximum of 3 months, whilst the CO sensor will last up to 4 years.
Features
Specifications
| Data Logger | EL-USB-CO | EL-USB-CO300 |
| Measurement Range | 3-1,000ppm | 0-300ppm |
| Accuracy (Typical) | ±6ppm | ±4ppm |
| Dimensions | 26.4 x 26.4 x 125mm | |
| Operating Temperature Range | -10 to +40°C | |
| Operating Pressure Range | 900-1100 mBar | |
Each logger is supplied with a battery and EasyLog USB control software. Logged data is stored in a non-volatile memory and is not lost when the battery is removed or has ran down. A bright red LED will flash and a buzzer can sound when a preset warning level has been exceeded. The software allows the user to configure the following parameters: Logger name; Logging rate; Warning/alarm levels; and start and stop date and time. The software also allows downloaded data to be graphed, printed and exported to other applications.
These loggers are designed to record Carbon Monoxide gas levels for later analysis and are not designed to be used as a warning device.
EL-USB-CO
£79.98
EL-USB-CO300
£79.98
