Description

Features

• 4-20mA Current Loop Measurement Range
• Logging Rates of 1s, 10s, 1m, 5m, 30m, 1hr, 6hr and 12hr.
• Stores 32,510 readings,
• Connection via two screw terminals, units supplied with leads terminated in crocodile clips.
• USB Interface for Set-up and Data Downloading
• User Programmable Alarm Thresholds
• Red and Green LEDs indicate logger status
• Replaceable Internal Lithium Battery and replaceable end cap

This standalone data logger measures and stores over 32,000 current loop readings over a 4-20mA measurement range. The user can easily set up the logging rate and start time, and download the stored data by plugging the data logger into a PC’s USB port and running the purpose designed software under Windows Vista, 7, 8 & 10. The data can then be graphed, printed and exported to other applications. The data logger is supplied complete with a long-life lithium battery. Correct functioning of the unit is indicated by a flashing red and green LED. The data logger features a pair of screw terminals and is supplied complete with a set of measurement leads terminating in crocodile clips.

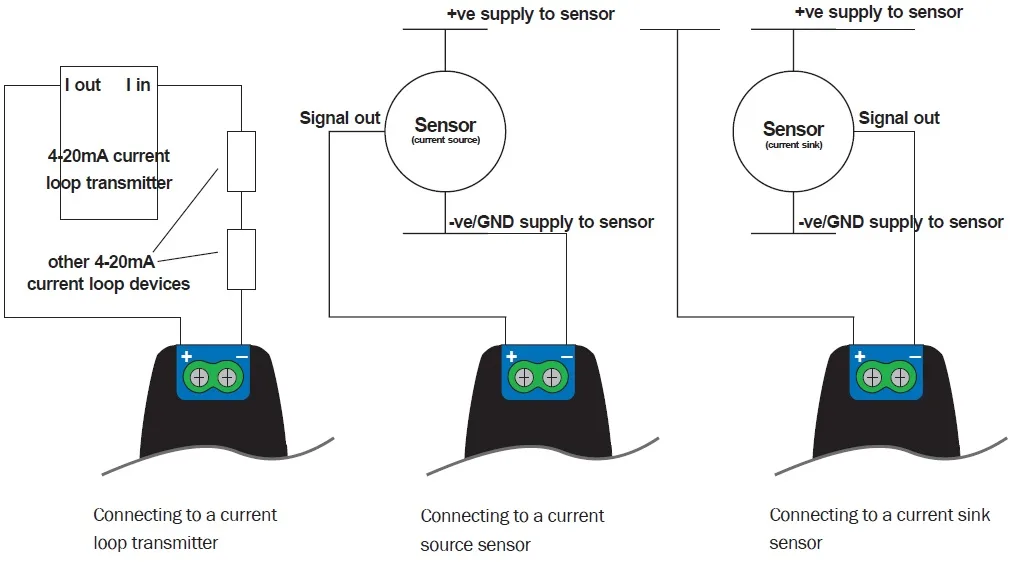

Connection Diagram

EasyLog USB Software

The EasyLog USB control software is available as a free download from here. The software is easy to install and use, plus is compatible with 32-bit and 64-bit versions of Windows 7, 8 and 10. The software is used to set up the logger, alarms, download, graph and annotate data or export in Excel, PDF and jpeg formats. It is also possible to set the alarm to remain active, even if the reading has returned to normal, in which case the alarm LED will continue to flash red. This ‘Hold’ feature in the software ensures the user is notified that at some point an alarm level has been exceeded, without needing to download the data.

The software allows the following parameters to be configured:

• Logger name
• Logging rate (user selectable between 1 seconds and 12 hours)
• High and low alarms
• Immediate and delayed logging start
