Description

Features

  • -18 to +55°C (-0.4 to +131°F) temperature measurement range
  • 0 to 100%RH humidity measurement range (relevant models, see table)
  • 300 to 1200mbar pressure measurement range (relevant models, see table)
  • Stores over 1,000,000 readings
  • No software to install – configure using your normal web browser
  • Use with a PC or Mac
  • Display shows current, maximum and minimum readings
  • Status and alarm indicators
  • On-board alarm sounder (relevant models, see table)
  • Data can be uploaded to the EasyLog Cloud

Applications

  • Facilities and building management
  • Logistics
  • Warehouses and storage
  • Clean rooms and other pressure sensitive environments
  • Offices
  • Domestic buildings

Specification

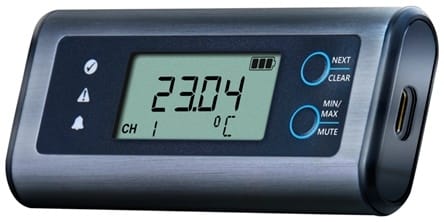

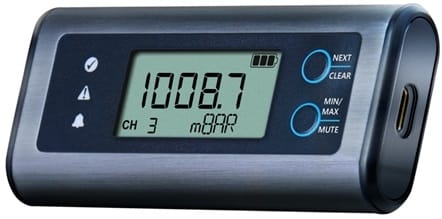

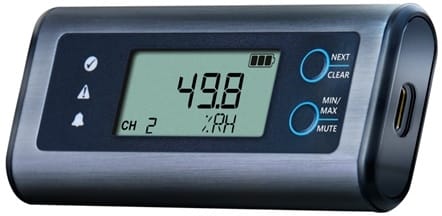

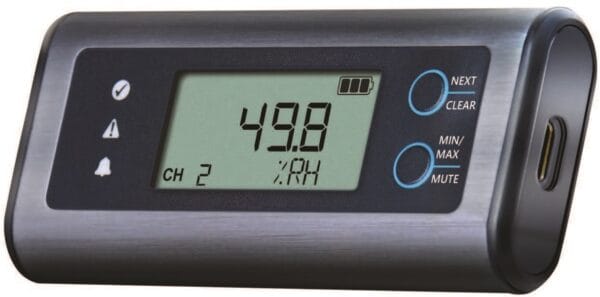

Part No EL-SIE-1 EL-SIE-1+ EL-SIE-2 EL-SIE-2+ EL-SIE-6+
Temp Range -18 to +55°C (0.4 to 131F)
Temp Resolution 0.01°
Temp Accuracy ±0.2°C ±0.1°C ±0.3°C ±0.2°C ±0.2°C
Humidity Range N/A 0 to 100%RH 0 to 100%RH 0 to 100%RH
Humidity Resolution N/A 0.1%RH 0.1%RH 0.1%RH
Humidity Accuracy (0-80%RH) N/A ±2%RH ±1.5%RH ±1.5%RH
Pressure Range N/A N/A 300 to 1200mBar
Pressure Resolution N/A N/A 0.01mBar
Pressure Accuracy N/A N/A ±1mBar



Logging Rate: 10 secs to 24 Hours, user selectable
Internal Memory: 1,000,000 Million Readings
Start Modes: Immediate, push to start, triggered start, parameter triggered
Power Source: 2 x AAA 1.5V Batteries
Battery Life: >1 Year (25°C with 10 mins logging rate)
Logger Dimensions: 93 x 42 x 17mm (Excluding bracket)
IP Rating: IP4X
