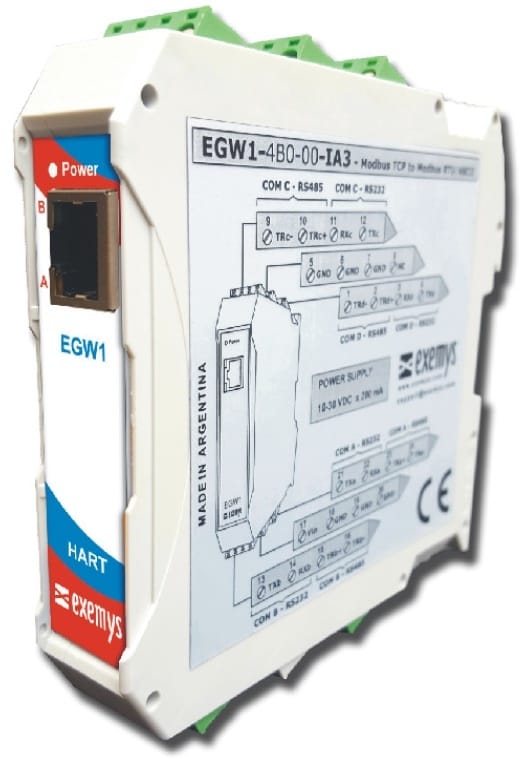

EGW1-IA3-MB-HT HART to Modbus Protocol Converter

EGW1-MB-HT HART to Modbus TCP, RTU and ASCII Converter

The EGW1-IA3-MB-HT module is used to connect any industrial equipment with a HART protocol to a Modbus TCP, RTU or ASCII protocol. Allowing HART data to be collected by a Modbus network or  transmitted across an Ethernet connection using Modbus TCP. An EGW1-MB-HT unit can be used to connected a HART network to an RS232, RS485 Modbus devices, plus a Modbus TCP/IP Ethernet network using up to 16 simulataneous connections.

View Options

Need help finding the right product?

CONTACT US

Description

Features

  • Modbus protocols TCP, RTU or ASCII.
  • Up to 16 simultaneous Modbus TCP connections.
  • Modbus RS232 Port slave
  • Modbus RS485 slave port optoisolated independent of the RS232.
  • TCP/IP Modbus port
  • 1 HART Port
  • Installation and configuration by Web browser.
  • Software to search for Exemys devices in the network.
  • DIN Rail mounting, temperature-resistant Industrial Case.
  • Industrial terminal block connections.
  • Wide range power supply 10 to 30 vDC.



EGW1-MB-HT Network Diagram

Specifications

Network Protocols: Modbus TCP/IP/IP. DNS, HTTP, DHCP, ICMP, ARP.
Network Port:
 Ethernet 10/100 BaseT, RJ45 Connector
Serial Protocol:
 Modbus RTU/Modbus ASCII
Serial Port:
 1 RS232, 1 RS485 optoisolated serial ports via pluggable terminal blocks
Supported Devices:
 Any device with HART protocol
Management: HTTP Server, Password protected
Indicators: Status LED, Data/Link LED
Power Supply: 10 to 30vDC
Current Used: 80mA @ 12vDC or 50mA @ 24vDC
Dimensions: 100 x 22.5 x 112mm (H x W x D)
Operating Temp: -15 to +65°C

Product

Ref

Price

Product Description

EGW1-MB-HT HART to Modbus TCP/RTU/ASCII Converter

EGW1-110-1-IA3-MB-HT

£495.12

EGW1 – HART to Modbus ASCII, RTU, TCP Protocol Converter. 1 HART ports, 1 x RS232, 1 isolated RS485 Serial Port and 1 x Ethernet Port 10/100Mbps. DIN Rail mounted industrial enclosure with terminal blocks. Power supply: 10-30vDC, consumption 80mA @ 12vDC. Dimensions: 100 x 22.5 x 112mm. Operating Temperature: -15 to 65°C.
