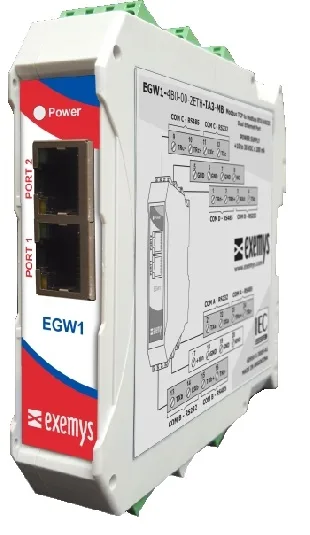

EGW1-2ETH-IA3-MB Modbus TCP Protocol Converter with 2 RJ45 Ports

EGW1-2ETH-IA3-MB – Serial Modbus To Modbus TCP Converter with Dual Ethernet Switch

The EGW1-2ETH module is used to connect any industrial equipment with Modbus RTU or ASCII, to a TCP / IP protocol to transmit data across an two RJ45 Ports. An EGW1-2ETH unit is available 4 RS232/RS485 ports , or a single isolated RS232/485 or RS422 port.

View Options

Need help finding the right product?

CONTACT US

Description

The EGW1-IA3-MB is the latest version of the EGW1-MB Modbus Protocol Converters and allows for the remote connection to Modbus serial devices over an Ethernet connection. This allows remote connection to Modbus serial devices from anywhere in the world via an Ethernet connection. The EGW1-IA3-MB includes a unit with 10 configurable digital I/O channels for remote monitoring and control, without the need for any additional input or output modules. A unit is also available with 4 configurable serial ports with independant configuration

Features

  • Modbus TCP, ASCII, RTU Protocols.
  • Modbus Master or Slave.
  • 2-port Ethernet RJ45 Switch
  • Up to 16 Connections Modbus TCP Simultaneously.
  • Selection of RS232/485/422 by software, up to 115 Kbps.
  • Install and set up via serial, Telnet or a Web Browser
  • Software for searching other devices on the network.
  • DIN Rail mounting, temperature-resistant Industrial Case.
  • Industrial terminal blocks.
  • Wide 10-30vDC Power Supply..

Applications

  • PLC’s and SCADA Systems
  • Industrial Automation
  • Remote Monitoring Systems
  • Access Control and Security Systems

Specifications

Network Protocols: Modbus TCP/IP/IP. DNS, HTTP, DHCP, ICMP, ARP, SNMP.
Network Port:
 Ethernet 10/100 BaseT, RJ45 Connector
Serial Protocol:
 Modbus RTU/Modbus ASCII/Transparent
Serial Port:
 Up to 4 RS232/RS485 serial ports via pluggable terminal blocks
Supported Devices:
 Any device with Modbus RTU, ASCII or TCP
Management: HTTP Server, Password protected. RS232 Serial Console
Indicators: Status LED, Data/Link LED
Power Supply: 10 to 30vDC
Current Used: 70mA @ 12vDC or 40mA @ 24vDC
Dimensions: 100 x 22.5 x 112mm (H x W x D)
Operating Temp: -15 to +65°C

Product

Ref

Price

Product Description

EGW1-4B0-00-2ETH-IA3-MB

£581.10

EGW1 – Serial Modbus ASCII/RTU to Modbus TCP Protocol Converter with Dual Ethernet Switch. 4 x RS232/RS485/RS422 Serial Ports and 2 x RJ45 Ethernet Port. DIN Rail mounted industrial enclosure with terminal blocks. Power supply: 10-30vDC, consumption 70mA @ 12vDC. Dimensions: 100 x 22.5 x 112mm. Operating Temperature: -15 to 65°C.
MORE INFO
Add to basket

EGW1-1C0-00-2ETH-IA3-MB-IS

£471.50

EGW1 – Serial Modbus ASCII/RTU to Modbus TCP Protocol Converter with Dual Ethernet Switch. 1 x RS232/RS485/RS422 Isolated Serial Port and 2 x RJ45 Ethernet Port. DIN Rail mounted industrial enclosure with terminal blocks. Power supply: 10-30vDC, consumption 70mA @ 12vDC. Dimensions: 100 x 22.5 x 112mm. Operating Temperature: -15 to 65°C.
MORE INFO
Add to basket
