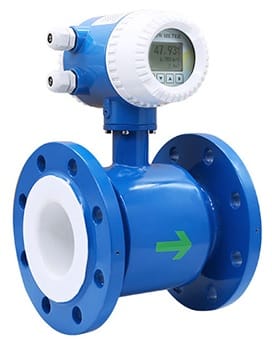

The DTI-EMF Series Electromagnetic Flow Meters are used to monitor the flow of the passing media. Outputs Available: 4-20mA Output Fully Isolated; 2 x Relays with Changeover Contacts Hi/Low 2 x Digital Open Collector Output; 1 x RS485 Modbus RTU. Optional: RS422/RS232 or HART Protocol. Pipe Diameters: 10-1,600mm with line pressures of 10, 16 or 25 Bar. Standard DIN flanges, with ANSI or JIS flanges available on request. Rubber, PTFE or FEP linings and Stainless Steel, Hastelloy, Titanium, Tantalum or Platinum electrode options.
Electromagnetic flow meters are widely used in chemical, steel, coal, mining, oil exploration, petrochemical, paper, environmental protection, sugar, pharmaceutical, food, irrigation, drainage and port dredging applications, They can accurately measure a variety of acid, alkali, salt solution, raw water, cooling water, sewage, coal slurry, slurry, mud, water, mud, pulp, syrup, coal water slurry, corn syrup, fiber pulp, grain syrup, lime, hydrogen peroxide, beer, wort black liquor, green liquor and a variety of beverages and other liquid and solid-liquid two-phase fluid conductive body volume flow.
| Material | Performance | Scope of Application |
| FEP |
1 It has the Unique Corrosion Resistance of PTFE 2. Strong Adhesion to Metal with Excellent Negative Pressure Resistance |
1. Temperature: <160°C 2. Strong Corrosive Media (Acid, Alkali, Salt, etc 3. Health Media 4. Diameter Range: DN10-DN1000 |
| Rubber | 1. Excellent Elasticity, High Strength Breaking Force and Good Abrasion Resistance 2. Resistance to Low Concentration of Acid, Alkali and Salt Corrosion |
1. Temperature: <160°C 2. Water, Sea Water, Sewage, Mud, Pulp. 3. Diameter Range: DN50-DN1600 |
| PTFE |
1. The Chemical Properties are very Stable. It can resist Boiling Hydrochloric Acid, Sulphuric Acid, Nitric Acid and Aqua Regia 2. Poor Wear Resistance and Poor Cohesiveness |
1. Temperature: <160°C 2. Strong Corrosive Media (Acid, Alkali, Salt, etc 3. Health Media 4. Diameter Range: DN25-DN1600 |
| Material | Application |
| 316L Stainless Steel | 1. Water (Domestic, Industrial, Raw, Well and Urban Sewage 2. Weakly Corrosive Acid, Alkali and Salt Solutions |
| Hastelloy B | 1. Non-Oxidizing Acid, such as Hydrochloric Acid (Concentration less than 10%) 2. Sodium Hydroxide (Concentration less than 50% 3. Ammonium Hydroxide Solutions (All Concentrations) |
| Hastelloy C | 1. Nitric Acid (Chromic Acid and Sulphuric Acid Mixed Solutions) 2. Oxidizing Salts (Fe+++ or Cu++) 3. Hydrochloric Acid |
| Titanium | 1. Salts (Chloride, Magnesium Aluminium, Calcium, Iron, (etc) 2. Sodium Salt, Potassium Salt, Hydrochlorite, Sea Water 3. Potassium Hydroxide, Hydroxide Amine, Barium Hydroxide Alkali Solution. (Concentration less than 50%) 4. Acids (Hydrochloric, Sulphuric, Phosphoric, Hydrofluoric and other Reducing Acids |
| Tantalum | 1. Hydrochloric Acid (Concentration less than 40%) 2. Dilute Sulphuric and Concentrated Sulphuric Acid (Excluding Fuming Sulphuric Acid) 3. Chlorine Dioxide, Ferric Chloride, Hypochlorite, Sodium Cyanide, Lead Acetate, etc 4. Nitric Acid (including Fuming Nitric Acid) and other oxidizing Acids. 5. Alkali, Hydrofluoric Acid |
| Platinum | 1. Almost All Acid, Alkali and Salt Solutions (Including Fuming Sulphuric and Fuming Nitric Acids 2. Aqua Regia, Ammonium Salt |
| Tungsten Carbide | 1. Almost All Acid, Alkali and Salt Solutions (Including Fuming Sulphuric and Fuming Nitric Acids 2. Aqua Regia, Ammonium Salt |
DTI-EMF-DN50-HR-PN16
£919.68
DTI-EMF-DN65-HR-PN16
£944.88
DTI-EMF-DN80-HR-PN16
£992.12
DTI-EMF-DN100-HR-PN16
£1,039.37
DTI-EMF-DN125-HR-PN16
£1,133.86
