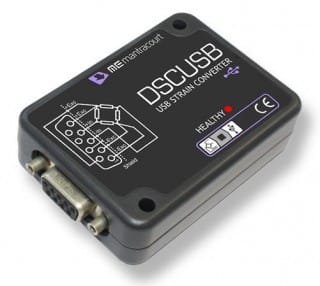

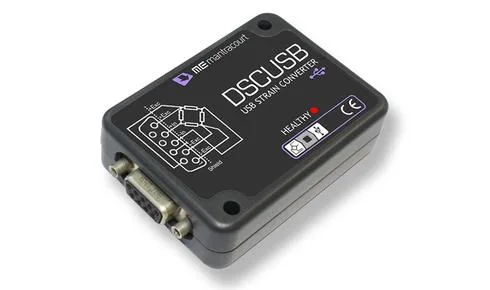

DSCUSB Load Cell Digitiser Module

DSCUSB Load Cell Digitiser Module

The DSCUSB is a compact, high performance digital signal conditioner with USB connectivity suitable for use with load cells and strain gauges. The DSCUSB connects directly to the sensor and PC without the need to use amplifiers, filters or multimeters. Ideal for use with a single or multiple load cells.

View Options

Need help finding the right product?

CONTACT US

Downloads

Datasheet

DSC-USB Load Cell Digitiser Module

Datasheet

DSC-USB-FQ High Speed Digitiser Module

Description

Features

  • High Stability
  • USB interface – load cell appears as virtual com port
  • Simple & easy to connect to your sensor
  • No additional power supply, power drawn from USB connection
  • Supplied with DSCUSB toolkit software
  • Ability to communicate with multiple sensors to a single PC
  • ASCII protocol
  • High speed up to 4,800 readings/second
  • Real mV/V calibration
  • Peak & trough recording
  • IP50 rated enclosure dimensions 71 x 51 x 20 mm

Product

Ref

Price

Product Description

DSC-USB

£302.00

DSC-USB Load Cell Digitiser Module. The DSC-USB is a USB load cell interface designed to convert load cell inputs into a digital USB Serial output, 100 samples per second. It is housed in a rugged plastic enclosure (71 x 51 x 20mm) rated to IP50 with a D9 connector and female micro USB connector. The DSC-USB draws power directly from the PC interface and units are supplied with DSCUSB to USB converter tool kit software and USB to micro USB cable, 1.5m.
MORE INFO
Add to basket

DSC-USB-FQ

£480.00

DSC-USB-FQ High Speed Load Cell Digitiser Module. The DSC-USB-FQ is a USB load cell interface designed to convert load cell inputs into a digital USB Serial output. High speed analysis, 4,800 samples per second. It is housed in a rugged plastic enclosure (71 x 51 x 20mm) rated to IP50 with a D9 connector and female micro USB connector. The DSC-USB-FQ draws power directly from the PC interface and units are supplied with DSCUSB to USB converter tool kit software and USB to micro USB cable, 1.5m.
MORE INFO
Add to basket
