DPT Flow Meter for Fan Control

DPT Flow Meter for Fan Control

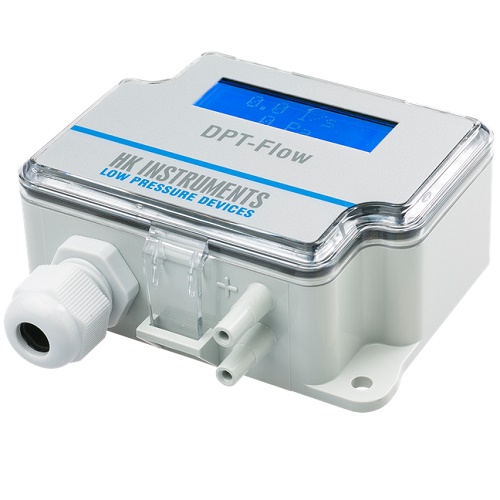

The DPT Flow is designed for centrifugal fans equiped with inlet rings. The air volume flow measurement is based on differential pressure value measured from the fan. Suitable for use with Flkt Woods, Rosenberg, Nicotra, Comefri, Ziehl, Ebm-Papst, Gebhardt branded centrifugal fans.

View Options

Need help finding the right product?

CONTACT US

Downloads

Datasheet

Differential Flow Transmitters - DPT-FLOW

Description

Applications

  • Control the ventilation system via connected EC controller, frequency inverter or other control unit with 0-10 V power supply.
  • Monitoring air volume flow or pressure directly on air handling unit

Features

  • Connect directly on fan or ventilation unit
  • Output signals for differential pressure and air volume flow

Specifications

Power Supply:
 24VDC/VAC ± 10%
Suitable media: Air and non-aggressive gases
Output signals, basic version:



 Vout 0 – 10 VDC, Load R minimum 1kΩ
Pout 0 – 10 VDC, Load R minimum 1kΩ
Temperature Range: -5 to +50°C (-20 to +70°C for storage)
Materials  Housing: ABS
Dimensions: 90,0 x 71,5 x 36,0 mm
Protection: IP54



Product

Ref

Price

Product Description

DPT-FLOW-1000-D

£117.05

DPT-Flow-1000-D – Air Flow and Velocity Transmitter with Display. Designed for Building Management Automation Systems with measurements for Volume Flow, Velocity and Static and Differential Pressures. Power Supply: 24V ±10% @ <1W. Measuring Range: 0 – 1000 Pascals. Accuracy: >125 Pa, ±1%, ±1 Pa and <125 Pa, ±1%, ±2 Pa. Selectable Output: 0-10V or 4-20mA options for Flow or Pressure Readings. Operating Temperature: -20 to +50°C. Backlit Dot Matrix Display. Manual Zeroing with Push Button. IP54 Enclosures with M16 Glands. Dimensions: 90 x 95 x 36mm, Weight 150g.
MORE INFO
Add to basket

DPT-FLOW-1000-AZ-D

£149.18

DPT-Flow-1000-AZ-D – Air Flow and Velocity Transmitter. Designed for Building Management Automation Systems with measurements for Volume Flow, Velocity and Static and Differential Pressures. Power Supply: 24V ±10% @ <1W. Measuring Range: 0 – 1000 Pascals. Accuracy: >125 Pa, ±1%, ±1 Pa and <125 Pa, ±1%, ±2 Pa. Selectable Output: 0-10V or 4-20mA options for Flow or Pressure Readings. Operating Temperature: -5 to +50°C. Backlit Dot Matrix Display. Auto-Zeroing every 10 minutes. IP54 Enclosures with M16 Glands. Dimensions: 90 x 95 x 36mm, Weight 150g.
MORE INFO
Add to basket

DPT-FLOW-2000-D

£117.05

DPT-Flow-2000-D – Air Flow and Velocity Transmitter with Display. Designed for Building Management Automation Systems with measurements for Volume Flow, Velocity and Static and Differential Pressures. Power Supply: 24V ±10% @ <1W. Measuring Range: 0 – 2000 Pascals. Accuracy: >125 Pa, ±1%, ±1 Pa and <125 Pa, ±1%, ±2 Pa. Selectable Output: 0-10V or 4-20mA options for Flow or Pressure Readings. Operating Temperature: -20 to +50°C. Backlit Dot Matrix Display. Manual Zeroing with Push Button. IP54 Enclosures with M16 Glands. Dimensions: 90 x 95 x 36mm, Weight 150g.
MORE INFO
Add to basket

DPT-FLOW-2000-AZ-D

£149.18

DPT-Flow-2000-AZ-D – Air Flow and Velocity Transmitter. Designed for Building Management Automation Systems with measurements for Volume Flow, Velocity and Static and Differential Pressures. Power Supply: 24V ±10% @ <1W. Measuring Range: 0 – 2000 Pascals. Accuracy: >125 Pa, ±1%, ±1 Pa and <125 Pa, ±1%, ±2 Pa. Selectable Output: 0-10V or 4-20mA options for Flow or Pressure Readings. Operating Temperature: -5 to +50°C. Backlit Dot Matrix Display. Auto-Zeroing every 10 minutes. IP54 Enclosures with M16 Glands. Dimensions: 90 x 95 x 36mm, Weight 150g.
MORE INFO
Add to basket

DPT-FLOW-5000-D

£117.05

DPT-Flow-5000-D – Air Flow and Velocity Transmitter with Display. Designed for Building Management Automation Systems with measurements for Volume Flow, Velocity and Static and Differential Pressures. Power Supply: 24V ±10% @ <1W. Measuring Range: 0 – 5000 Pascals. Accuracy: >125 Pa, ±1.5%, ±1 Pa and <125 Pa, ±1.5%, ±2 Pa. Selectable Output: 0-10V or 4-20mA options for Flow or Pressure Readings. Operating Temperature: -20 to +50°C. Backlit Dot Matrix Display. Manual Zeroing with Push Button. IP54 Enclosures with M16 Glands. Dimensions: 90 x 95 x 36mm, Weight 150g.
MORE INFO
Add to basket
