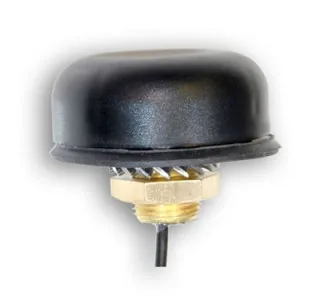

Dome shaped WiFi frequency antenna for mounting to enclosures or vehicles. The WIFIBM is a discrete antenna secured with a rubber seal and through hole threaded nut and the dome shape provides a more aerodynamic profile. This antenna is suitable for use with most WiFi, Bluetooth, 3G and 4G devices with a radio band frequency from 2.4GHz to 2.5GHz. Standard option is 0.5m cable with an SMA connector. Other standard radio connectors and cable lengths are available on request.
A dome shaped antenna is a popular solution for applications where a less obtrusive antenna is required, or where the antenna needs to be more aerodynamic for use in UAV’s or other vehicles. The antenna consists of a radome around the antenna to provide structural and weather protection for the antenna. The material of the radome allows a relatively unattenuated electromagnetic signal between the antenna inside and the outside environment.
The WIFIBM is a WiFi, Bluetooth antenna with a frequency range of 2.4 to 2.5GHz. The antenna is designed to be flush mounted to a surface or enclosure, providing a weatherproof seal. The WIFIBM antenna is ideal for WiFi and Bluetooth devices, making this antenna suitable for use in applications requiring a discrete radio antenna. This antenna can be used with various WiFi and Bluetooth radio devices that use the 2.4 to 2.5GHz frequency bands.
Specifications
| Frequency: | 2.4GHz, Wi-Fi |
| Polarity: | Omnidirectional |
| Gain: | Unity |

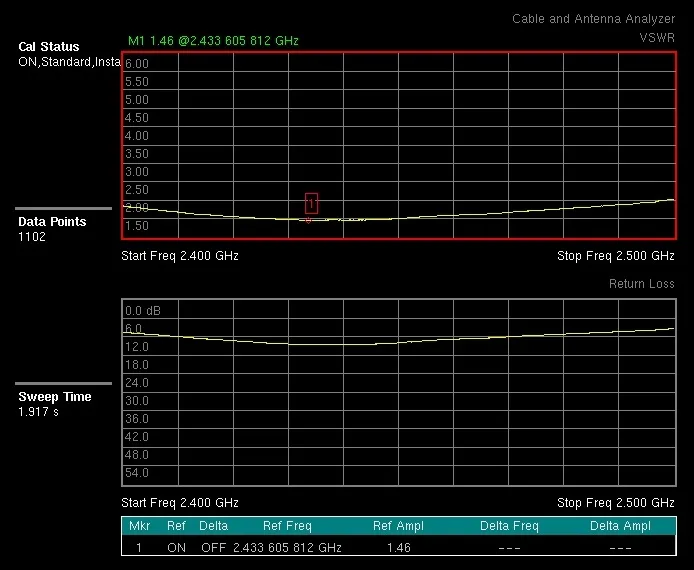

| VSWR: | Better than 1.5 to 1 |
| Dimensions:Â | 18mm height, 50mm diameter |
| Cable: | 0.5m of RG174 or UFL |
| Connector: | as per requirements |
| Power: | 20 Watts |
| Impedance: | 50 Ohms |
Standard cable is 0.5m long and comes fitted with an SMA connector but any standard radio antenna connectors can be fitted with longer cables on request.
