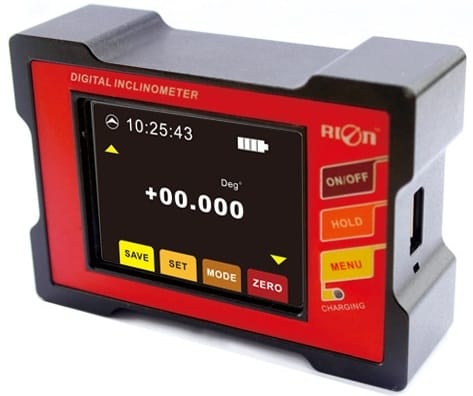

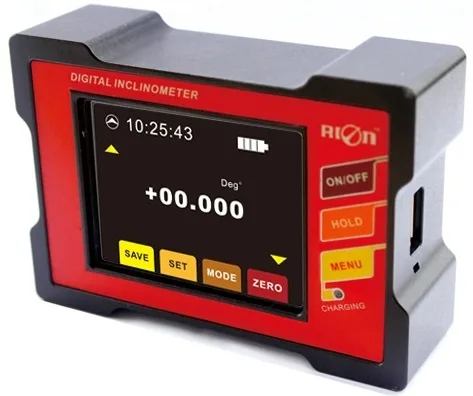

The DMI810 is a single axis inclinometer with USB connection and touchscreen display for real-time inclination monitoring. Units include a built-in rechargeable battery suitable for up to 11 hours standalone operation from 3-4 hours charging, or infinite operation when powered by the USB port. The USB port may also be connected to a laptop or PC for synchronised display and to store data. The housing is a rugged metal with a double magnetic mounting or two screw fixing points. Range ±15° or ±30° with an accuracy of 0.005° and 0.01° respectively and 0.001° resolution.
The DMI810 USB series is a ready to use out of the box inclinometer with no complex configuration or calibration. DMI810 units are fitted with strong magnets on one side and bottom for mounting to metal surfaces for quick mounting and re-positioning, DMI815 has two fixing holes for a secure permanent mounting option. The display and internal rechargeable batteries allow for portable applications and up to 11 hours operation. The inclinometer uses movements in one axis to compensate readings in the main axis during the measurement process to ensure the single-axis accuracy, irrespective of any movement in the other axis.
| Parameters | DMI810-15 | DMI815-15 | DMI810-30 | DMI815-30 |
| Measuring Range | ±15 ° | ±30 ° | ||
| MM measuring Range | 267mm | 577mm | ||
| Measuring Axis | Single axis | |||
| Angle Measuring Accuracy | <0.005 °FS | <0.01 °FS | ||
| Angle Measuring Resolution | 0.001° | |||
| MM Measuring Accuracy | 0.1mm | 0.2mm | ||
| MM Measuring Resolution | 0.02mm | |||
| LCD Visible Area Size | 57.6 x 43.2mm | |||
| Working Temperature | -10 to +70? | |||
| Working Humidity | ≤85%RH | |||
| Power Supply | 3.7V Charging Lithium battery | |||
| Ideal Charging Time | 3-4 hours | |||
| Battery Time | 11 hours (±0.5 hours) | |||
| Connect Plugin | Standard 5-Pin USB connector | |||
| Shock Impact | 10grmsÆ?10«?100Hz | |||
| Weight | 300g | |||
| IP Rating | IP54 | |||
| Mounting Option | Magnetic | Mounting Holes | Magnetic | Mounting Holes |
| Dimensions | 105 x 73 x 27.1mm | |||

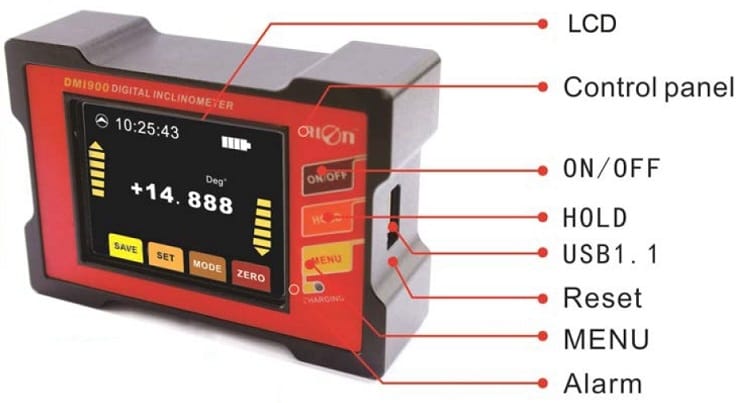

| ON/OFF: | Press for 2 seconds to turn on/off |
| HOLD: | Hold recording data |
| MENU: | Press to toggle onscreen menu buttons |
| MENU&HOLD: | Press MENU & HOLD together to enter onscreen calibration mode. |
| Reset Button: | Press it when the device crashes, or keys no longer operate |
| USB Jack: | Used for recharging, external data transfer to PC |
| Alarm Light: | Lit when recharging, off when charging completed May also be used for user configured alarm levels. |
DMI810-15
£570.84
DMI810-30
£570.84
DMI815-15
£570.84
DMI815-30
£570.84
