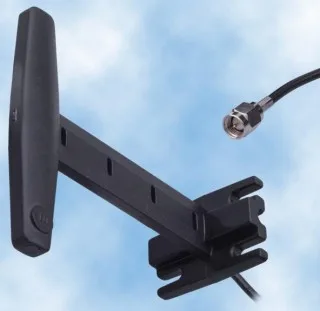

Dipole WiFi frequency antenna for wall mounting with a bracket. The MULTIDIP is an omni-directional dipole antenna suitable for use with most WiFi, Bluetooth, 3G and 4G devices with a radio band frequency from 2.4GHz to 2.5GHz. Standard option is 5m cable with an SMA connector. Other standard radio connectors and cable lengths are available on request.
A dipole (or doublet) antenna is one of the simplest and most widely used type of antenna. A dipole antenna consists of two identical conductive elements orientated on the same axis, which are bilaterally symmetrical. The antenna is omni-directional and radiates equal power in all azimuthal directions perpendicular to the antenna.
The MULTIDIP is a WiFi, Bluetooth antenna with a frequency range of 2.4 to 2.5GHz. The antenna is supplied with an integrated wall bracket for quick mounting. The MULTIDIP antenna is ideal for WiFi and Bluetooth devices, making this antenna suitable for use with the wRemote, wSerial and other radio devices that use the 2.4 to 2.5GHz frequency bands.
Specifications
| Frequency: | 3G, GSM, WiFi |
| Polarity: | Vertical |
| Gain: | 3dbi |

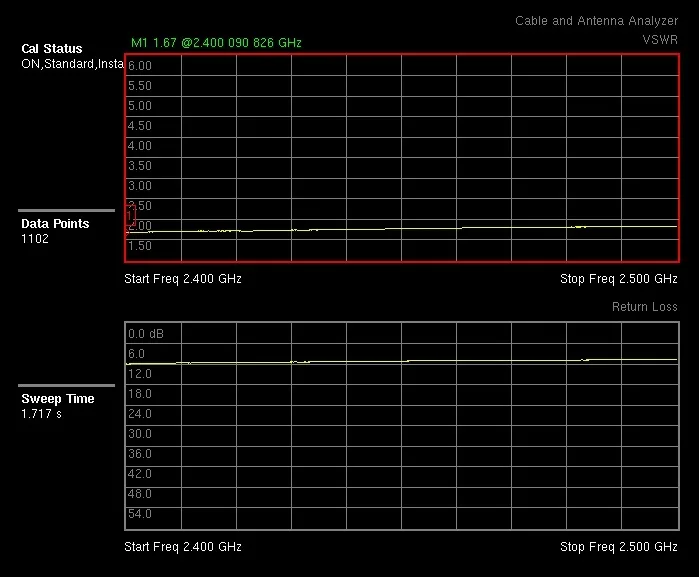

| VSWR: | 1.5 to 1 |
| Dimensions: | 80mm height |
| Cable: | Standard 5m of RG174(others on request) |
| Connector: | As per requirements |
| Power: | 15 Watts |
| Impedance: | 50 Ohms |
Standard cable is fitted with an SMA connector but any standard radio antenna connectors can be fitted on request.
