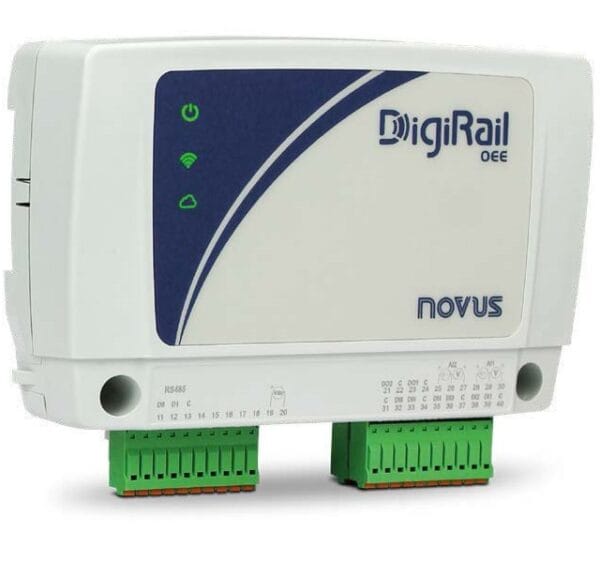

The NOVUS DigiRail OEE is an industrial I/O module for real-time data acquisition in manufacturing environments, directly supporting Overall Equipment Effectiveness (OEE) and Manufacturing Execution Systems (MES) initiatives. Featuring 6 digital and 2 analogue inputs, plus 2 digital outputs for process control. It offers robust connectivity via Ethernet or Wi-Fi, with USB, and RS485 interfaces, utilising standard industrial protocols like MQTT and Modbus TCP. It offers flexible connectivity options to seamlessly integrate with major cloud platforms like Google Cloud, Microsoft Azure, Amazon AWS, and NOVUS Cloud using the MQTT protocol. An internal data buffer ensures data integrity during network interruptions, enabling continuous monitoring and data-driven operational optimization. Available in distinct Ethernet and WiFi versions, i
The NOVUS DigiRail OEE is a versatile input/output (I/O) module specifically engineered for industrial applications centered on Overall Equipment Effectiveness (OEE) and Manufacturing Execution Systems (MES), aligning with Industry 4.0 demands. This device transforms raw production data into actionable insights for real-time monitoring and waste reduction. Available in distinct Ethernet and WiFi versions, it offers flexible connectivity options to seamlessly integrate with major cloud platforms like Google Cloud, Microsoft Azure, Amazon AWS, and NOVUS Cloud using the MQTT protocol, enabling both cloud-based analysis and decentralized production control.
DigiRail OEE has the main industrial approvals, in order to assure monitoring reliability in harsh environments. Its internal memory buffer capability grants data retention and integrity in an eventual downlink, keeping the data logging seamlessly.
Provided with secure MQTT protocol, DigiRail OEE transmits data natively to Google Cloud, Microsoft Azure, Amazon AWS, NOVUS Cloud, or any other compatible IoT cloud platform.
System diagnosis and maintenance become very easy thanks to the remote configuration and viewing functions. DigiRail OEE allows to send MQTT and Modbus TCP commands to read status and to set device parameters.
NXperience software provides a user-friendly configuration interface, allowing input simulation and output forcing, locally through USB port and remotely through Modbus TCP.
| Inputs | 6 Digital, 2 Analogues | Communication Interface | USB |
| Outputs | 2 Digital | Ethernet: 10/100 Mb/s or | |
| Analogue Signals | 0-5V, 0-10V, 0-20mA and 4-20mA | Wi-Fi 802.11 b/g/n 2.4 GHz | |
| Digital Signals | NPN, PNP, and Dry Contact | RS485 | |
| Analogue Input Impedance | mA: 15Ω + 1.5V | Software | NXperience |
| V: 1 MΩ | Power Supply | Voltage: 10 to 36vDC | |
| Analogue Resolution | Analogue Inputs: 15 bits (65.000 levels) | Wi-Fi Model | Typical Consumption: 70mA @ 24V |
| Digital input Features | Logical Level “0” < 0.5V; Logical Level “1” > 3V | Maximum Consumption: 160mA @ 12V | |
| Maximum Voltage : 30V | Ethernet Model | Typical Consumption: 50mA @ 24V | |
| Input Impedance: 270kΩ | Maximum Consumption: 120mA @ 12V | ||
| Input Current: @ 30vDC (typical) 0.15mA | Operation Conditions | Temperature: -20 a 60° C (-4 to 140°F) | |
| Maximum Frequency (Square Wave): | Humidity: 5 to 95% RH, non-condensing | ||
| Dry Contact: 10Hz | Battery | CR2032 for internal clock retention | |
| PNP: 3kHz, NPN: 3kHz | Assembly | DIN rail or screw mounting | |
| Minimum Pulse Duration | Dry Contact: 50ms | Degree of Protection | IP20 |
| PNP: 150µs; NPN: 150µs | Enclosure | ABS + PC | |
| Digital Output Characteristics | 2 NPN Digital Outputs | Buffer Capacity | 1800 logs with all inputs enabled |
| Maximum Current That Can Switch The Outputs 700mA | 7000 logs with 1 input enabled |
