DigiRail Connect Modules

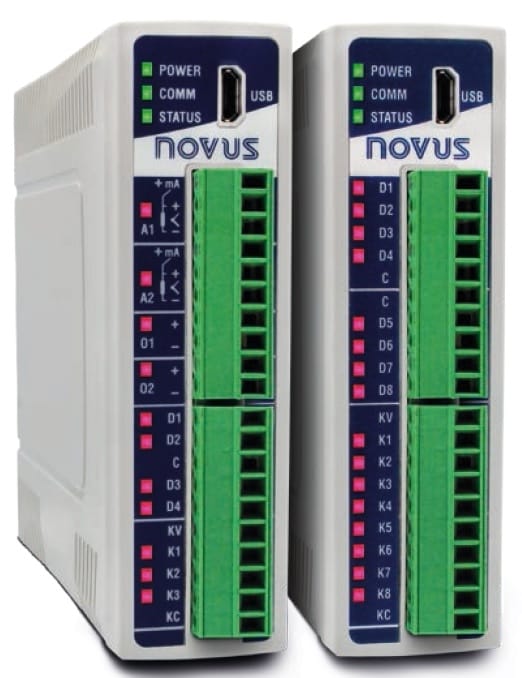

DigiRail Connect – Ethernet I/O Module

The DigiRail Connect has eight models with five different channel types: digital input channels; analogue input channels; digital output channels; relay output channels; and analog output channels. The connectivity of DigiRail connect allows it to be used as slave Modbus RTU device in RS485 networks or as a server Modbus TCP device under Ethernet network. The configuration of the DigiRail Connect module can be performed using the NXperience configuration software, which allows you to define the functions and mode of operation of the input and output channels and the communication ports. In addition, NXperience allows you to force values into the analog and digital inputs and outputs and perform analysis of information about the Ethernet interface and the device. Specially designed for harsh environments, DigiRail Connect complies with the main EMC and EMI standards, providing robustness and reliability for industrial applications.

View Options

Need help finding the right product?

CONTACT US

Description

Features

  • Universal Analogue inputs (Thermooouples, RTD’s, NTC, 0-60mV, 0-5V, 0-10V, 0-20mA, 4-20mA)
  • Digital Inputs (Dry Contact, NPN, PNP)
  • Analogue Outputs (0-20mA, 4-20mA, 0-10V)
  • Digital Outputs (Transistor and Relay Outputs)
  • Ethernet Modbus TCP
  • RS485 Modbus RTU
  • USB Configuration
  • DIN Rail Mountable
  • Robust and Reliable for Industry

Specifications

Input Channels: RAMIX Models: 4 Digitals and 2 Analogues
DMIX Models: 8 Digitals
Output Channels: RAMIX Models: 3 Digitals or 2 Relays and 2 Analogues
DMIX Modules: 4 Relays or 8 Digitals
Analogue Input:



 Input Signal: Thermocouples J, K, T, N, E, R, S, B, PT100, PT1000, NTC,
0-60mV, 0-5V, 0-10V, 0(4)-20 mA.
Accuracy: Thermocouples:0.2%; PT100, PT1000, NTC, mA, V, mV: 0.15%
Thermocouple CJC: J, K, T: ±1°C; N, E, R, S, B: ±3°C.
Resolution: 16 Bits (65536 divisions)
Digital Input: Logic Levels: “0”: <0.5V, “1”: >3V
Input Impedance: 270kΩ
Max Voltage: 30vDC @ 0.15mA
Maximum Frequency (Square Wave): Dry Contact: 10Hz; PNP/NPN: 250Hz
Minimum Pulse Duration: Dry Contact: 50ms; PNP/NPN: 4ms.
Transistor Output: Transistor Outputs  (Sourcing). 6-30vDC @ 500mA Max.
Relay Output: 240vAC, SPDT @ 6A and SPST-NO @ 3A
Analogue Output: 0(4)-20mA, 0-10V with 12 bit Resolutions and 0.5% Accuracy
Communications Interface: USB, RS485 and Ethernet 10/100Mb/s, IEEE Standard 802.3u
Configurator Software: NXperience (via USB port)
Power Supply: 10-36vDC @ 20mA Typical (5W Max)
Housing: ABS and Polycarbonate, IP20.
Dimensions: 100 x 30 x 110mm
Operating Conditions: -20 to +60°C, 5-95%RH Non-condensing

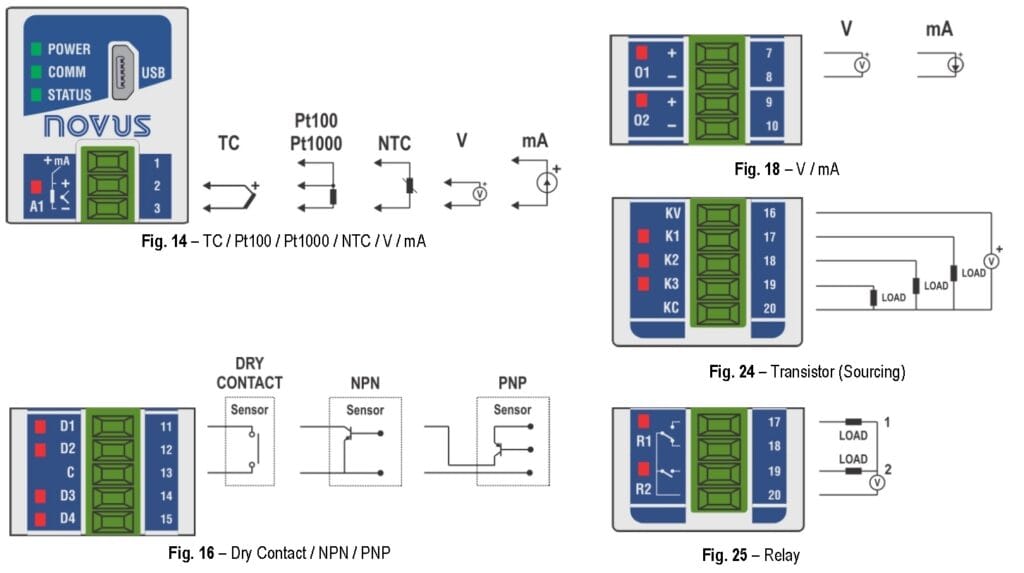

DigiRail Connect Wiring Diagrams



Product

Ref

Price

Product Description

8811612420

£157.50

DigiRail Connect DMIX Ethernet I/O Module. 8 Digital Inputs: High Logic Level (1): >2.2V, Low Logic Level (0): <1.5V; Pulse Counter; Digital State (NPN, PNP or dry contact). 8 Transistor Sourcing Digital Outputs, Actuation Modes:: Logical State; Pulse Duration; or Pulse Train. Power Supply 10-36vDC. Modules are DIN Rail mountable with a working temperature of -20 to 60°C. Dimensions: 100 x 30.8 x 110.2mm. RJ45 Ethernet Connection, Micro USB and RS485 Modbus Terminals. NXperience software allows you to configure and analyze DigiRail Connect data via USB and Ethernet interface, available as a free download.
MORE INFO
Add to basket

8811612440

£157.48

DigiRail Connect DMIX Ethernet I/O Module. 8 Digital Inputs: High Logic Level (1): >2.2V, Low Logic Level (0): <1.5V; Pulse Counter; Digital State (NPN, PNP or dry contact). 4 Relay Outputs: 240vAC, 2 x SPST-NO @ 3A & 2 x SPDT @ 6A. Power Supply 10-36vDC. Modules are DIN Rail mountable with a working temperature of -20 to 60°C. Dimensions: 100 x 30.8 x 110.2mm. RJ45 Ethernet Connection, Micro USB and RS485 Modbus Terminals. NXperience software allows you to configure and analyze DigiRail Connect data via USB and Ethernet interface, available as a free download.
MORE INFO
Add to basket

8811611420

£185.20

DigiRail Connect RAMIX Ethernet I/O Module. 2 Analogue Inputs: Thermocouples (Type J, K, T, N, R, S, B, E); PT100; PT100; NTC; 0-60mV; 0-(5)10vDC; or 0(4)-20mA. 4 Digital Inputs: High Logic Level (1): >2.2V, Low Logic Level (0): <1.5V; Pulse Counter; Digital State (NPN, PNP or dry contact). 2 Analogue Outputs: 0-20mA; 4-20mA; or 0-10V. 3 Transistor Sourcing Digital Outputs, Actuation Modes:: Logical State; Pulse Duration; or Pulse Train. Power Supply 10-36vDC. Modules are DIN Rail mountable with a working temperature of -20 to 60°C. Dimensions: 100 x 30.8 x 110.2mm. RJ45 Ethernet Connection, Micro USB and RS485 Modbus Terminals. NXperience software allows you to configure and analyze DigiRail Connect data via USB and Ethernet interface, available as a free download.
MORE INFO
Add to basket

8811611440

£185.20

DigiRail Connect RAMIX Ethernet I/O Module. 2 Analogue Inputs: Thermocouples (Type J, K, T, N, R, S, B, E); PT100; PT100; NTC; 0-60mV; 0-(5)10vDC; or 0(4)-20mA. 4 Digital Inputs: High Logic Level (1): >2.2V, Low Logic Level (0): <1.5V; Pulse Counter; Digital State (NPN, PNP or dry contact). 2 Analogue Outputs: 0-20mA; 4-20mA; or 0-10V. 2 Relay Outputs: 240vAC, SPST-NO @ 3A. Power Supply 10-36vDC. Modules are DIN Rail mountable with a working temperature of -20 to 60°C. Dimensions: 100 x 30.8 x 110.2mm. RJ45 Ethernet Connection, Micro USB and RS485 Modbus Terminals. NXperience software allows you to configure and analyze DigiRail Connect data via USB and Ethernet interface, available as a free download.
MORE INFO
Add to basket
