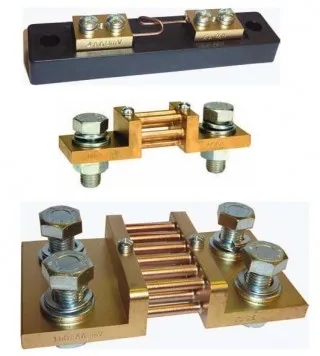

These DIN standard current shunt resistors can be used to measure DC current, providing a proportional 60mV output for DC current ranges from 1 amp to 6,000 amps.
| Rated Primary Current: | 1 to 6000 Amps |
| Accuracy | Class 0.5 |
| Overloads
|
– 1.2 in continuous – 10 in 5 seconds up to 250A – 5 in for 5 seconds from 300 up to 2000A – 2 in for 5 seconds from 2500 to 6,000A |
Insulated base supplied only for units up to 25A
As the shunt dissipates energy it is subject to heating. To avoid over heating it is necessary to clean the contacts ( bar shunt) and tighten bolts firmly.
