The Tinytag Dry Shipper allows the monitoring of products being shipped in cryogenic vessels employing Nitrogen dry vapour, generating low temperatures from evaporating liquid Nitrogen. The disp[ay securely mounts to the flask lid, with the probe extending into the tank via an insulating plug. Large memory capacity of 32,000 readings and 2 programmable, latchable alarms. Logging rate 1 sec to 10 days with min, max & actual readings.
£360.00

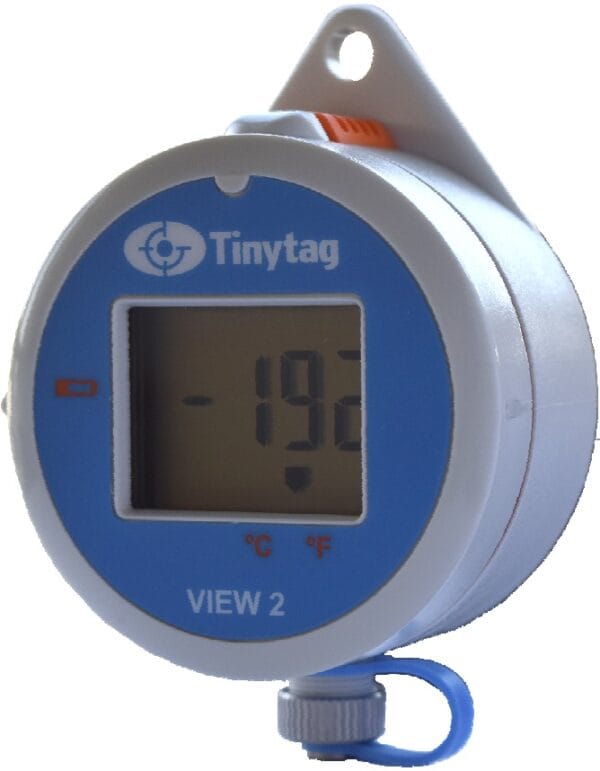

The Tinytag Dry Shipper is a stand-alone, ultra-low temperature data logger, integrating a PT1000 sensor. Specifically designed for cryogenic vessels employing Nitrogen dry vapour generated from evaporating liquid Nitrogen. The Tinytag Dry Shipper accurately monitors temperatures down to -196°C. It is intended for use in dry vapour shipping containers, the preferred method for transporting temperature-sensitive biological materials (eg. gametes, embryos, stem cells, etc) as it avoids direct liquid Nitrogen contact, ensuring sample integrity and thermal stability.
The IP65 rated enclosure of the Tinytag Dry Shipper allows for secure mounting to the flask lid, with the probe extending into the tank via an insulating plug. The integrated digital readout provides immediate temperature information, while the programmable alarms offer crucial visual warnings, if temperature parameters fall outside the user-defined range during transportation.
| Total Reading Capacity | 32,000 readings |
| Memory type | Non Volatile |
| Display | 4 digits + indicators |
| Display Modes | °C or °F |
| Display Refresh Rate | Every 2 seconds |
| Delayed Start | Relative / Absolute (up to 45 days) |
| Stop Options | When full; After n Readings; or Never (overwrite oldest data) |
| Reading Types | Actual, Min, Max |
| Logging Interval | 1 min to 10 days |
| Offload | While stopped or when logging in minutes mode |
| Alarms | 2 fully programmable; latchable |
| Reading Range | -200 to +100°C (-328 to 212°F) |
| Sensor Type | PT1000 (Class B) |
| Logger Resolution | 0.01°C or better |
| Display Resolution | 0.1°C or 0.1°F (1°C/°F below -99.9°C/°F) |
| Temperature Stability | 0.005°C/°C Change from 25°C |
