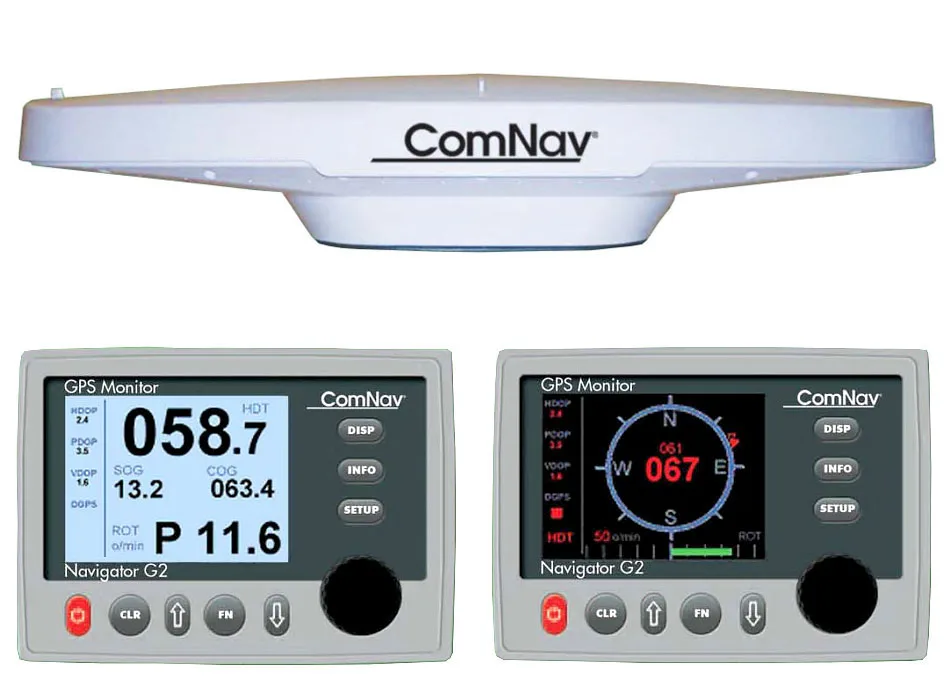

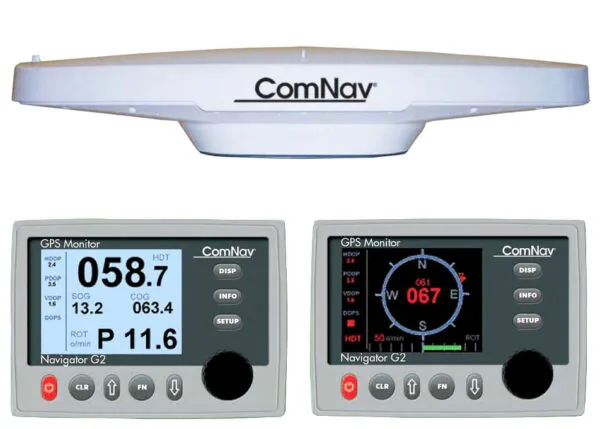

ComNav G2 GNSS Satellite Compass with G2 Navigator Display

The ComNav G2 GNSS Satellite Compass with Navigator G2 Display provides true heading, GPS position data, gyro data and speed log in a single display. The system uses differential GPS to measure heading and therefore is not subject to magnetic variation or deviation. Heading data is transmitted to an autopilot via a standard NMEA0183 data output.

Need help finding the right product?

Downloads

Description

Description

GPS, GYRO & SPEED LOG in a Single Navigation Monitoring System

FEATURES

Crystal clear sunlight viewable TFT color LCD or Silver backed, high contrast monochrome LCD
Simple touch 8 button Keypad
Auto red night vision feature – color LCD
True heading at any global position
Heading accuracy is automatically optimized at any latitude
Heading present in periods of GPS drop outs
RS-232 and RS-422 Serial Ports via Distribution Unit
Optional second display in color or monochrome

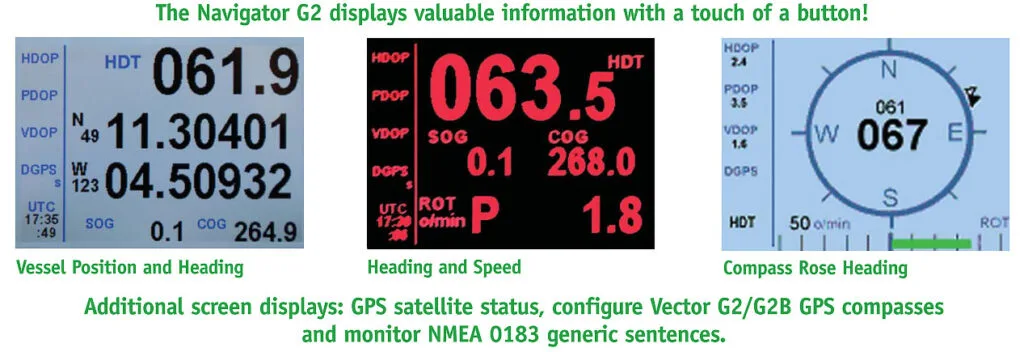

Modes: Display pages include Compass Rose, Heading, Position, Advanced Heading, GPS Monitor, GPS Satellites Status & Auto Setup
CE compliance for EMI and RFI immunity
Universal Mount – Surface, Flush mount or Bracket mount
Waterproof – Display control head to commercial grade IP67 standards
1 Year Warranty

Specifications
Display Unit
Dimensions:	155 x 113 x 29 mm, without knob
Operating temperature range:	-30º to +80º C
Cable length	25′ (7.6M) to Distribution Unit

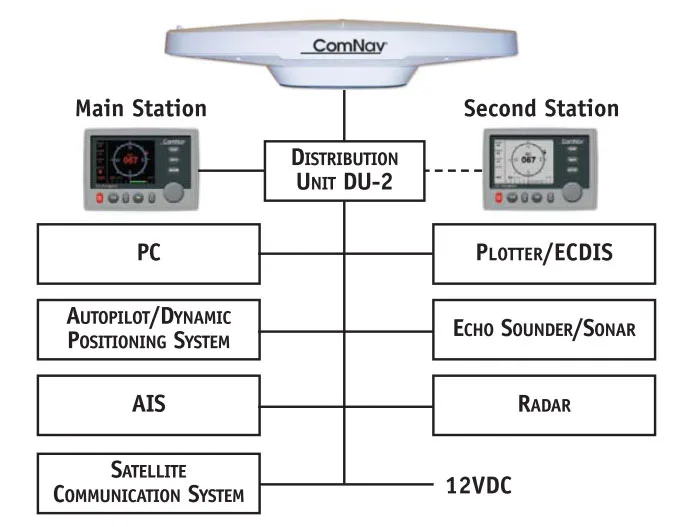

Distribution Unit – DU-2
Dimensions	180 x 120 x 60 mm
Power Voltage	9-12 VDC
Power consumption	0.5 amps average
Operating temperature range	-30º to +80º C
Ports distributed from GPS:	Two RS-232 full duplex and two RS-422 output

GPS Output
Formats	NMEA 0183 GGA, GLL, GSA, GST, GSV, RMC, VTG, HDG, HDT, HDM, ROT, RRE, ZDA; configurable
Clock-data	1PPS
Baud rate	max 4800 – 38400 max
Data update rate	up to 20Hz for heading

Product

Ref

Price

Product Description

10130051B

£3,119.39

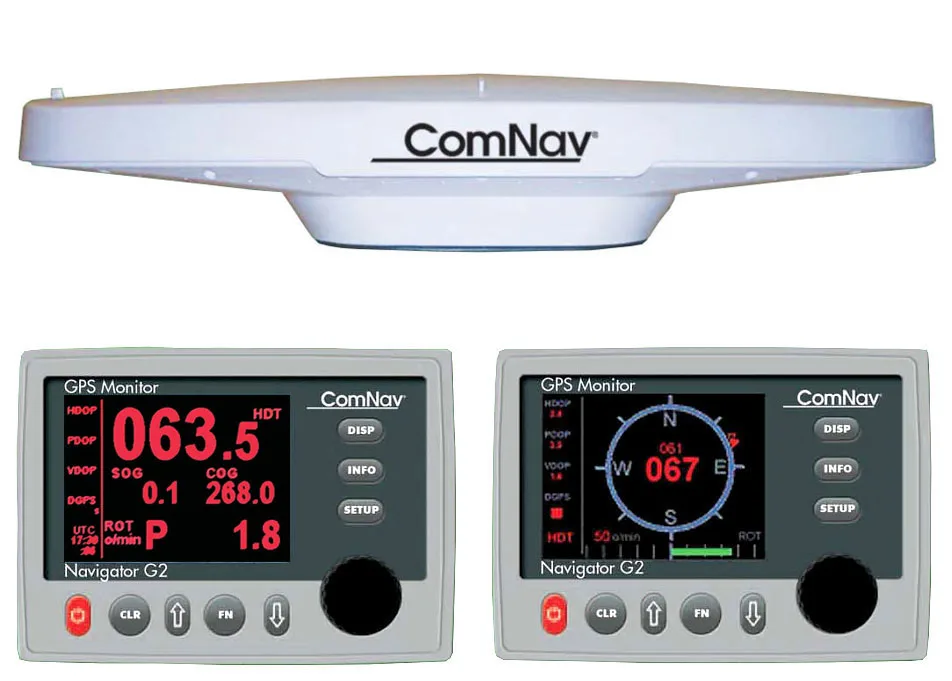

ComNav G2 GNSS Satellite with G2 Compass Differential GPS (DGPS) correction, G2 Navigator Colour Display and 15m cable. Output: NMEA0183. Update rate: Heading & position updates at up to 20 times per second, and can operate at sustained turn rates up to 90° per second. Power Supply 10 to 36vDC (250mA @ 12vDC). The G2B contains a ComNav receiver module (containing two GNSS receivers, a 3-axis gyro, a 3-axis accelerometer and a 3-axis magnetometer), a DGPS Radio beacon receiver module, dual GNSS antennas, an H-field beacon signals antenna and a power supply. Dimensions: 669.8 x 122 x 212.7mm, Weight 2.7Kg. CE certified for EMI and RFI immunity. Worldwide service.

10130052B

£2,950.55

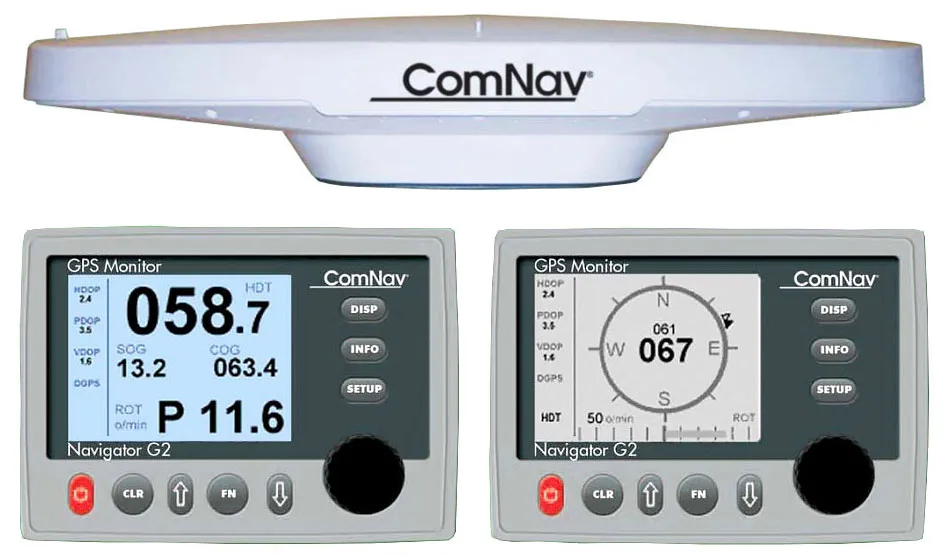

ComNav G2 GNSS Satellite with G2 Compass Differential GPS (DGPS) correction, G2 Navigator Mono Display and 15m cable. Output: NMEA0183. Update rate: Heading & position updates at up to 20 times per second, and can operate at sustained turn rates up to 90° per second. Power Supply 10 to 36vDC (250mA @ 12vDC). The G2B contains a ComNav receiver module (containing two GNSS receivers, a 3-axis gyro, a 3-axis accelerometer and a 3-axis magnetometer), a DGPS Radio beacon receiver module, dual GNSS antennas, an H-field beacon signals antenna and a power supply. Dimensions: 669.8 x 122 x 212.7mm, Weight 2.7Kg. CE certified for EMI and RFI immunity. Worldwide service.

10130053B

£3,203.81

ComNav G2 GNSS Satellite with G2 Compass Differential GPS (DGPS) correction, G2 Navigator Colour Display and 30m cable. Output: NMEA0183. Update rate: Heading & position updates at up to 20 times per second, and can operate at sustained turn rates up to 90° per second. Power Supply 10 to 36vDC (250mA @ 12vDC). The G2B contains a ComNav receiver module (containing two GNSS receivers, a 3-axis gyro, a 3-axis accelerometer and a 3-axis magnetometer), a DGPS Radio beacon receiver module, dual GNSS antennas, an H-field beacon signals antenna and a power supply. Dimensions: 669.8 x 122 x 212.7mm, Weight 2.7Kg. CE certified for EMI and RFI immunity. Worldwide service.

10130054B

£3,034.97

ComNav G2 GNSS Satellite with G2 Compass Differential GPS (DGPS) correction, G2 Navigator Mono Display and 30m cable. Output: NMEA0183. Update rate: Heading & position updates at up to 20 times per second, and can operate at sustained turn rates up to 90° per second. Power Supply 10 to 36vDC (250mA @ 12vDC). The G2B contains a ComNav receiver module (containing two GNSS receivers, a 3-axis gyro, a 3-axis accelerometer and a 3-axis magnetometer), a DGPS Radio beacon receiver module, dual GNSS antennas, an H-field beacon signals antenna and a power supply. Dimensions: 669.8 x 122 x 212.7mm, Weight 2.7Kg. CE certified for EMI and RFI immunity. Worldwide service.
