ComNav G1 GNSS Satellite Compass

ComNav G1 GNSS Satellite Compass

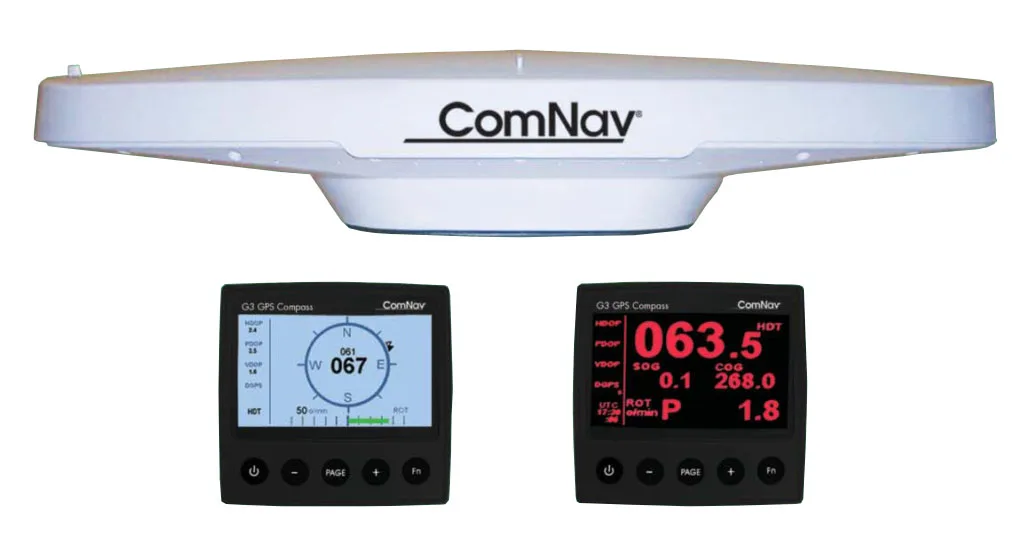

The ComNav G1 GNSS Satellite Compass provides true heading measurement with an accuracy of 0.5° RMS. The system uses differential GPS to measure heading and therefore is not subject to magnetic variation or deviation. Heading data is transmitted to an indicator or autopilot via a standard NMEA0183 or NMEA2000 data output.

View Options

Need help finding the right product?

CONTACT US

Downloads

Datasheet

G1 GNSS Satellite Compass

Description

FEATURES

  • Supports both GPS and GLONASS satellites for complete redundancy
  • Heading accuracy < 0.5° rms
  • Position accuracy < 1.0m 95% confidence (DGPS)
  • An integrated 9 Axis Inertial Measurement Core (IMC technology) provides enhanced roll, tilt and heading stability even during momentary loss of satellite signals

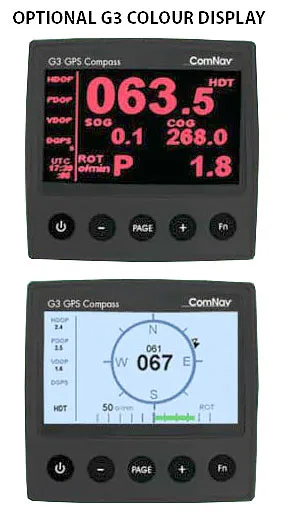

  • G3 color display system (optional)
  • Engineered enhancements to exceed sealed IP67 rating
  • Extended 2 year warranty
  • NMEA 0183 and NMEA 2000® interface
  • Heave, Pitch, Roll and Rate of Turn as standard output
  • Heading updates 1 to 20 Hz
  • BAUD Rate selectable: 4800, 9600, 19200, 38400,115200
  • Fully compatible with on board NMEA 0183 and NMEA 2000® RADAR, ECDIS, AIS, Cameras, SONAR, PC and Autopilots

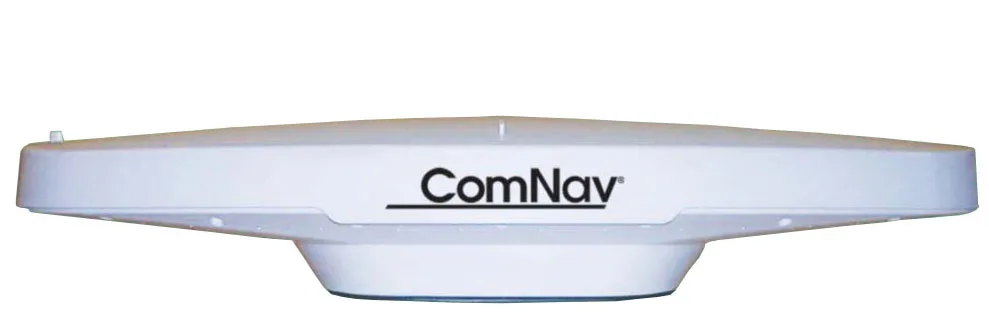

  • Compact integrated surface mounting and pole mount
  • Pre-programmed default settings for Heading, Rate of Turn, Course over Ground, Lat/Long position, Time & Date
  • 15 meter serial cable standard (30 meter optional)
  • 6 meter NMEA 2000® Cable (Optional)
  • CE certified for EMI and RFI immunity
  • Worldwide service



SPECIFICATIONS:
Receiver Type: L1, C/A code, with carrier phase smoothing
Channels: Two x 32 parallel tracking GPS, GLONASS, SBAS Update Rate: Standard 10Hz, Selectable up to 20 Hz (position and heading)
Horizontal Accuracy: < 0.5m 95% confidence (DGPS)* < 2.5m 95% confidence (autonomous, no SA)**
Heading Accuracy: < 0.5° rms
Pitch / Roll Accuracy: < 1° rms
Heave Accuracy: < 30 cm rms
Rate of Turn: 90º / sec max
Start-up Time: < 60 sec typical
Heading Fix: < 10 sec
Satellite Reacquisition: < 1 sec
COMMUNICATIONS
Serial Ports: 1 full duplex R2-232 and 1 full duplex RS-422
Baud Rates: Selectable4800 – 115200
Correction I/O Protocol: RTCM SC-104
Data I/O Protocol: NMEA 0183, NMEA 2000®, CAN
NMEA Heading Messages: $GPHDT, $HEHDT, $HEHDM, $GPROT,$GHEROT, $GPGGA, $GPGSV, $GPVTG, $GPRMC, $GPZDA, $PASHR
ENVIRONMENTAL
Operating Temperature: -32ºC to +74ºC (-25ºF to + 165ºF)
Storage Temperature: -40ºC to +85ºC (-40ºF to + 185ºF)
Humidity: 0 – 95% non-condensing
 EMC:  FCC Part 1.5, Subpart B, Class B, CISPR22, CE
POWER
Input Voltage: 10 to 36 VDC
Power Consumption: ~ 2.8 W nominal
Current Consumption: ~ 240 mA @ 12 VDC
Isolation: Power supply isolated from serial ports
Reverse Polarity Protect: Yes
AIDING DEVICES
Gyro: Provides reliable < 1º Heading for up to 3minutes when loss of GPS has occurred
Tilt Sensor: Assists in fast start up of heading solutions
 * Depends on multipath environment, number of satellites in view, satellite geometry, baseline length (for local services), and Ionospheric activity.
 ** Depends on multipath environment, number of satellites in view, and satellite geometry

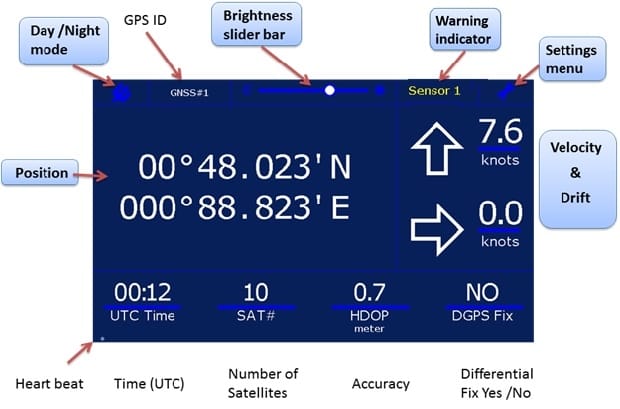

OMC-140 Display Option

Product

Ref

Price

Product Description

11220005

£1,683.37

ComNav G1 GNSS Satellite Compass with 15m cable. Output: NMEA0183. Update rate: Heading & position updates at up to 20 times per second, and can operate at sustained turn rates up to 45° per second. Power Supply 10 to 36vDC (240mA @ 12vDC). The G1 contains a ComNav receiver module (containing two GNSS receivers, a 3-axis gyro, a 3-axis accelerometer and a 3-axis magnetometer), dual GNSS antennas and a power supply. Dimensions: 435.8 x 70.1 x 174.4mm, Weight 1.1Kg. CE certified for EMI and RFI immunity, Worldwide service.
MORE INFO
Add to basket

11220009

£1,759.35

ComNav G1 GNSS Satellite Compass with 30m cable. Output: NMEA0183. Update rate: Heading & position updates at up to 20 times per second, and can operate at sustained turn rates up to 45° per second. Power Supply 10 to 36vDC (240mA @ 12vDC). The G1 contains a ComNav receiver module (containing two GNSS receivers, a 3-axis gyro, a 3-axis accelerometer and a 3-axis magnetometer), dual GNSS antennas and a power supply. Dimensions: 435.8 x 70.1 x 174.4mm, Weight 1.1Kg. CE certified for EMI and RFI immunity, Worldwide service.
MORE INFO
Add to basket

11220008

£1,684.22

ComNav G1 GNSS Satellite Compass with 6m cable. Output: NMEA2000. Update rate: Heading & position updates at up to 20 times per second, and can operate at sustained turn rates up to 45° per second. Power Supply 10 to 36vDC (240mA @ 12vDC). The G1 contains a ComNav receiver module (containing two GNSS receivers, a 3-axis gyro, a 3-axis accelerometer and a 3-axis magnetometer), dual GNSS antennas and a power supply. Dimensions: 435.8 x 70.1 x 174.4mm, Weight 1.1Kg. CE certified for EMI and RFI immunity, Worldwide service.
MORE INFO
Add to basket

10130007

£2,237.18

ComNav G1 GNSS Satellite Compass with G3 Colour Display. Output: NMEA2000. Update rate: Heading & position updates at up to 20 times per second, and can operate at sustained turn rates up to 45° per second. Power Supply 10 to 36vDC (240mA @ 12vDC). The G1 contains a ComNav receiver module (containing two GNSS receivers, a 3-axis gyro, a 3-axis accelerometer and a 3-axis magnetometer), dual GNSS antennas and a power supply. Dimensions: 435.8 x 70.1 x 174.4mm, Weight 1.1Kg. CE certified for EMI and RFI immunity, Worldwide service.
MORE INFO
Add to basket

31220007

£40.52

G1 Pole Mounting Plate (must order 31220012 Kit when ordering separately)
MORE INFO
Add to basket
