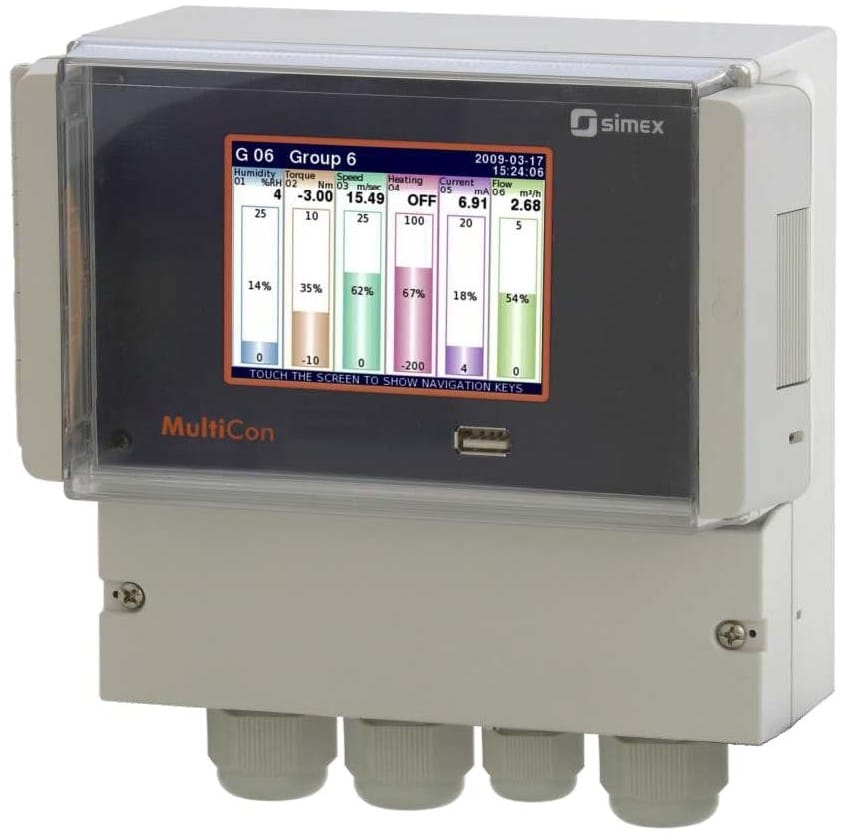

The CMC-N16 is designed to provide the same functionality as the other Multicon CMC units but in an IP65 wall mounted enclosure. The unit has 13 input/output card options but can be more suitable in locations were a panel mounted enclosure may not be possible. The CMC-N16 uses the same LINUX firmware and includes a touchscreen interface and integrates advanced control functions (PID, ON/OFF, time & profiles etc.) and logging of setpoints, excitations and current state of controlled objects. The RS-485 interface with Modbus-RTU protocol is build in the device for basic communication features.
The Multicon CMC-N16 is a powerful and versatile compact multi-channel controller with a capability to record data, if the recording function is requested and activated. Thanks to that it is one of the first industrial devices which integrates advanced control functions (PID, ON/OFF, time & profiles etc.) and logging of setpoints, excitations and current state of controlled objects. Based on Linux firmware, it is stable and the touch screen makes configuration easy and comfortable and data presentation also readable and attractive.
| Power Supply: | 19-50vDC; 16-35vAC or 85-260vAC/DC |
|---|---|
| Power Consumption: | Typical 15VA; Max. 20 VA |
| Display: | 3.5 inch graphic TFT, 16-bit colour, 320 x 240 pixels, with touchscreen |
| Input Type:
|
4 universal inputs max.
2 universal pulse counter / ratemeter
5 digital inputs 24V DC
|
| Input Range: |
0/4…20 mA
0/1…5V, 0/2…10V
-10…25 mV, -10…100 mV, 0…600 mV, ±25 mV, ±100 mV
Pt100, Pt500, Pt1000 (PN-EN): -100…600°C, Pt’50, Pt’100, Pt’500 (GOST): -200…600°C, Ni100, Ni500, Ni1000 (PN-EN): -60…180°C, Cu50, Cu100: -50…200°C, Cu’50, Cu’100 (GOST): -200…200°C
TC K: -200…+1370°C, S: -50…+1768°C, J: -210…+1200°C, T: -200…+400°C, N: -200…+1300°C, R: -50…+1768°C, B: +250…+1820°C, E: -200…+1000°C
0…300Ω, 0…3kΩ
|
| Outputs Type:
|
Depends on configuration:
4 analogue 4…20 mA max.
4 relay 1A/250V max.
4 mixed max. (2 REL / 2 x 4…20 mA, 2 REL / 2 SSR, 2 x 4…20 mA / 2 SSR)
4 SSR passive (OC with PWM) max.
|
| Communication Interface:
|
2 Modbus Ports RS485 RTU
ETE (1 x Ethernet wired via gland to RJ45 built-in connector)
ETEC (1 x Ethernet wired to M12 connector)
ETR (1 x Ethernet wired via gland to RJ45 built-in connector + 2nd RS-485 port)
ETRC (1 x Ethernet wired to M12 connector + 2nd RS-485 port)
|
| Transmission Protocol: |
Modbus RTU / Master
Modbus RTU / Slave
Modbus TCP Server
HTTP
Web Server
NTP
|
| Internal Memory Capacity: | 2GB, Option for 4GB. |
| Operating Temperature: | 0 to 50°C |
| Storage Temperature: | -10 to +70°C |
| Protection Class: | IP65 |
| Case Material: | ABS, Polycarbonate |
| Case Dimensions: | 166 x 161 x 103mm |
| Software: | DAQ Manager software allows visualization of recorded measurements in the form of graphs or tables, collecting results into groups, creating and printing reports and also exporting data to external files. |
The CMC-N16 can be used as a standard multichannel display without logging capabilities or as the full function data logger when supplied with the logger licence key. The licence key maybe purchased at a future date, all we would require is the units serial number to provide the correct licence key to activate the logging functions.
