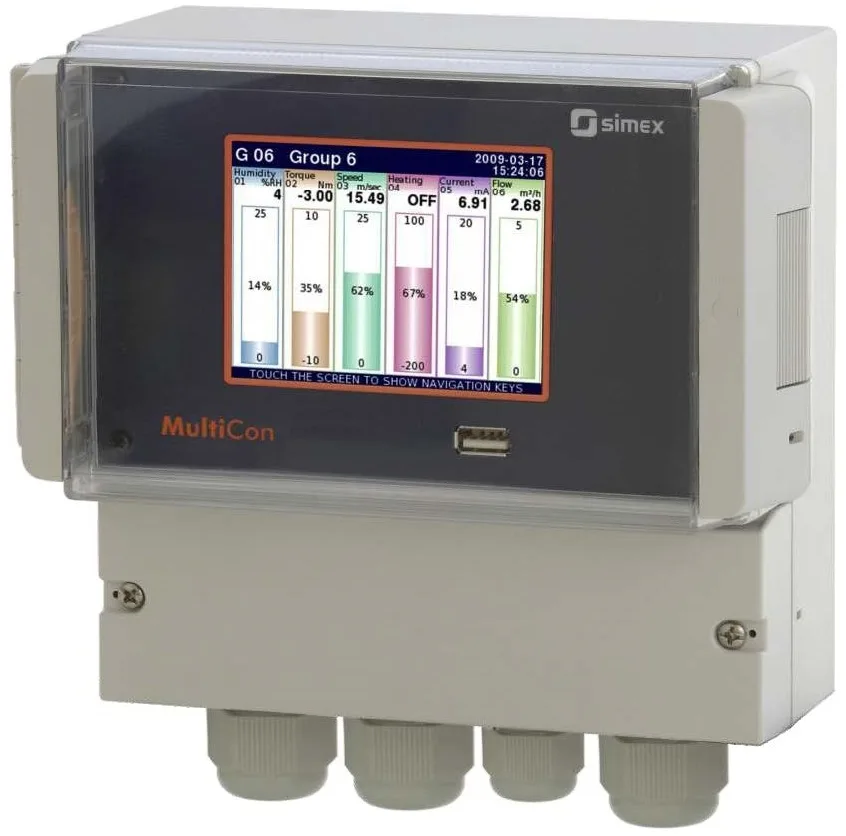

The CMC-N16 is an CMC Multi-Channel Display & Data Logger in an IP65 enclosure. 3.5″ touchscreen display for digital, bar graph and graphical display of process values of up to 4 analogue inputs, 4 relay/SSR outputs and 4 current outputs. An RS485 Modbus RTU interface allows for integration into local Modbus networks. Power supply options of 19-50vDC and 85-260vAC. 2GB Internal logging memory expandable to 4GB. Case Dimensions:166 x 191 x 103mm (including glands). Logging option required additional logger licence key.
.
