Description

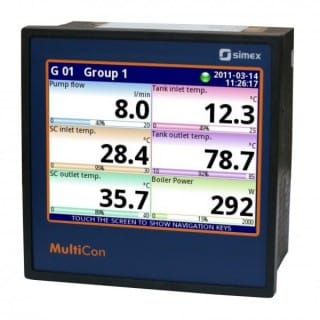

The Multicon CMC-99 is a powerful and versatile compact multi-channel controller with a capability to record data, if the recording function is requested and activated. Thanks to that it is one of the first industrial devices which integrates advanced control functions (PID, ON/OFF, time & profiles etc.) and logging of setpoints, excitations and current state of controlled objects. Based on Linux firmware, it is stable and the touch screen makes configuration easy and comfortable and data presentation also readable and attractive. Although the Multicon CMC-99 is build in quite a small housing, it can integrate up to 48 inputs, and its construction allows user almost free configuration by choosing up to 3 from 16 available input/output modules.

Power Supply: 19-50vDC; 16-35vAC or 85-260vAC/DC
Power Consumption: Typical 15VA; Max. 20 VA
Display: 3.5 inch graphic TFT, 16-bit colour, 320 x 240 pixels, with touchscreen
Measuring Input:


  • 48 Analogue inputs (0-20mA or 0-10V)
  • 48 Digital inputs
  • 24 Thermocouple inputs (Type J, K, S, T, N, R, B, E)
  • 12 RTD inputs
  • 9 Universal inputs (U, I, RTD, TC, mV)
  • 12 Counter inputs
  • 12 Flowmeter/ratemeter inputs
  • 1 x 24vDC Digital input.
  • 60 Virtual channels.
Outputs:


  • 8 Analog (4-20 mA)
  • 16 Relay (1A/250V)
  • 16 SSR driver
  • 4 relay 5A/250V max
  • Sensor supply: 24 V DC ± 5% (Max 200 mA)
Communication Interface:


  • Standard: RS-485 (Modbus RTU), 1 x USB Host, USB Device;
  • Enhanced version (incl. ACM module): 2 x RS-485, 1 x RS-485/232, 1 or 2 x USB Host, 1 x USB Device, 1 x Ethernet 10 MB
Internal Memory Capacity: 2GB.
Operating Temperature: 0 to 50°C
Storage Temperature: -10 to +70°C
Protection Class: Standard version: IP40, IP54 (when fitted with STD-99 transparent door) or IP 65 (front side when an additional frame is fitted);
Case Material: NORYL – GFN2S E1
Case Dimensions: 96 x 96 x 100mm
Panel Cut-out Dimensions: 90.5 x 90.5mm
Software: DAQ Manager software allows visualization of recorded measurements in the form of graphs or tables, collecting results into groups, creating and printing reports and also exporting data to external files.
Installation Depth: min. 102mm

The CMC-99 can be used as a standard multichannel display without logging capabilities or as the full function data logger when supplied with the logger licence key. The licence key maybe purchased at a future date, all we would require is the units serial number to provide the correct licence key to activate the logging functions.

The CMC-99 is now available with a “MultiLevel Access” mode to allow up to 16 independant users, including the administrator. The administrator has full control of the device and can define permission and access for other users.
