Description

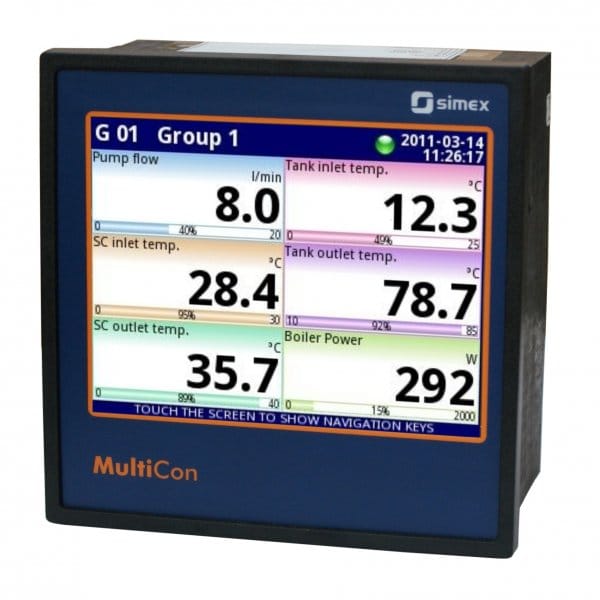

The CMC-141 is a multi-channel display with a built in data logger function accessible via a licence key. The CMC-141 allows for up to 72 analogue inputs (0-20mA, 0-10V) with various input card options for other inputs from Thermocouples, RTDs, pulse or counter inputs, plus a serial interface for Modbus RTU devices. Card options include relay and digital output cards to cover most applications. The CMC-141 includes a 5.7″ TFT touchscreen display for easy programming and access. Case Dimensions:144 x 144 x 100mm. Logging option required additional logger licence key.

The Multicon CMC-141 is a larger version of the CMC-99 with more channels and a larger display. The unit is the same powerful, versatile compact multi-channel controller with a capability to record data, if the recording function is requested and activated. Thanks to that it is one of the first industrial devices which integrates advanced control functions (PID, ON/OFF, time & profiles etc.) and logging of setpoints, excitations and current state of controlled objects. Based on Linux firmware, it is stable and the touch screen makes configuration easy and comfortable and data presentation also readable and attractive. Although the Multicon CMC-141 is built in a standard housing, it can integrate up to 72 inputs, and its construction allows user almost free configuration by choosing up to 3 from 30+ available input/output modules.

The link below takes you to the main CMC-141 page to configure the data logger with the appropriate I/O cards. You can also view the related spares and accessories available for the CMC-141, including the MLP-149 thermal printer.
