Description

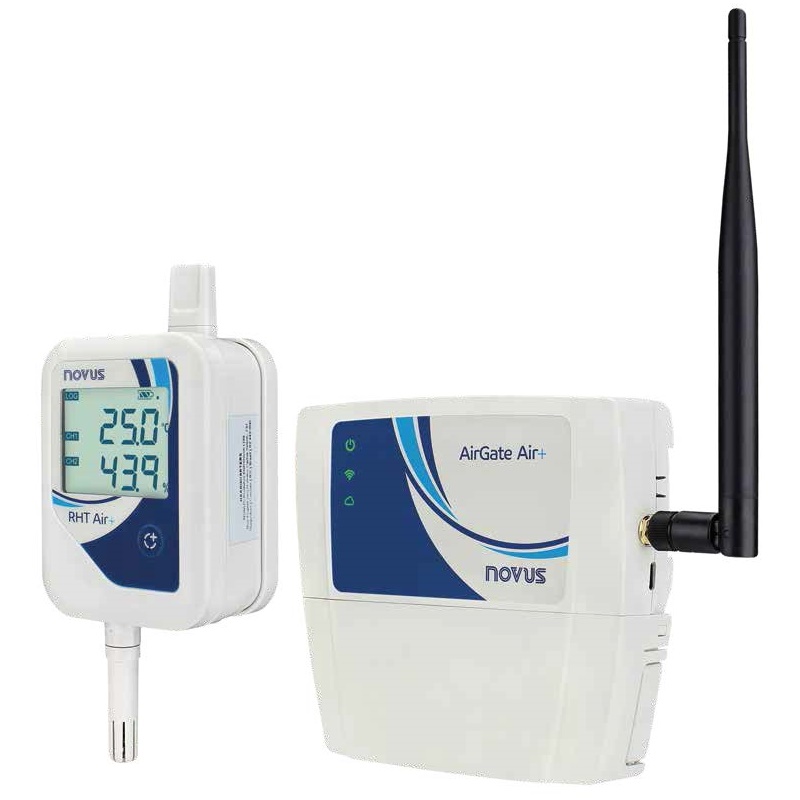

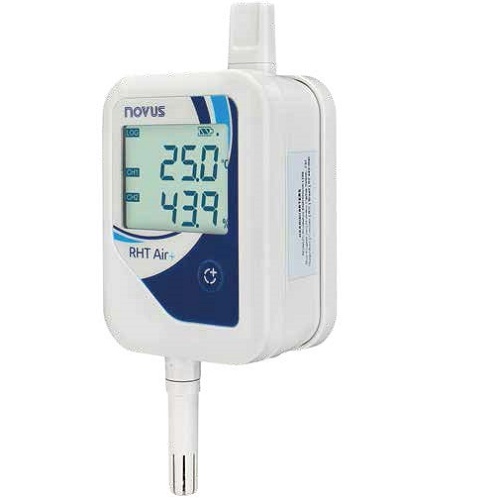

The Climate Air+ is a wireless system designed for continuous monitoring, with RHT Air+ transmitters with an internal memory for up to 16,000 records and AirGate Air+ receiver with an internal memory for up to 480,000 records. The RHT Air+ units include a 2-channel display, and a battery life of up to 2 years, ensuring data integrity even in the event of communication failures.

Features

• Up to 32 RHT Air+ transmitters can be used with each AirGate Air+ gateway
• High Accuracy: ±0.2°C | ±1.9% RH at 25ºC (range from 20% to 70% RH)
• Communication Range: Up to 3km in open field
• Internal Memory: Locally stored records to prevent data loss
• Regulatory Compliance: Complies with FDA 21 CFR Part 11
• Data Security: Protection through proprietary encryption
• Work Temperature: -10 to 70°C (14 to 158°F)
• Certified: by Anatel, FCC, RoHS, and CE

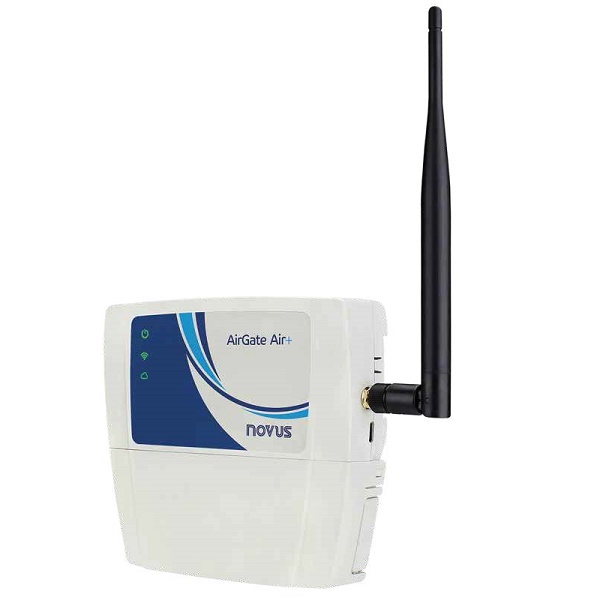

AirGate Air+: Gateway for Scalable Monitoring

The AirGate Air+ is an efficient gateway that allows the connection of up to 32 RHT Air+ sensors, providing a secure and resilient network for remote monitoring.

Features

• Open communication protocols: MQTT, NTP, and Modbus-TCP
• Communication Range: Up to 3km in open field
• Versatile Power Supply: 8 to 30vDC
• International Certifications: Anatel, FCC, RoHS, and CE
• Work Temperature: -10 to 60°C (14 to 140°F)
• Supports up to 32 RHT Air+ sensors in a single network
• Memory buffer for up to 1,024,000 records

Benefits of the Climate Air+ Solution

• Continuous and Reliable Monitoring

Local recording ensures regulatory compliance without data gaps.

• Flexible Installation and Simple Integration

Compatible with open protocols, reducing integration costs.

• Reliable Connectivity in Challenging Environments

LoRa technology overcomes physical barriers and interference.

• Security and Low Maintenance

Data protection through encryption and a battery life of up to 2 years.

Applications of the Climate Air+ Solution

The solution is ideal for companies requiring continuous and secure environmental monitoring, including:

• Pharmaceutical Warehouses: Regulatory compliance for material preservation.
• Data Centers: Environmental control to prevent failures in critical equipment.
• Logistics and Industry: Temperature and humidity monitoring in production and storage.
• Clean Rooms and Laboratories: Strict control of environmental variables for research and production.

Conclusion

The Climate Air+ Solution provides security, scalability, and high accuracy for environments requiring strict temperature and humidity monitoring. With the RHT Air+ and AirGate Air+ devices, your company ensures regulatory compliance, operational continuity, and full environmental control—even in the most challenging conditions.
